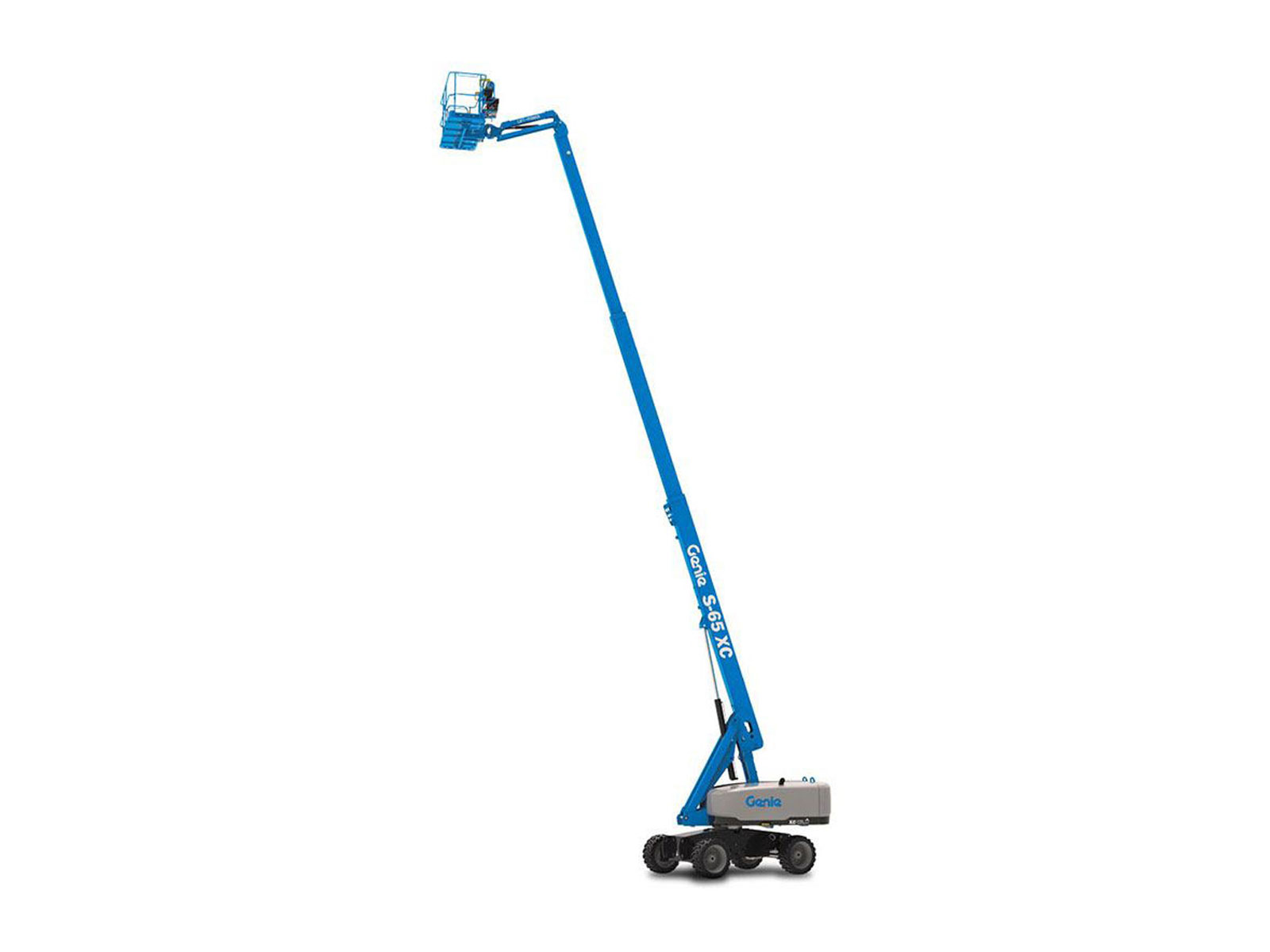

Genie S-65 XC – 21.8m Max Working Height Boom lift
Diesel Powered Telescopic Boom lift
Key Specs
- Max Working Height: 21.81 m | 71.5 ft
- Platform Capacity: 300 kg ~ 454 kg | 660 lb ~ 1000 lb
| Specifications | |
| Max Working Height | 21.81 m |
| Max Platform Height | 19.81 m |
| Max Outreach (horizontal) | 16.51 m |
| Platform Size | 0.91 x 2.44 m |
| Max Platform Capacity | 454 kg |
| Weight | 11,412 kg |
| Power Source | Diesel |
| Stowed Length | 9.76 m |
| Stowed Width | 2.49 m |
| Stowed Height | 2.81 m |
| Ground Clearance | 0.41 m |
Overview
• Full-time active oscillating axle and full-time positive traction for superior terrainability
• Chassis tilt sensor technology maximizes access to hard-to-reach work areas
• 1.52 m (5 ft) robust articulating jib
• Dual lifting capacity of 300 kg (660 lb) and 454 kg (1,000 lb) to lift increased loads and up to 3 operators
• Automatic envelope control technology for a smooth operating envelope
• Zero-load field calibration and onboard diagnostics maximize serviceability
