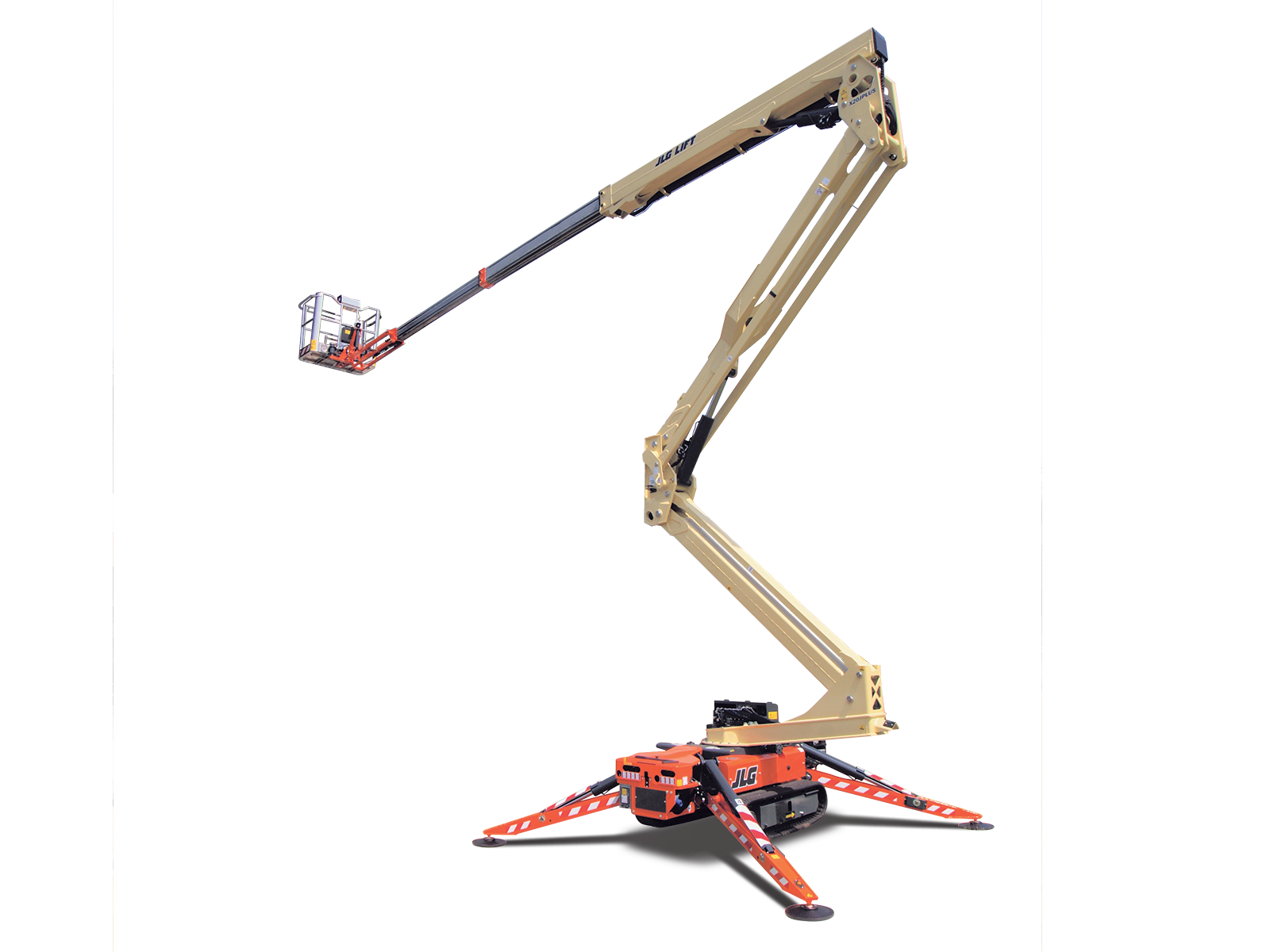

JLG X17J Plus- 16.96m Max Working Height Petrol Boom lift
Bi-Energy Compact Crawler Articulating Boom Lift
Key Specs
- Max Working Height: 16.96 m / 55.6 ft
- Platform Capacity: 230 kg / 507 lb
| Specifications | |
| Max Working Height | 16.96 m |
| Max Platform Height | 14.96 m |
| Max Outreach (horizontal) | 7.5 m |
| Platform Size | 0.69 x 1.34 m |
| Max Platform Capacity | 230 kg |
| Weight | 2,190 kg |
| Power Source | Petrol HONDA iGX 390 8.7 Kw AC electric motor 2.2 KW 50Hz 230V |
| Stowed Length | 4.53 m |
| Stowed Width | 0.80 m |
| Stowed Height | 2.0 m |
| Ground Clearance | – |
- Specialist design: near square out rigger pattern, removable outrigger pads, removable basket and equipped with a crawler carriage allowing it to climb grades up to 28%
- Exceptional flexibility: equipped with an electrical engine as well as a diesel, optional lithium batteries are available. The plus series also offer 230kg unrestricted platform capacity so you can reach more (no work envelope restriction)
- Rentability: forklift housing pockets for easier transport, removable control box
