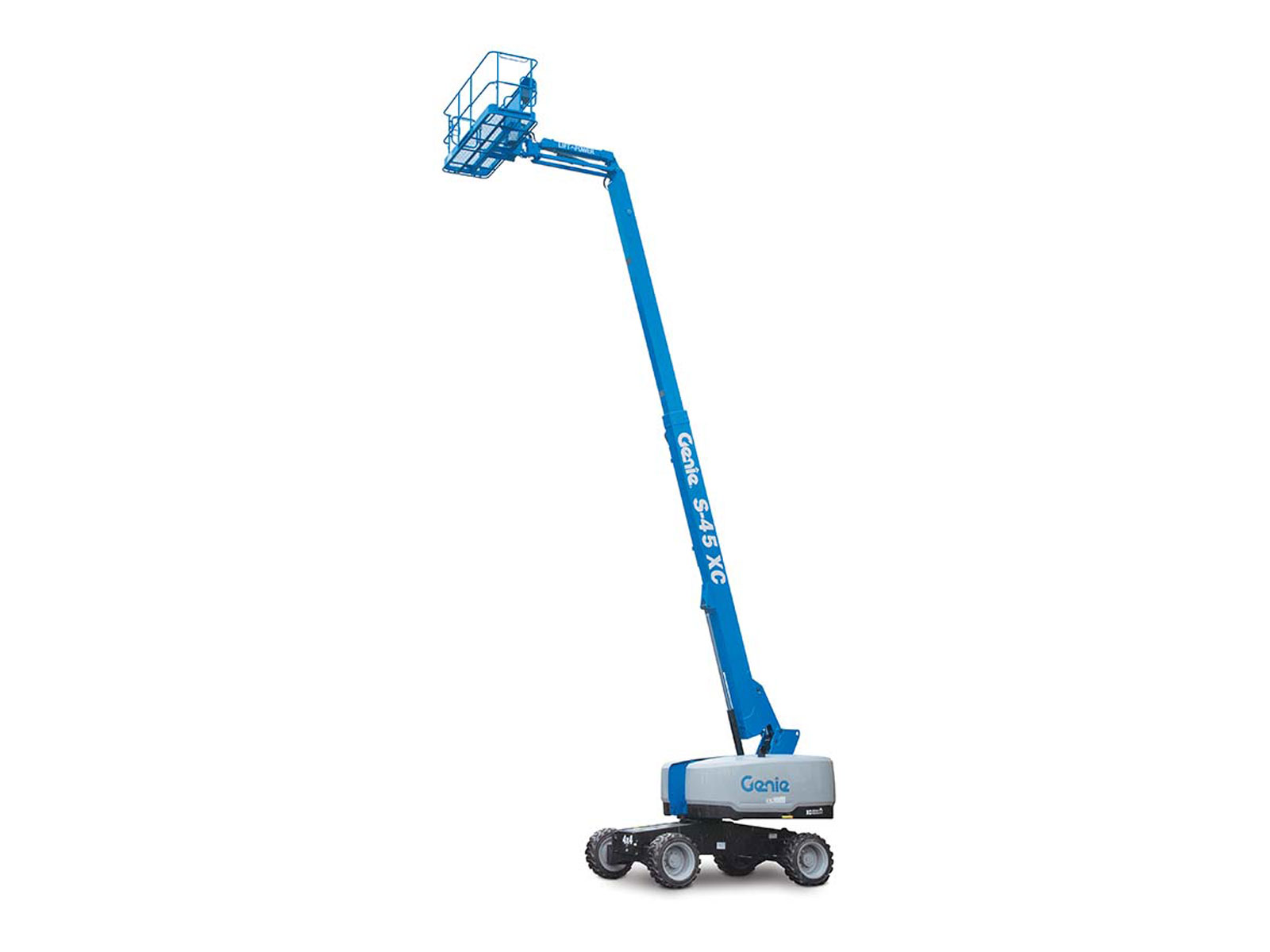

Genie S-45 XC – 15.56m Max Working Height Boom lift
Diesel Powered Telescopic Boom lift
Key Specs:
- Max Working Height: 15.56 m | 51 ft
- Platform Capacity: 300 kg ~ 454 kg | 660 lb ~ 1000 lb
| Specifications | |
| Max Working Height | 15.56 m |
| Max Platform Height | 13.56 m |
| Max Outreach (horizontal) | 11.02 m |
| Platform Size | 0.91 x 2.44 m |
| Max Platform Capacity | 454 kg |
| Weight | 7,167kg |
| Power Source | Diesel |
| Stowed Length | 9.47 m |
| Stowed Width | 2.49 m |
| Stowed Height | 2.51 m |
| Ground Clearance | 0.32 m |
Overview
- 300 kg (660 lb) / 454 kg (1,000 lb) dual platform capacity
- Load sense technology for accurate load weighing and zero-load field calibration
- Automatic envelope control enables boom to retract when it reaches its operating
envelope - Chassis tilt sensor technology maximizes operators’ ability to access hard-to-reach
work areas - Robust jib is capable of easily handling increased maximum capacity
- CAN-bus control system with onboard diagnostics maximizes serviceability
- Design focus on user interface and simplicity makes this machine easy-to-use
- Can be equipped with the new Genie Lift Power™ generator system
- Commonality in design and parts with other Genie booms
Additional information
| Brand |
|---|
