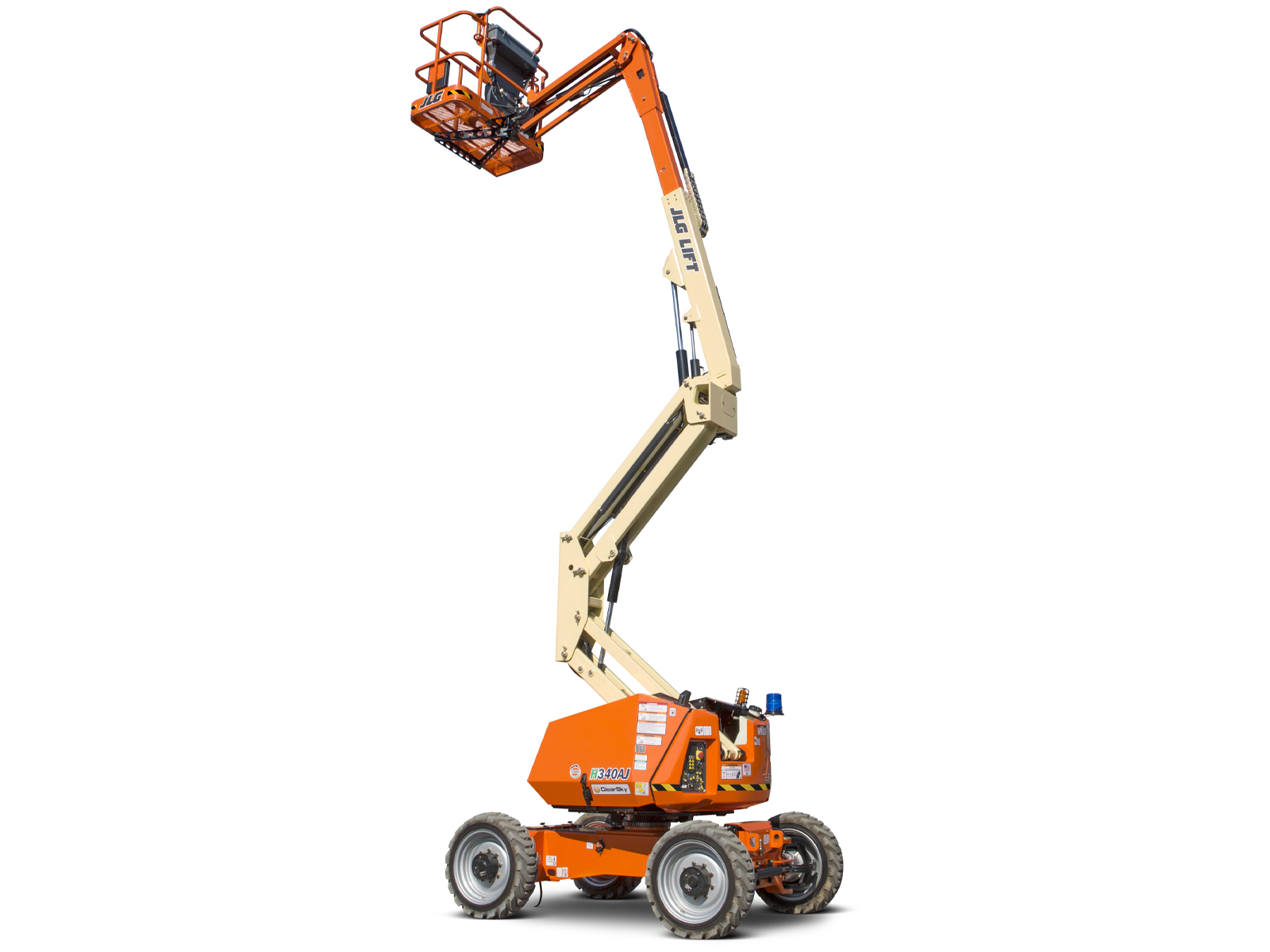

JLG H340AJ Hybrid Boom lift – 12.28m Max Working Height
Hybrid Articulating Boom Lifts
Key Specs
- Max Working Height: 12.28 m / 40.45 ft
- Platform capacity: 230 kg / 507 lb
| Specifications | |
| Max Working Height | 12.28 m |
| Max Platform Height | 10.28 m |
| Max Outreach (horizontal) | 6.06 m |
| Platform Size | 0.76 x 1.52 m |
| Max Platform Capacity | 230 kg |
| Weight | 4,675 kg |
| Power Source | Diesel Kubota Z482 8.3 kW Electric 8 x 12V 100 AH Batteries |
| Stowed Length | 5.52 m |
| Stowed Width | 1.93 m |
| Stowed Height | 2.0 m |
| Ground Clearance | 0.23 m |
- Diesel-like performance – Four independent electric-drive motors and a Tier 4 Final diesel-powered generator provide exceptional terrainability on par with its diesel counterpart
- Hybrid technology – Runs completely on 8 x 12v 100 amp-hour AGM batteries, which are charged by the diesel generator
- Versatility – The power of a diesel machine combined with hybrid efficiency allows you to work both inside and outside
- Low emissions – Experience reduced fuel use*, emissions, noise and maintenance* Compared to a diesel-powered JLG 340AJ under similar test conditions. Actual results may vary.
