Genie ZX-135/70 4WD – 43.15m Max Working Height Boom lift
Diesel Powered Articulating Boom lift
Key Specs
- Max Working Height: 43.15 m | 141.5 ft
- Platform Capacity: 272 kg | 600 lb
| Specifications | |
| Max Working Height | 43.15 m |
| Max Platform Height | 41.15 m |
| Max Outreach (horizontal) | 21.26 m |
| Platform Size | 0.91 x 2.44 m |
| Max Platform Capacity | 272 kg |
| Weight | 21,092 kg |
| Power Source | Diesel |
| Stowed Length | 12.93 m |
| Stowed Width | 2.49 m |
| Stowed Height | 3.09 m |
| Ground Clearance | 0.38 m |
Overview

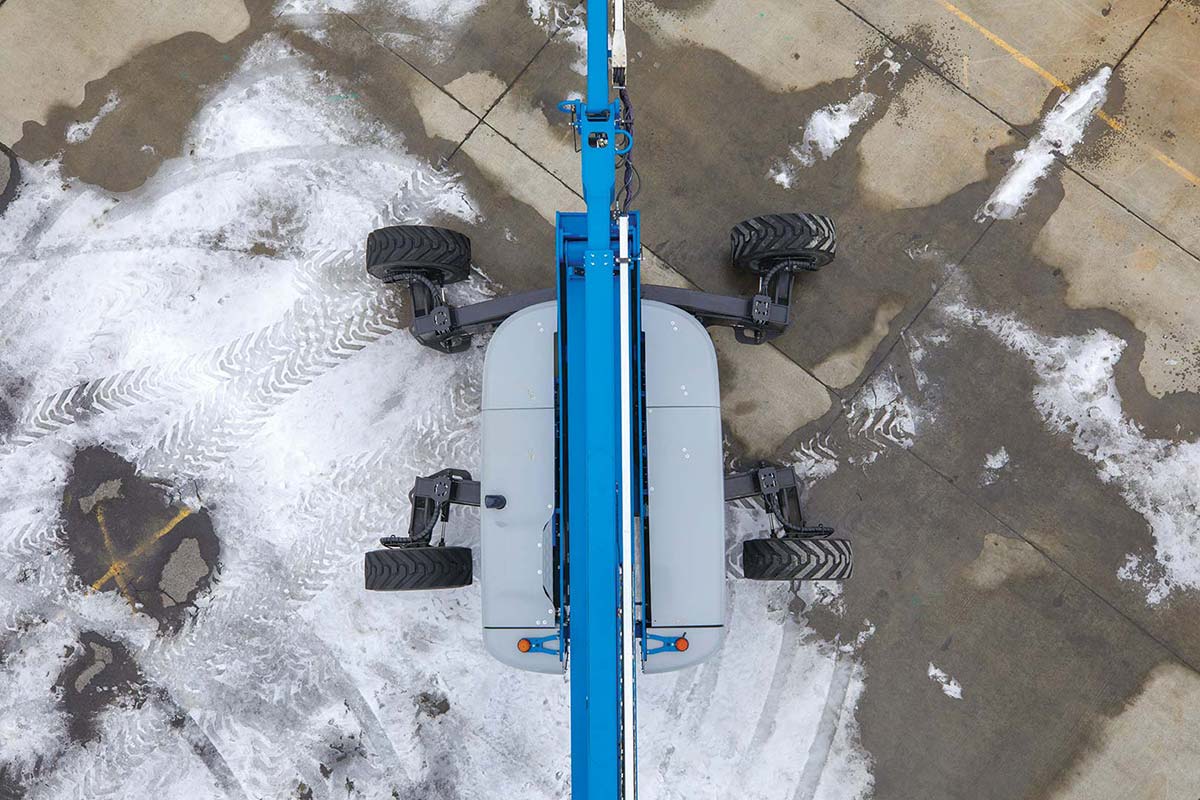

• Mini Genie X-Chassis™ system extends and retracts to provide both stability on the job and a narrow profile for transport
• 3.66 m to 6.10 m (12 ft to 20 ft) telescoping Jib-Extend™ with a 110˚ vertical range of motion
• 360˚ continuous rotation turntable and 160˚platform rotation for fast, easy positioning
• Four-wheel steer with front-wheel, rear-wheel, crab and coordinated steer options available to provide additional manoeuvrability
