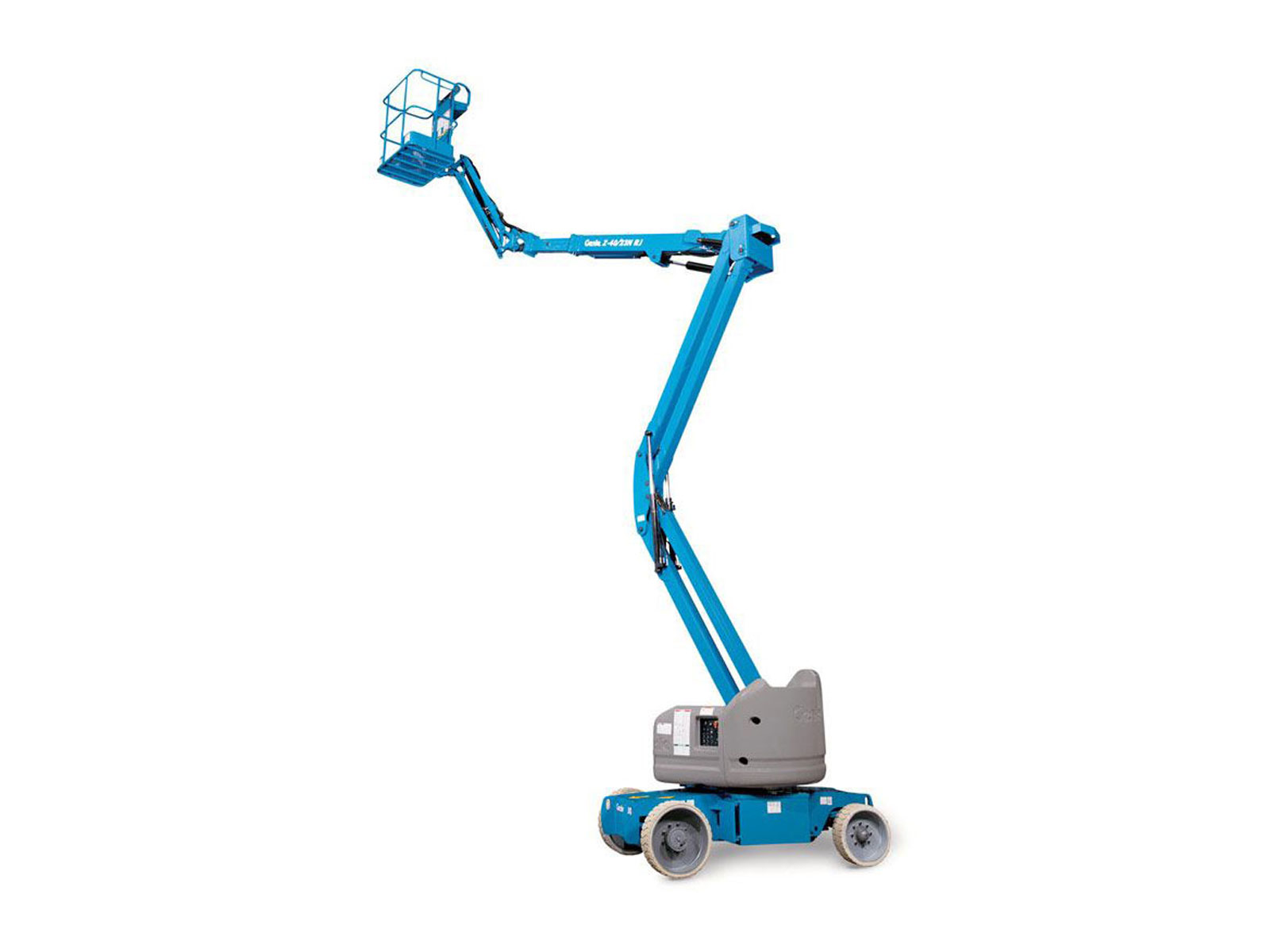

Genie Z-40/23 N RJ – 14.32m Max Working Height Electric Boom lift
Electric Powered Articulating Boom Lift
Key Specs
- Max Working Height: 14.32 m / 46.98 ft
- Platform Capacity: 227 kg / 500 lb
| Specifications | |
| Max Working Height | 14.32 m |
| Max Platform Height | 12.32 m |
| Max Outreach (horizontal) | 6.91 m |
| Platform Size | 0.76 x 1.17 m |
| Max Platform Capacity | 227 kg |
| Weight | 6,940 kg |
| Power Source | Electric 48V DC (8 × 6V 350Ah) |
| Stowed Length | 6.53 m |
| Stowed Width | 1.50 m |
| Stowed Height | 1.98 m |
| Ground Clearance | 0.24 m |
Overview
• Minimal tailswing, tight turning radius and compact dimensions for easy manoeuvring in confined jobsites
• Compact chassis for narrow aisle access
• 30% gradeability and 7.2 km/h (4.5 mph) travel speed for excellent drive performance
• AC drive system for enhanced driving performance and simplified maintenance
• 1.22 m (4 ft) articulating jib with a 128° vertical rotation and a 180° horizontal rotation for increased versatility
• 180° hydraulic platform rotation and self-levelling platform for easy operation
