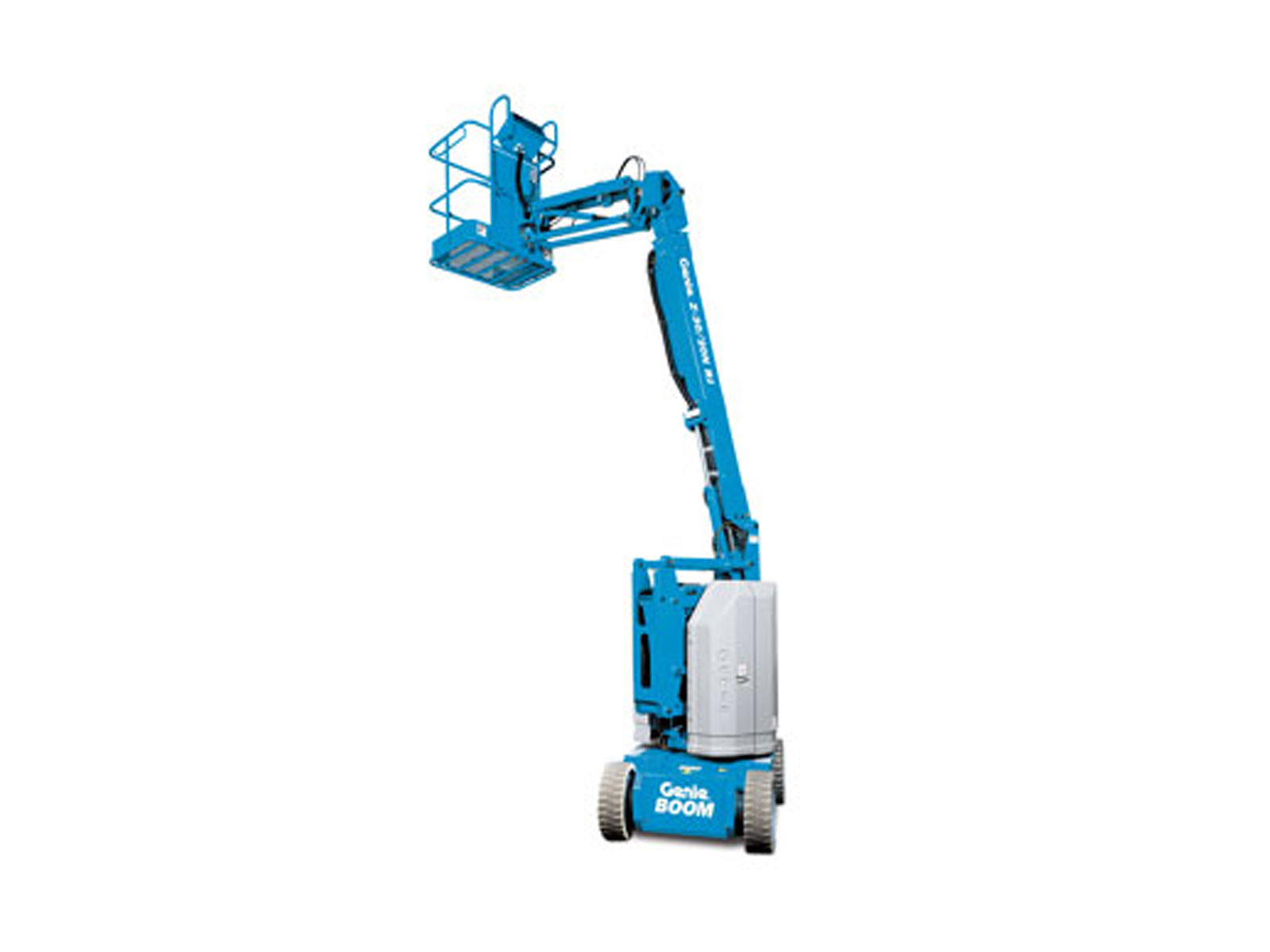

Genie Z-30/20 N RJ – 10.9m Max Working Height Electric Boom lift
Electric Powered Articulating Boom Lift
Key Specs
- Max Working Height: 10.89 m / 35.7 ft
- Platform Capacity: 227 kg / 500 lb
| Specifications | |
| Max Working Height | 10.89 m |
| Max Platform Height | 8.89 m |
| Max Outreach (horizontal) | 6.25 m |
| Platform Size | 0.76 x 1.17 m |
| Max Platform Capacity | 227 kg |
| Weight | 6,455 kg |
| Power Source | Electric 48V DC (8 × 6V 350Ah) |
| Stowed Length | 5.31 m |
| Stowed Width | 1.19 m |
| Stowed Height | 2.0 m |
| Ground Clearance | 0.09 m |
- Overview• Zero tailswing and zero front arm swing in stowed and raised positions allow for work in tight spaces
• Compact chassis for narrow aisle access
• 35% gradeability and 4.8 km/h (3.3 mph) travel speed for excellent drive performance
• 1.22 m (4 ft) articulating jib with a 139° vertical rotation and a 180° horizontal rotation for increased versatility
• 180° hydraulic platform rotation and self-levelling platform for easy operation
