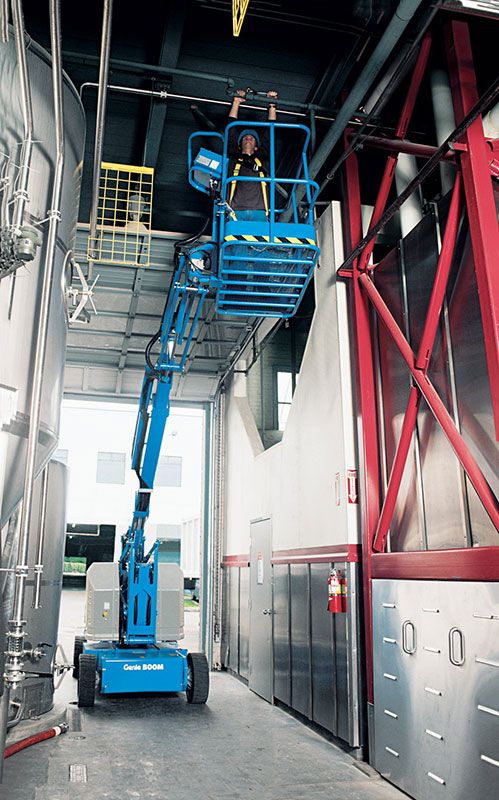

Genie Z-34/22 N – 12.52m Max Working Height Electric Boom lift
Electric Powered Articulating Boom Lift
Key Specs
- Max Working Height: 12.52 m / 41 ft
- Platform Capacity: 227 kg / 500 lb
| Specifications | |
| Max Working Height | 12.52 m |
| Max Platform Height | 10.52 m |
| Max Outreach (horizontal) | 6.78 m |
| Platform Size | 0.76 x 1.42 m |
| Max Platform Capacity | 227 kg |
| Weight | 5,178 kg |
| Power Source | Electric 48V DC (8 × 6V 315Ah) |
| Stowed Length | 5.72 m |
| Stowed Width | 1.47 m |
| Stowed Height | 2.0 m |
| Ground Clearance | 0.14 m |
Overview
• Zero tailswing in stowed and raised positions allow for work in tight spaces
• Compact chassis for narrow aisle access
• 35% gradeability for excellent drive performance
• 1.22 m (4 ft) articulating jib with a 139° range of motion to accurately position workers
• 180° hydraulic platform rotation and self-levelling platform for easy operation
