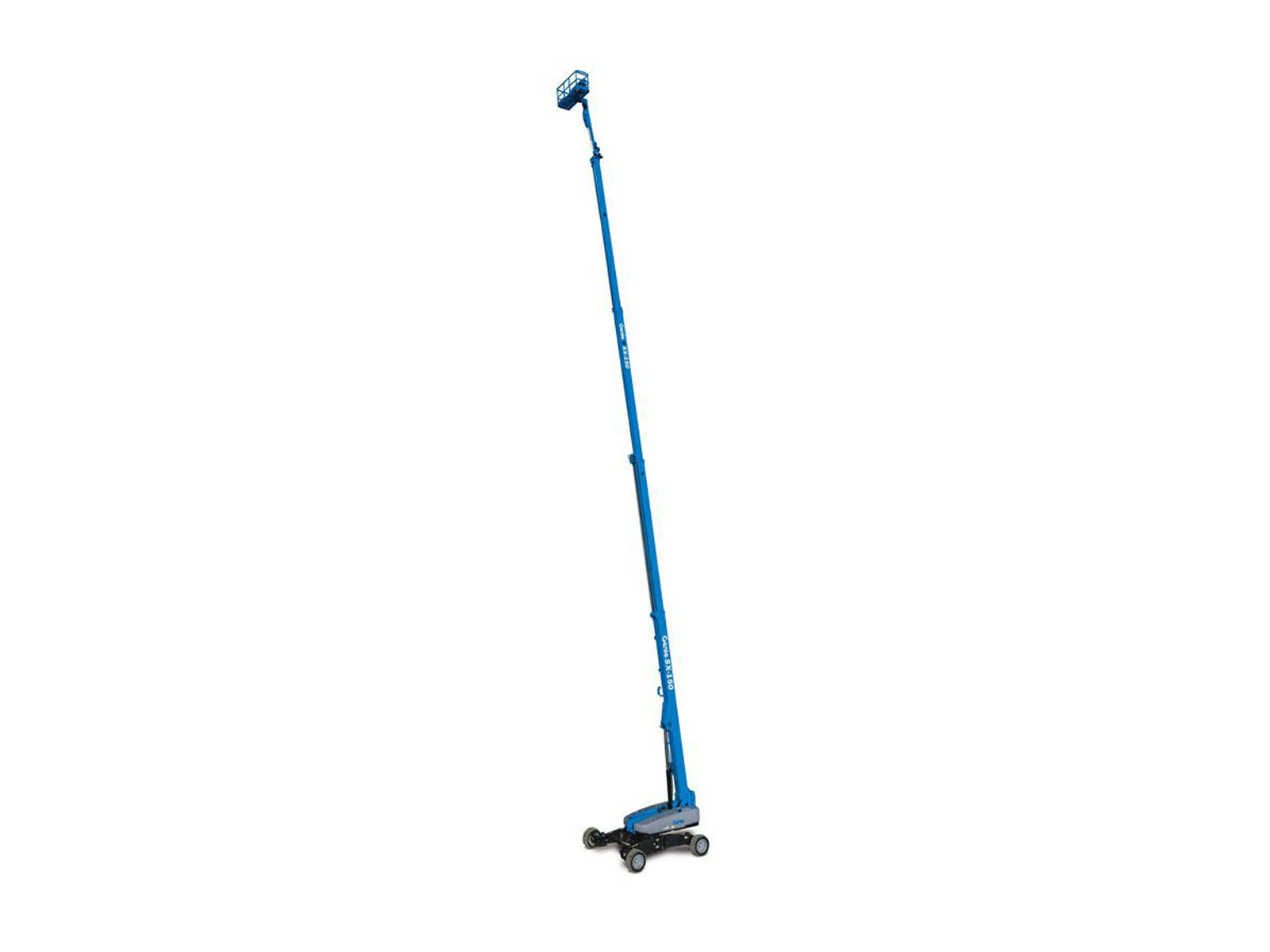

Genie SX-150 – 48.3m Max Working Height Boom lift
Diesel Powered Telescopic Boom lift
Key Specs
- Max Working Height: 48.02 m | 157.5 ft
- Platform Capacity: 340 kg | 750 lb
| Specifications | |
| Max Working Height | 48.33 m |
| Max Platform Height | 46.33 m |
| Max Outreach (horizontal) | 24.38 m |
| Platform Size | 0.91 x 2.44 m |
| Max Platform Capacity | 340 kg |
| Weight | 22,657 kg |
| Power Source | Diesel |
| Stowed Length | 16.18 m |
| Stowed Width | 2.49 m |
| Stowed Height | 3.05 m |
| Ground Clearance | 0.38 m |
Overview
• Genie XChassis™ system extends and retracts to provide stability on the job and a narrow profile for transport
• 3.05 m (10 ft) rotating jib with 135˚ vertical and 60˚ horizontal articulation to easily position workers and gear
• Standard 2.44 m (8 ft) self-levelling platform with an unrestricted capacity of 340 kg (750 lb)
• Drive-enable at full height for more productivity on the jobsite
• Features a working envelope ideal for the most extreme access jobs with a working height of 48.33 m (158 ft) and a horizontal reach of 24.38 m (80 ft)
