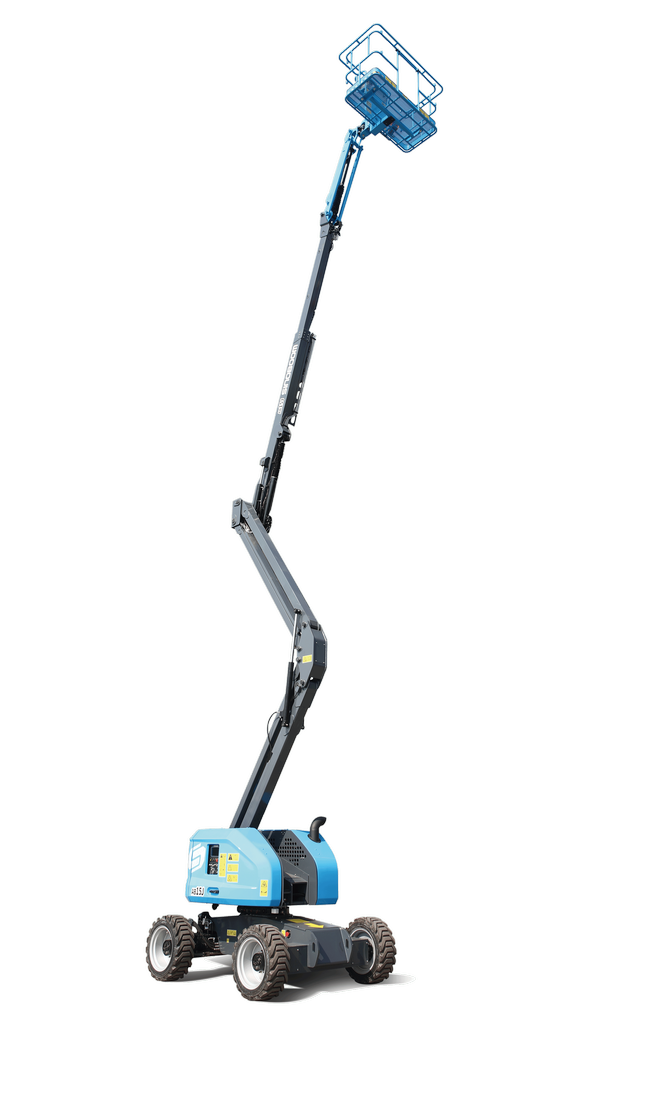

Sinoboom AB15J – 16.7m Max Working Height Boom lift
Diesel Powered Articulating Boom Lift
Key Features:
- Maximum Working Height: 16.7 m | 54.8 ft
- Platform Capacity: 250 kg | 551 lb
| Specifications | |
| Max Working Height | 16.7 m |
| Max Platform Height | 14.7 m |
| Max Outreach (horizontal) | 8.5 m |
| Platform Size | 0.85 x 1.83 m |
| Max Platform Capacity | 250 kg |
| Weight | 7,280 kg |
| Power Source | Diesel Deutz D2011L3I 36.3 kW |
| Stowed Length | 7.35 m |
| Stowed Width | 2.26 m |
| Stowed Height | 2.22 m |
| Ground Clearance | 0.32 m |
-
Suitable for narrow spaces
■ Narrow body of 1.9m(6’3″) with almost zero tail sweep -
Precision performance
■ 3 joysticks with variable proportional control, boom swing, boom extension, turntable rotation and
walking speed, smooth start and stop motion, accuracy in reaching the operation target -
Industry-Leading adaptability
■ Maximum allowable inclination angle up to 5°
Additional information
