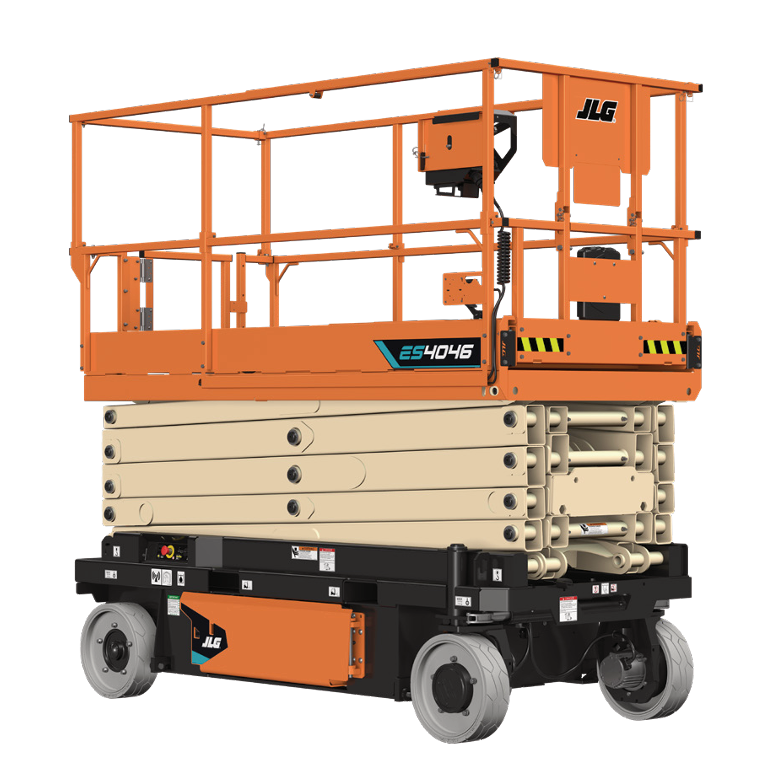

JLG ES4046 Electric Scissor Lift – 13.9m Max Working Height
Key Specs
- Max Working Height: 13.90 m / 45.6 ft
- Max Platform Capacity: 320 kg | 705 lb
| Specifications | |
| Max Working Height | 13.90 m |
| Max Platform Height | 11.90 m |
| Overall Length | 2.70 m |
| Overall Width | 1.17 m |
| Stowed Height | 1.99 m – 2.53 m |
| Extension length | 0.91 m |
| Platform Capacity | 320 kg |
| Weight | 3215 kg |
| Ground Clearance | 120 mm |
Standard Features
- Clearsky Smart Fleet Hardware
- Proportional Controls
- Load Sensing System
- Electric Drive
- Smart Battery Charger CAN Enabled
- Battery Condition Indicator
- All Motion Alarm
- Horn
- Hourmeter
- Tilt Alarm and Light
- Lanyard Attach Points
- Moveable, Removable Platform Control
- Lubrication Free Scissor Arm Bushings
- Scissor Maintenance Prop
- Active Pothole Protection System
- Lifting and Tie Down Points
- Fork Lift Pockets
- Foot-Actuated Deck Extension
- Steel Swing-Out Doors
- Variable Tilt Visual Zone Indicator
- Manual Descent Cable
- Diamond Tread Steel Deck
- Greaseless Kingpin Joints
- Analyzer Port for Diagnostics
- Dynamic Braking
- Flashing Amber Beacon
- Self Closing, Self Latching Gate
- Fold Down Rails
- USB Charger and phone Holster
- MDI (Ground)
- AS/NZS 1418.10 Compliance
