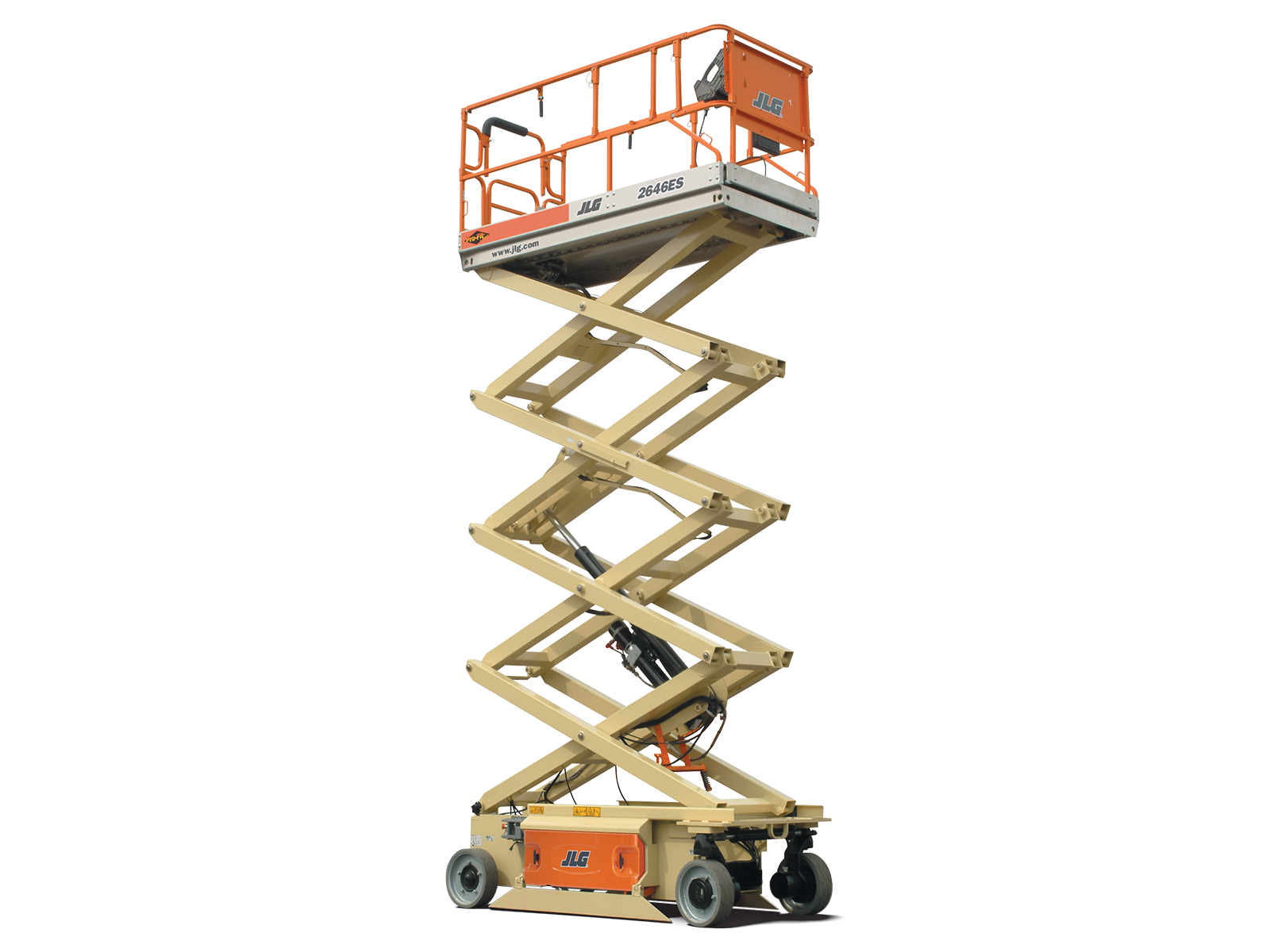

JLG ES2646 Electric Scissor Lift – 9.92m Max Working Height
Key Specs
- Max Working Height: 9.92 m / 32.5 ft
- Max Platform Capacity: 545 kg | 1200 lb
| Specifications | |
| Max Working Height | 9.92 m |
| Max Platform Height | 7.92 m |
| Overall Length | 2.4 m |
| Overall Width | 1.17 m |
| Stowed Height | 1.82 m – 2.28 m |
| Extension length | 0.91 m |
| Platform Capacity | 545 kg |
| Weight | 2401 kg |
| Ground Clearance | 98 mm |
Standard Features
- 27 amp Multi-Function Universal Charger
- AC Receptacle in Platform
- Active Pothole Protection System
- All Motion Alarm
- Analyzer Port for Diagnostics
- Battery Condition Indicator
- Diamond Tread Steel Deck
- Dynamic Braking
- Fork Lift Pockets
- Foot-Actuated Deck Extension
- Greaseless Kingpin Joints
- Horn
- Hourmeter
- Lanyard Attach Points
- Lifting and Tie Down Points
- Lubrication Free Scissor Arm Bushings
- Manual Descent Cable
- Movable, Removable Platform Control
- Nickel Plated Pins
- Proportional Controls
- Removable Ladder
- Scissor Maintenance Prop
- Steel Swing-Out Doors
- Tilt Alarm and Light
- Variable Tilt Visual Zone Indicator
