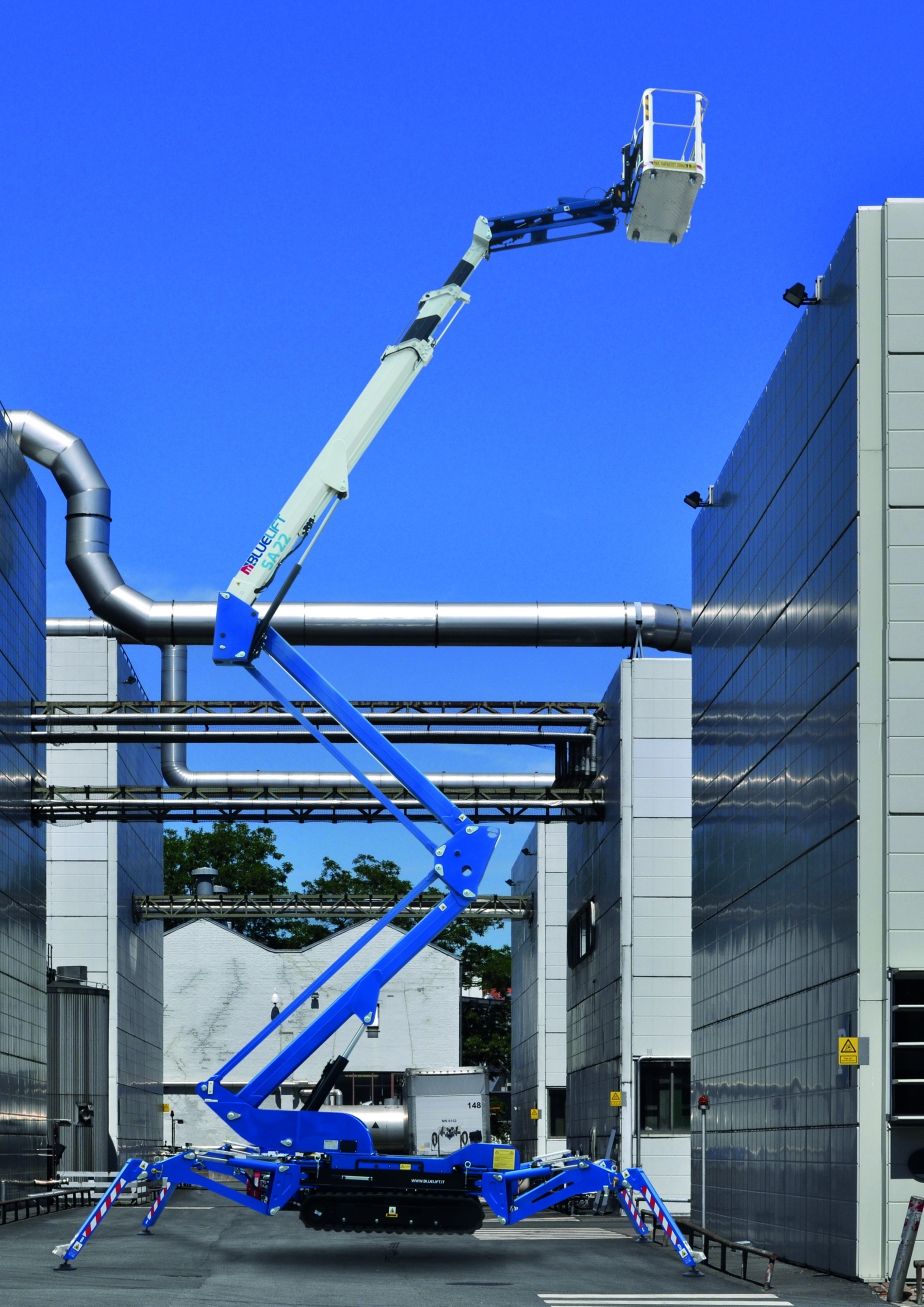

Bluelift SA22 – 22m Max Working Height Boom lift
Hybrid Compact Crawler Boom Lift
Key Specs
- Max Working Height: 22 m / 72.2 ft
- Platform Capacity: 250 kg | 551 lb
| Specifications | |
| Max Working Height | 22 m |
| Max Platform Height | 20 m |
| Max Outreach (horizontal) | 10.9 m |
| Platform Size | 0.7x 1.3 m |
| Max Platform Capacity | 250 kg |
| Weight | 2,990 kg |
| Power Source | Engine Honda iGX | Electric motor 230 V – 2,2 kW |
| Stowed Length | 5.2 m |
| Stowed Width | 0.94 m |
| Stowed Height | 1.97 m |
| Ground Clearance | – |
- Quickly removable aluminum basket
- Basket rotation
- i-Performing electric pump (patented) with auto Start/Stop system
- 230V power outlet in basket
- Radio remote control with interactive and multi-lingual display
- Track width adjusting system with indipendent axle
- Multi-area stabilizer setting (3 different set-up positions)
- Moment limiting device
- Automatic center position of turret
- Self Stabilizing system
- Automatic START & STOP of engines and RPM control
- Proportional and simultaneous electro-hydraulic controls
- Proportional track drive with hydraulic breaking system
- Double drive speed system with safety control
- Driving lateral slope alarm with safety stop
- Driving possible with jib boom raised (with selector)
- Interblock outriggers/booms
- Emergency push-button with engine stop
- Simple emergency lowering procedure
- Hand pump for the emergency lowering of platform
- Covers on outrigger cylinder’s piston rod, oil tank and emergency controls
- Modem connection plug for diagnosis/software upgrading in remote
- Produced according to EN280 norm and international safety regulation
