JLG 38AM Vertical Lift

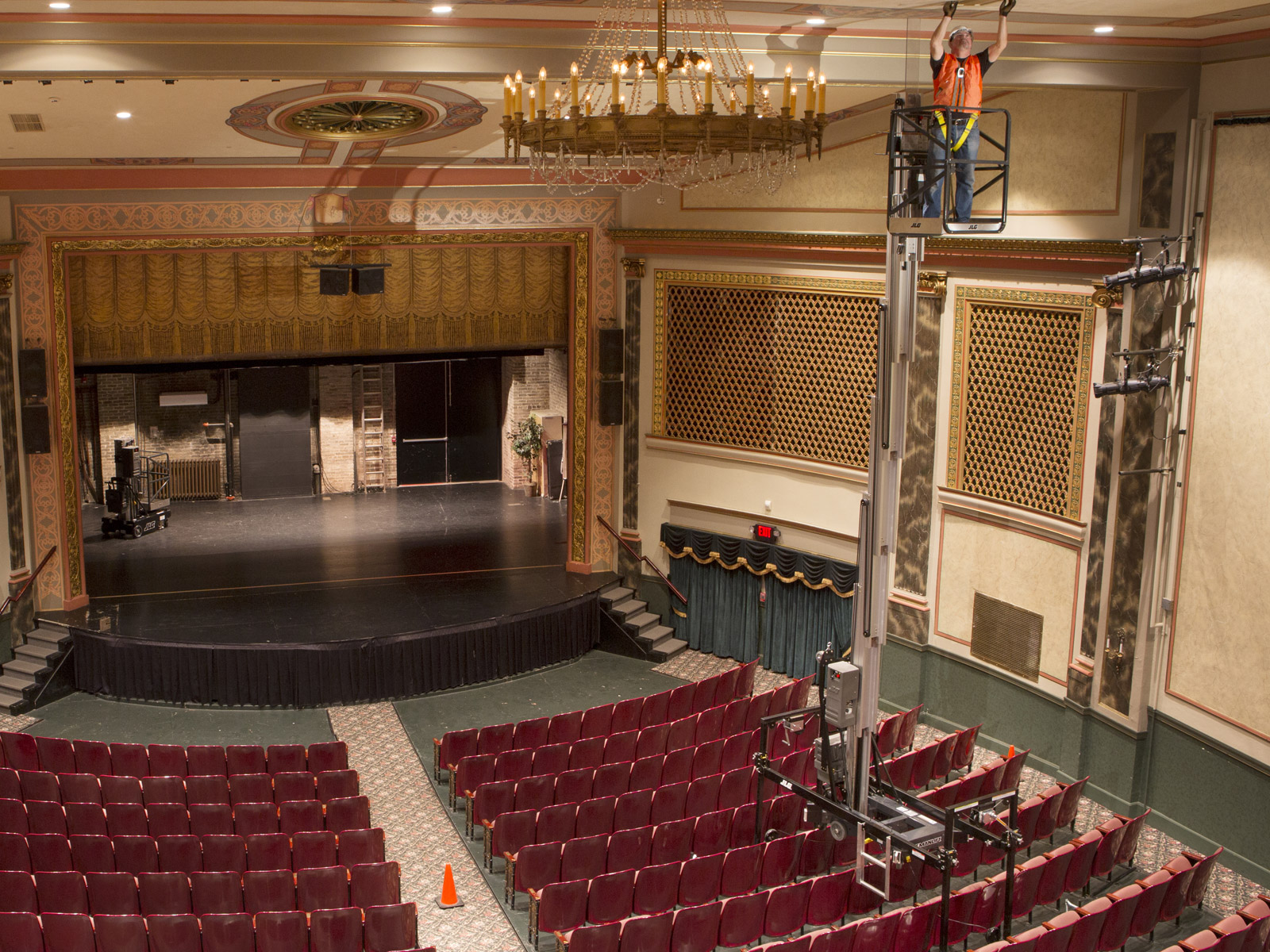

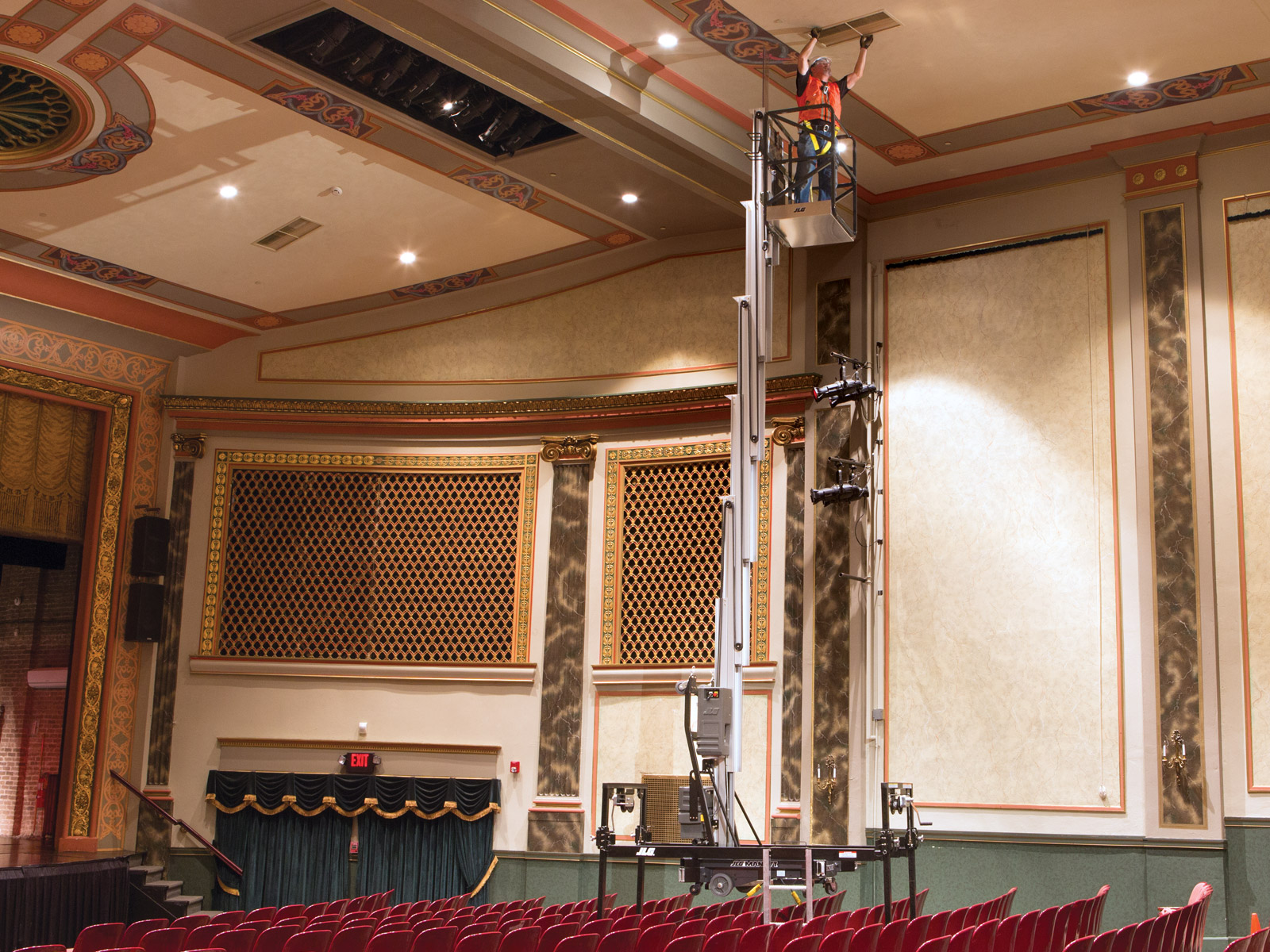

The AM Series (AccessMaster®) is easily portable, offers up to 160 kg (350 lb) platform capacity and is ideal for many uses including industrial, maintenance, entertainment and institutional. Platform heights range from 6.15 m (20 ft) to 12.49 m (41 ft), allowing work to be done up to 14.32 m (47 ft).
Key Specs
- Platform Height: 11.58 m / 38 ft
- Machine Width: 0.74 m / 2.4 ft
Key Features
- Most rigid mast in the industry for operator comfort and stability
- Six-wheel design for improved maneuverability
- Long battery duty cycles and an automatic charger for more productivity
| Dimensional Data | |
| Ground Entry Height | 0.48 m / 1 ft 7 in. |
| Machine Height | 2.64 m / 8.7 ft |
| Machine Length | 1.46 m / 4.8 ft |
| Machine Width | 0.74 m / 2.4 ft |
| Outrigger Footprint Length | 2.18 m / 7.2 ft |
| Outrigger Footprint Width | 2.13 m / 7 ft |
| Platform Dimension A | 0.66 m / 2.2 ft |
| Platform Dimension B | 0.65 m / 2.1 ft |
| Platform Height | 11.58 m / 38 ft |
| Wheel Size – Front Caster | 15 x 5 cm |
| Wheel Size – Rear | 25 x 5 cm |
| Reach Specifications | |
| Platform Height | 11.58 m / 38 ft |
| Working Height | 13.40 m / 44 ft |
| Performance Data | |
| Outriggers or Stabilizers | Yes |
| Platform Capacity | 135 kg / 297.6 lb |
| General Specifications | |
| Machine Weight-AC | 574 kg / 1265.5 lb |
| Machine Weight-AC | 574 kg / 1265.5 lb |
| Machine Weight-AC | 485 kg / 1069.2 lb |
| Machine Weight-DC | 633 kg / 1395.5 lb |
| Machine Weight-DC | 633 kg / 1395.5 lb |
| Machine Weight-DC | 520 kg / 1146.4 lb |
- Most rigid mast in the industry for operator comfort and stability
- Six-wheel design for improved maneuverability
- Long battery duty cycles and an automatic charger for more productivity
