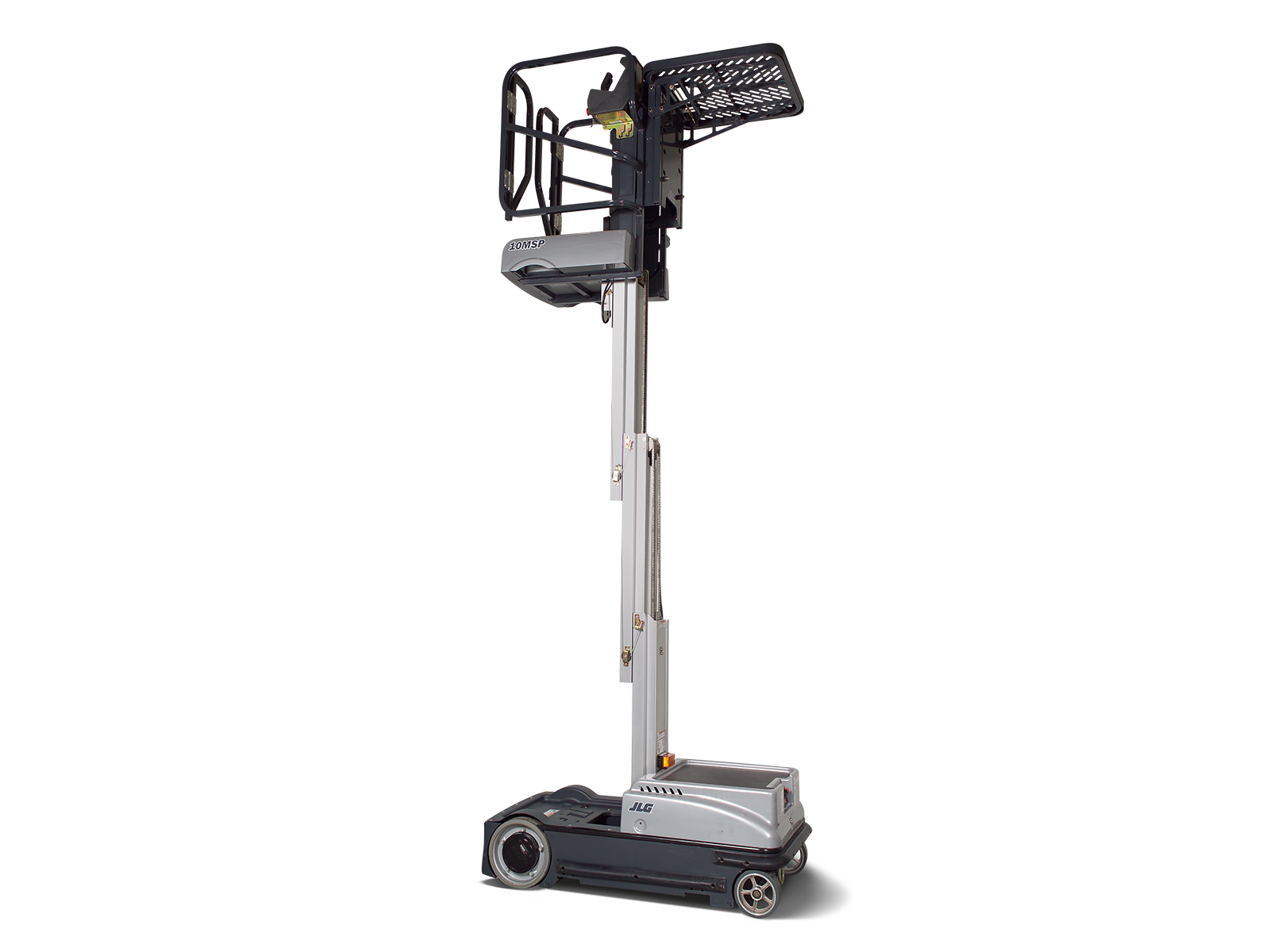

JLG 10MSP Stock Picker
DRIVEABLE STOCK PICKER

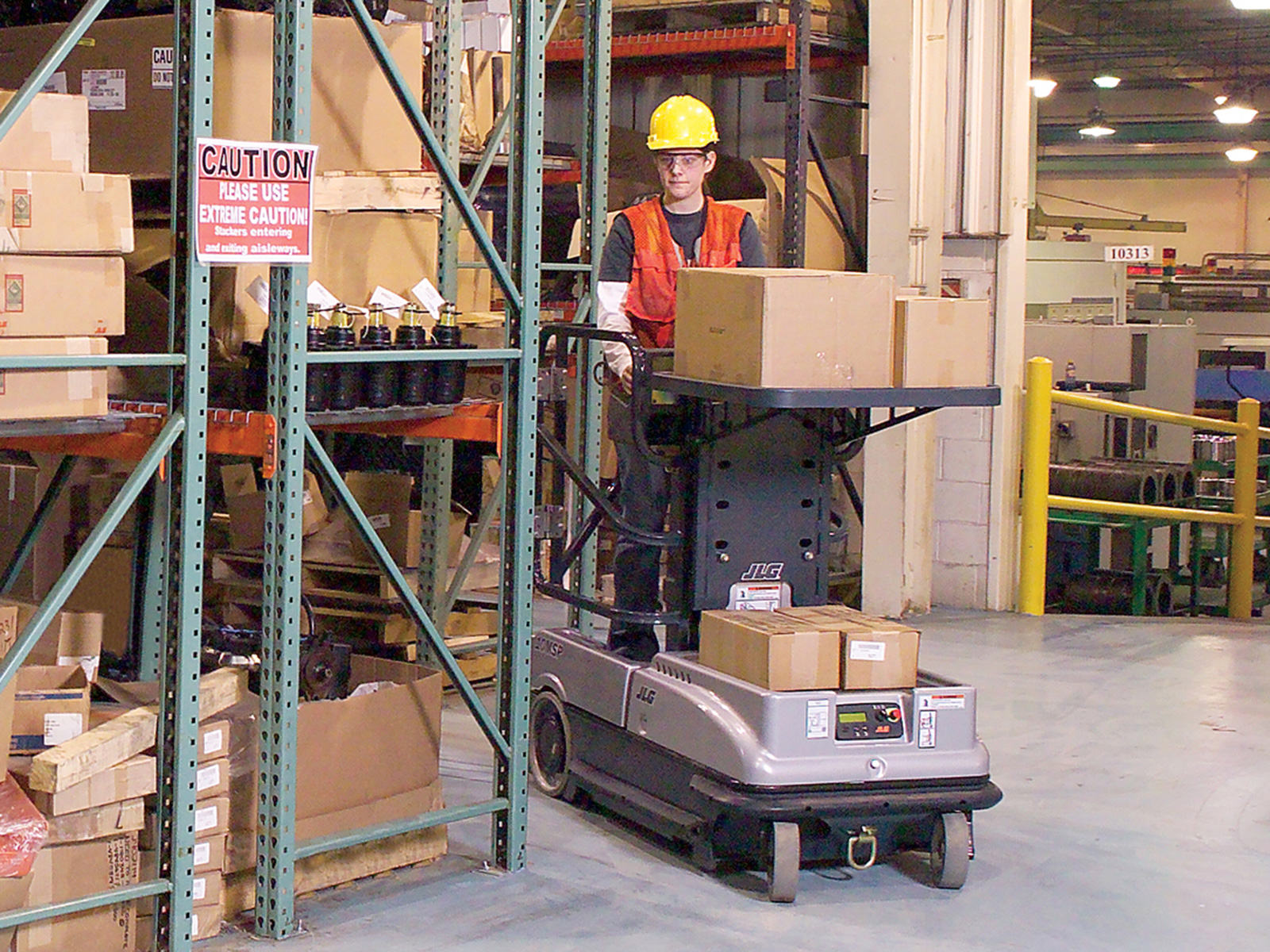

Whether you are transporting supplies, setting up displays or performing routine maintenance, the MSP Series makes your everyday tasks more efficient. Our line of stock pickers lets you carry both people and materials thanks to a flexible platform and extra-large material tray. They also feature a zero turning radius for superior manoeuvrability and long battery cycles for working a full shift or more.
Key Specs
- Platform Height: 3.05 m / 10 ft
- Machine Width: 0.83 m / 2.7 ft
Key Features
- Zero turning radius for superior manoeuverability
- Built-in automatic charger for less downtime on the job
- One-hand operation for increased operator comfort
- Driveable at full height for increased efficiency
| Dimensional Data | |
| Wheel Size – Front Caster | 20 x 6 cm |
| Ground Clearance | 0.05 m / 2 in. |
| Ground Entry Height | 0.35 m / 1 ft 2 in. |
| Machine Height | 1.45 m / 4.8 ft |
| Machine Length | 1.55 m / 5.1 ft |
| Machine Width | 0.83 m / 2.7 ft |
| Platform Dimension A | 0.50 m / 1.6 ft |
| Platform Dimension B | 0.69 m / 2.3 ft |
| Platform Height | 3.05 m / 10 ft |
| Wheel Size – Rear | 32 x 10 cm |
| Tyre Size | N/A |
| Reach Specifications | |
| Picking Height | 4.55 m / 14.9 ft |
| Platform Height | 3.05 m / 10 ft |
| Working Height | 5.05 m / 16.6 ft |
| Performance Data | |
| Drive Speed – Platform Elevated | 1.10 km/h / 0.7 mph |
| Drive Speed – Platform Lowered | 8 km/h / 5 mph |
| Drive System | 4 Brush Direct Electric |
| Gradeability | 15 % |
| Maximum Drive Height | 3.05 m / 10 ft |
| Maximum Lift Height | 3.05 m / 10 ft |
| Platform Capacity | 160 kg / 352.7 lb |
| General Specifications | |
| deleted – Tray-Capacity | 115 kg / 253.5 lb |
| Machine Weight | 500 kg / 1102.3 lb |
| Power Source | |
| Batteries | 210 A/hr AGM (x 4) |
- Zero turning radius for superior manoeuverability
- Built-in automatic charger for less downtime on the job
- One-hand operation for increased operator comfort
- Driveable at full height for increased efficiency
