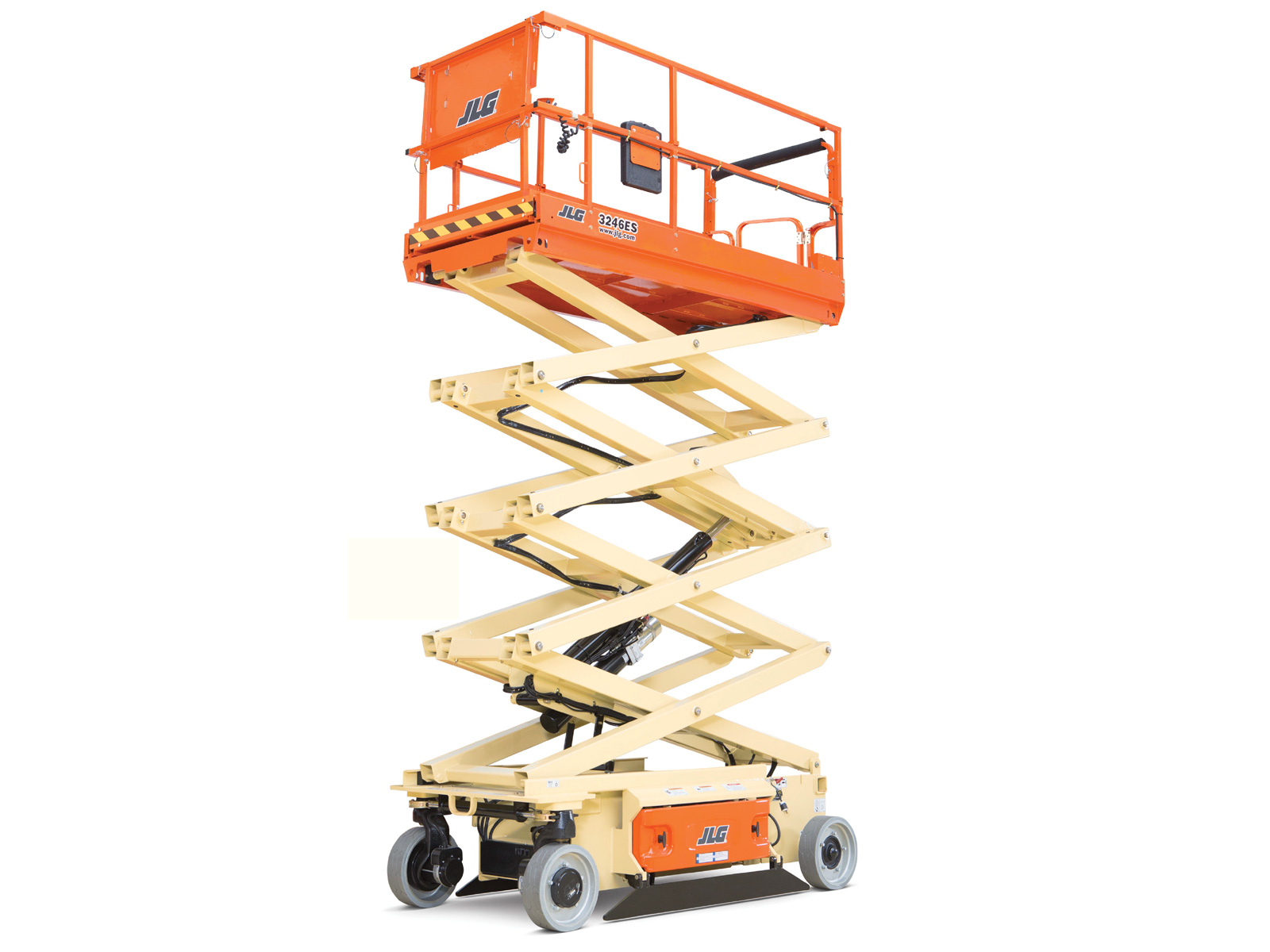

JLG ES3246 Electric Scissor Lift – 11.8m Max Working Height
Key Specs
- Max Working Height: 11.8 m / 38.7 ft
- Max Platform Capacity: 320 kg | 705 lb
| Specifications | |
| Max Working Height | 11.8 m |
| Max Platform Height | 9.8 m |
| Overall Length | 2.4 m |
| Overall Width | 1.17 m |
| Stowed Height | 2.0 m – 2.50 m |
| Extension length | 0.91 m |
| Platform Capacity | 320 kg |
| Weight | 2549 kg |
| Ground Clearance | 98 mm |
Standard Features
• 27 amp Multi-Function Universal Charger
• AC Receptacle in Platform
• Active Pothole Protection System
• All Motion Alarm
• Analyzer Port for Diagnostics
• Battery Condition Indicator
• Diamond Tread Steel Deck
• Dynamic Braking
• Fork Lift Pockets
• Foot-Actuated Deck Extension
• Greaseless Kingpin Joints
• Horn
• Hourmeter
• Lanyard Attach Points
• Lifting and Tie Down Points
• Lubrication Free Scissor Arm Bushings
• Manual Descent Cable
• Movable, Removable Platform Control
• Nickel Plated Pins
• Proportional Controls
• Removable Ladder
• Scissor Maintenance Prop
• Steel Swing-Out Doors
• Tilt Alarm and Light
• Variable Tilt Visual Zone Indicator
