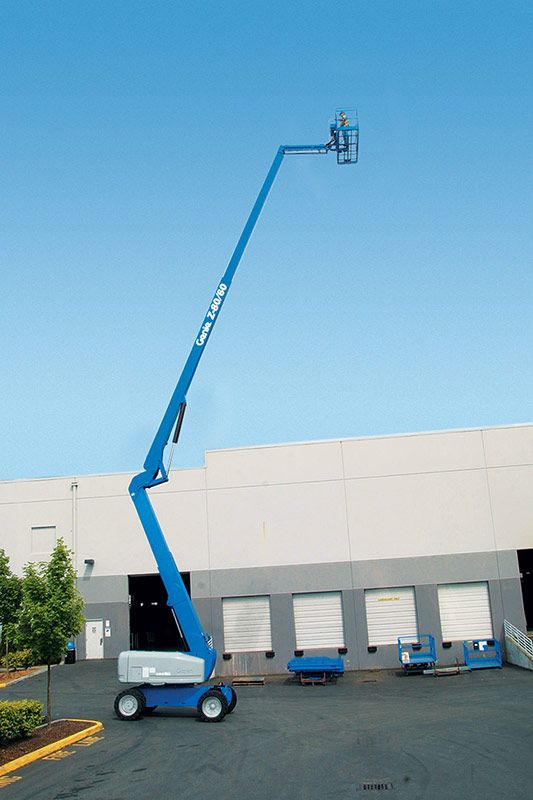

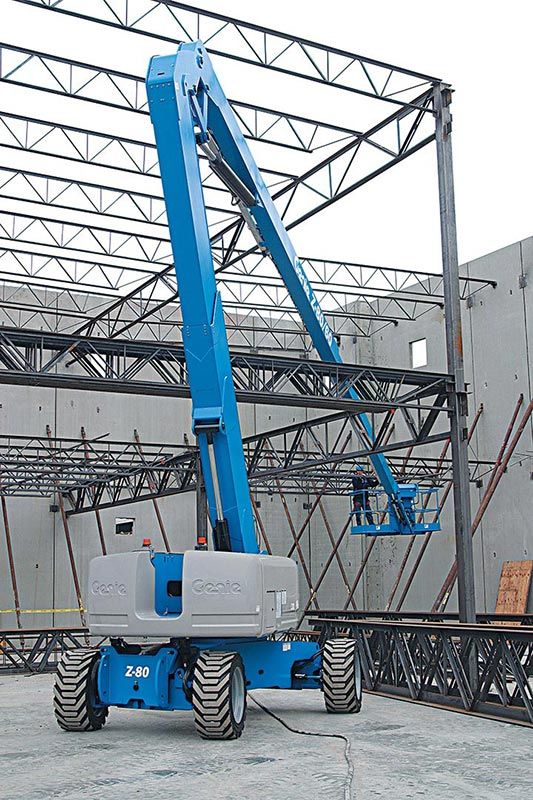

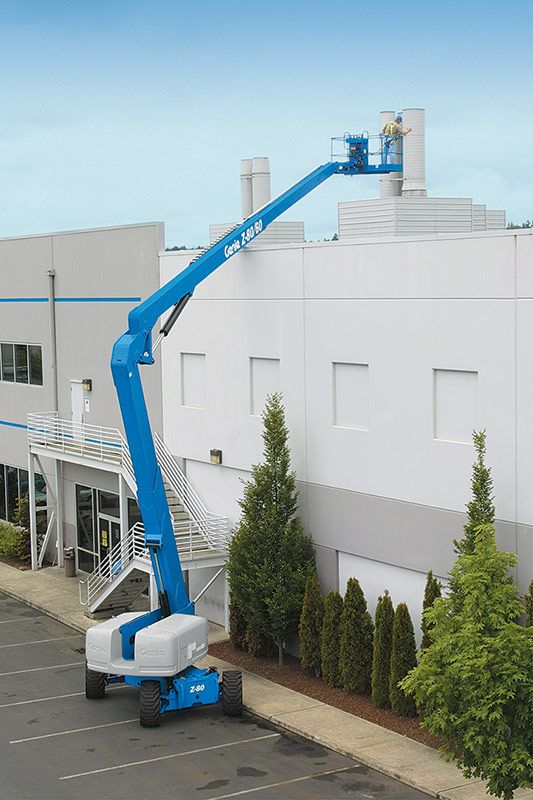

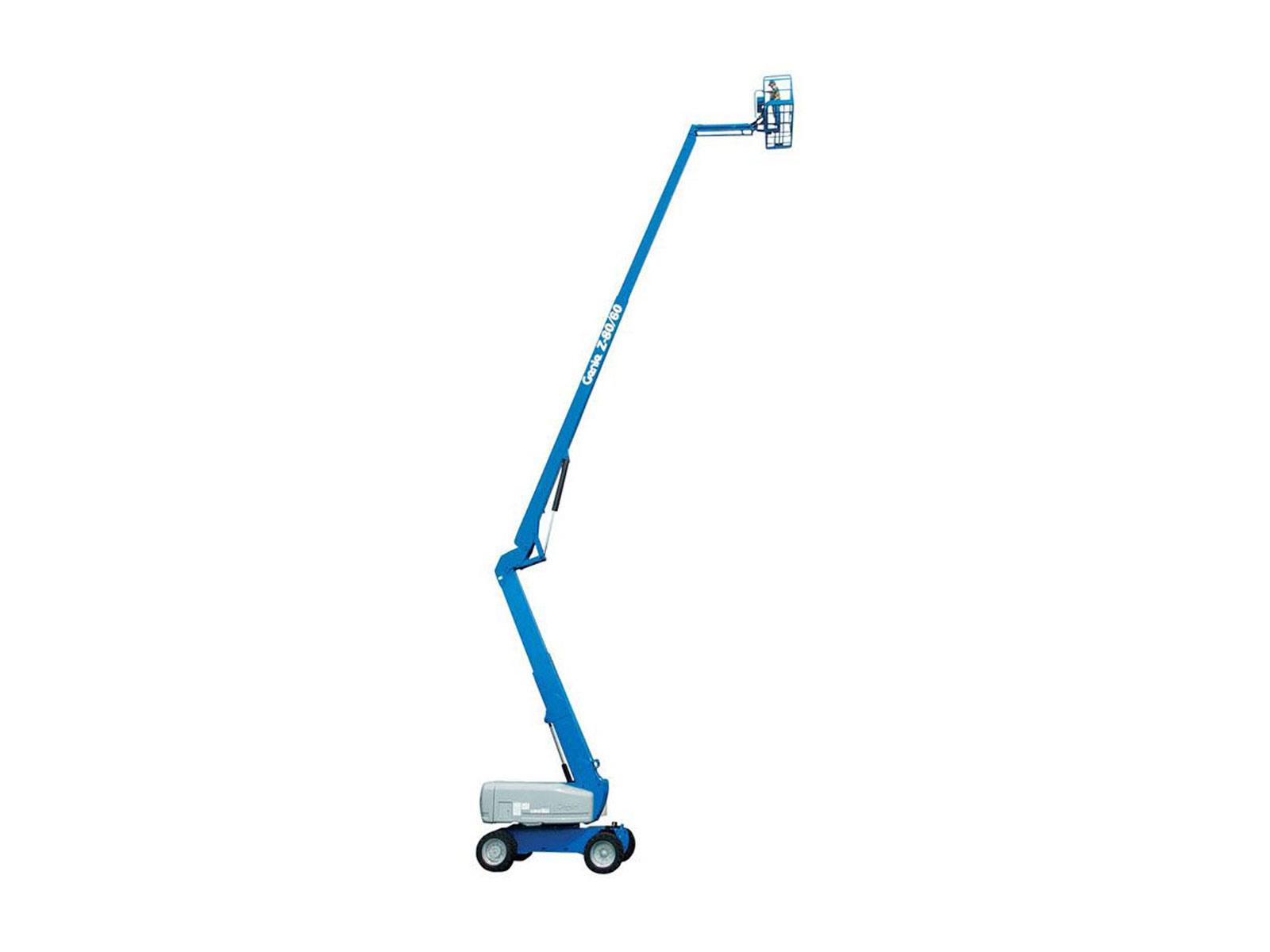

Genie Z-80/60 4WD – 25.77m Max Working Height Boom lift
Diesel Powered Articulating Boom lift
Key Specs
- Max Working Height: 25.77 m / 84.5 ft
- Platform Capacity: 227 kg / 500 lb
| Specifications | |
| Max Working Height | 25.77 m |
| Max Platform Height | 23.77 m |
| Max Outreach (horizontal) | 18.29 m |
| Platform Size | 0.91 x 2.44 m |
| Max Platform Capacity | 227 kg |
| Weight | 17,010kg |
| Power Source | Diesel |
| Stowed Length | 11.27 m |
| Stowed Width | 2.49 m |
| Stowed Height | 3.0 m |
| Ground Clearance | 0.30 m |
Overview
• Full-time active oscillating axle helps maintain traction on rough terrain
• 4WD and full-time positive traction for a smooth ride on rough ground conditions
• Reverse-articulating secondary boom with 8.83 m (29 ft) of up and over reach and zero front arm swing
• 1.83 m (6 ft) articulating jib with a 135° vertical rotation to accurately position workers
• Genie Fast Mast™ boom system allows operators to descend and retrieve materials and quickly return to working height
