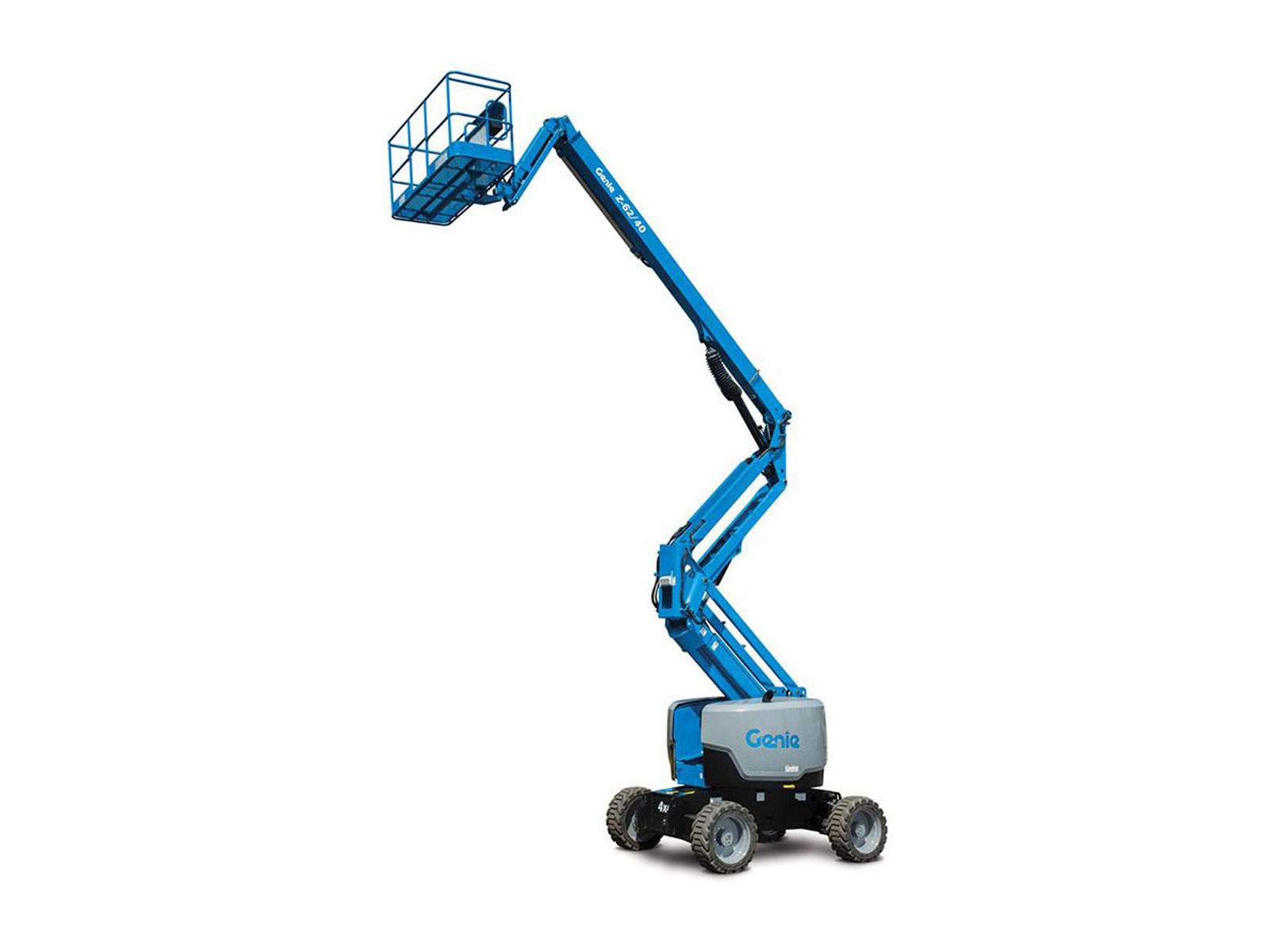

Genie Z-62/40 AU – 20.87m Max Working Height Boom lift
Diesel Powered Articulating Boom Lift
Key Specs
- Max Working Height: 20.87 m / 68.5 ft
- Platform Capacity: 227 kg / 500 lb
| Specifications | |
| Max Working Height | 20.87 m |
| Max Platform Height | 18.87 m |
| Max Outreach (horizontal) | 12.42 m |
| Platform Size | 0.91 x 2.44 m |
| Max Platform Capacity | 227 kg |
| Weight | 12,409 kg |
| Power Source | Diesel Deutz T4f TD2.9L4 74 hp (55.18 kW) |
| Stowed Length | 9.25 m |
| Stowed Width | 2.49 m |
| Stowed Height | 2.54 m |
| Ground Clearance | 0.41 m |
Overview
• Full-time active oscillating axle helps maintain traction on rough terrain
• 4WD and 45% gradeability for superior terrainability
• Dual parallelogram and fully proportional controls for precise boom positioning and smooth performance
• 1.52 m (5 ft) articulating jib with a 135° vertical rotation to accurately position workers
• Genie Fast Mast™ boom system allows operators to descend and retrieve materials and quickly return to working height
