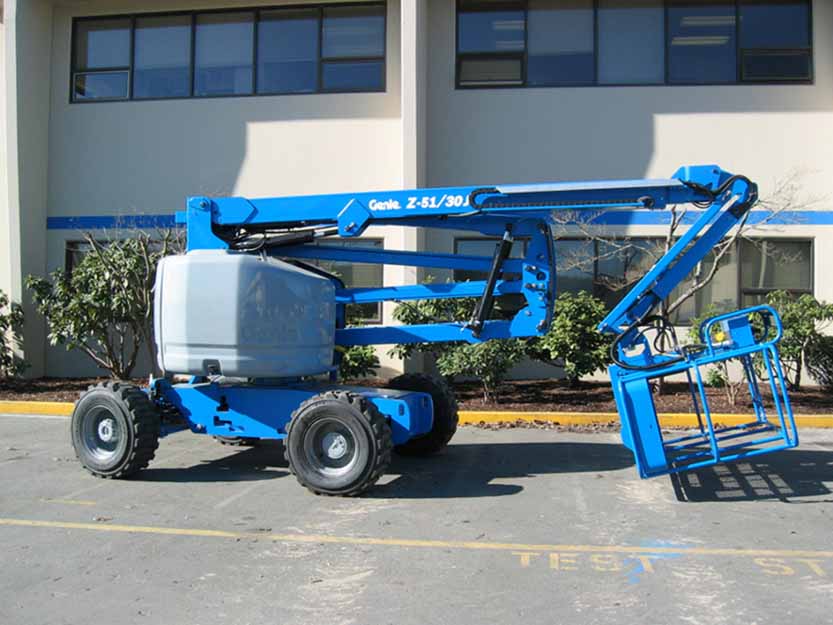

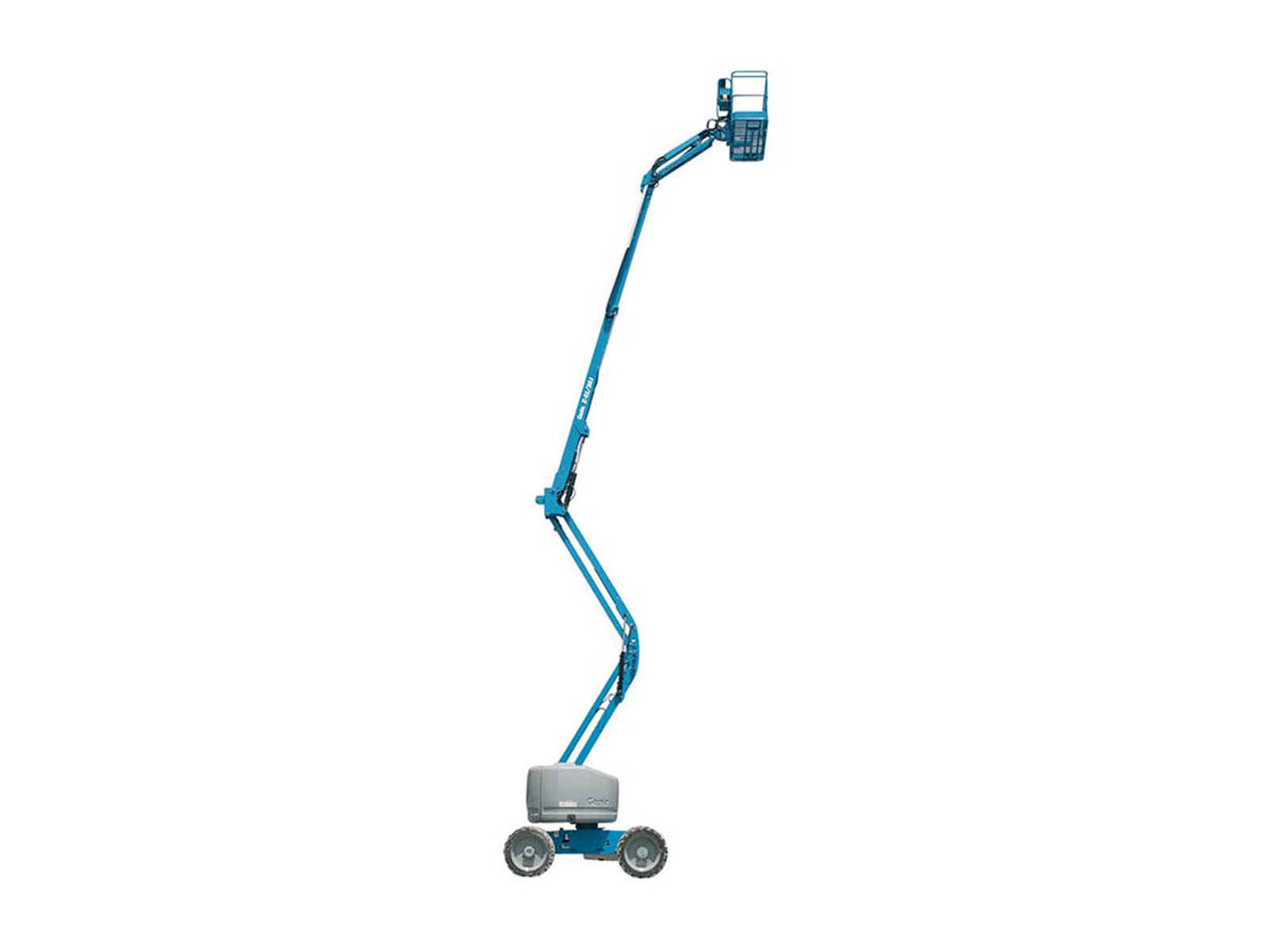

Genie Z-51/30J RT – 17.6m Max Working Height Boom lift
Diesel Powered Articulating Boom Lift
Key Specs
- Max Working Height: 17.59 m / 57.7 ft
- Platform Capacity: 227 kg / 500 lb
| Specifications | |
| Max Working Height | 17.59 m |
| Max Platform Height | 15.59 m |
| Max Outreach (horizontal) | 9.37 m |
| Platform Size | 0.76 x 1.83 m |
| Max Platform Capacity | 227 kg |
| Weight | 7,394 kg |
| Power Source | Diesel |
| Stowed Length | 7.38 m |
| Stowed Width | 2.29 m |
| Stowed Height | 2.13 m |
| Ground Clearance | 0.37 m |
Overview
• Full-time active oscillating axle helps maintain traction on rough terrain
• 4WD and 45% gradeability for superior terrainability
• Dual parallelogram and fully proportional controls for precise boom positioning and smooth performance
• 1.52 m (5 ft) articulating jib with a 135° vertical rotation to accurately position workers
• 160° hydraulic platform rotation and self-levelling platform for precise platform positioning and easy operation
