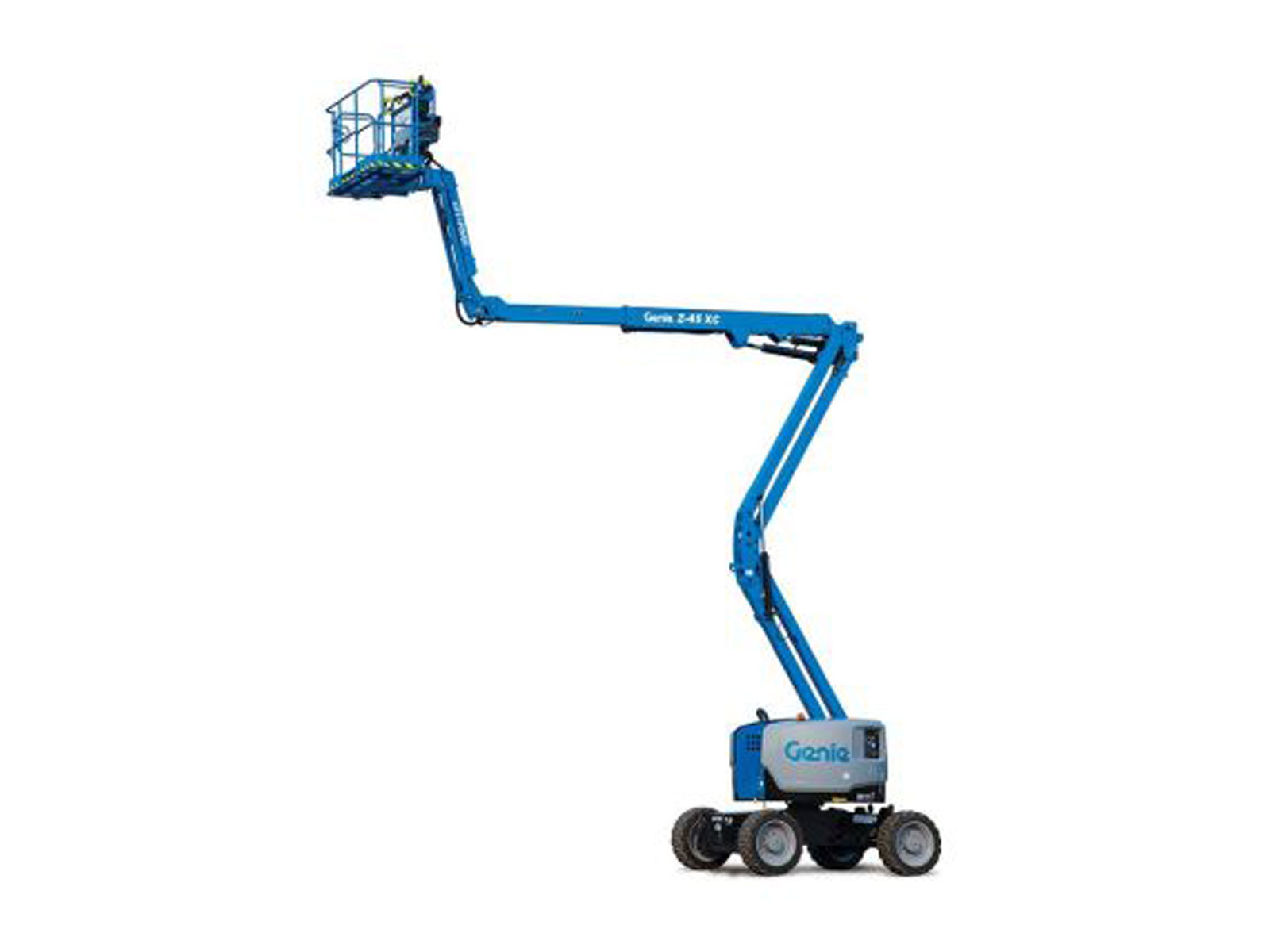

Genie Z-45 XC – 15.87m Max Working Height Boom lift
Diesel Powered Articulating Boom Lift
Key Specs
- Max Working Height: 15.87 m / 52 ft
- Platform Capacity: 454 kg / 1000 lb
| Specifications | |
| Max Working Height | 15.87 m |
| Max Platform Height | 13.87 m |
| Max Outreach (horizontal) | 7.55 m |
| Platform Size | 0.76 x 1.83 m |
| Max Platform Capacity | 454 kg |
| Weight | 7,421 kg |
| Power Source | Diesel |
| Stowed Length | 6.65 m |
| Stowed Width | 2.29 m |
| Stowed Height | 2.25 m |
| Ground Clearance | 0.37 m |
Overview
• Full-time active oscillating axle helps maintain traction on rough terrain
• 4WD and 45% gradeability for superior terrainability
• Dual parallelogram and fully proportional controls for precise boom positioning and smooth performance
• 1.52 m (5 ft) articulating jib with a 135° vertical rotation to accurately position workers
• Dual lifting capacity: unrestricted platform capacity of 300 kg (660 lb) and restricted capacity of 454 kg (1,000 lb)
