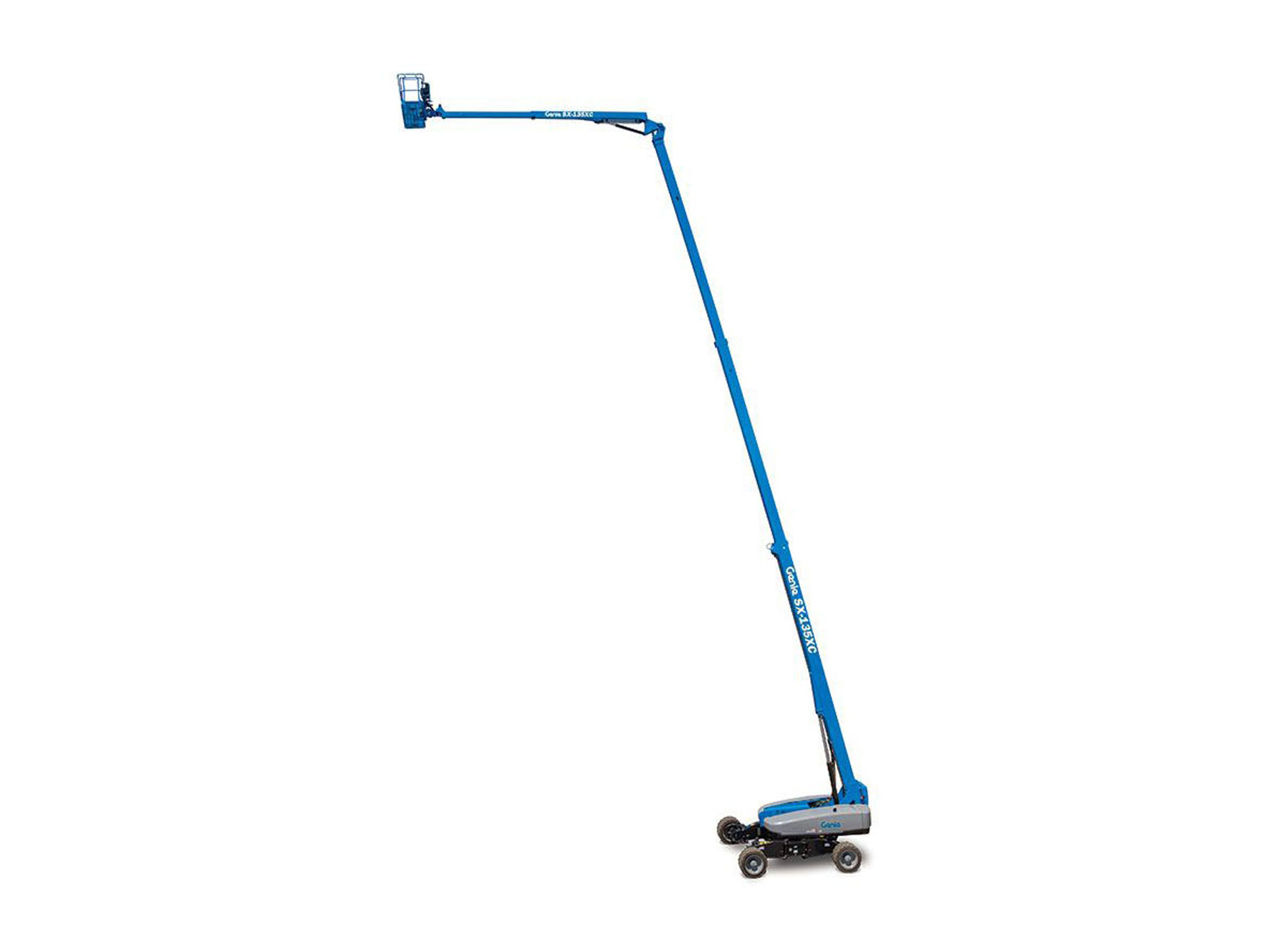

Genie SX-135 XC – 43.1m Max Working Height Boom lift
Diesel Powered Telescopic Boom lift
Key Specs
- Max Working Height: 43.15 m | 141 ft
- Platform Capacity: 300 kg ~ 454 kg | 660 lb ~ 1000 lb
| Specifications | |
| Max Working Height | 43.15 m |
| Max Platform Height | 41.15 m |
| Max Outreach (horizontal) | 27.43 m |
| Platform Size | 0.91 x 2.44 m |
| Max Platform Capacity | 454 kg |
| Weight | 21,273 kg |
| Power Source | Diesel |
| Stowed Length | 19.76 m |
| Stowed Width | 2.49 m |
| Stowed Height | 3.05 m |
| Ground Clearance | 0.38 m |
Overview

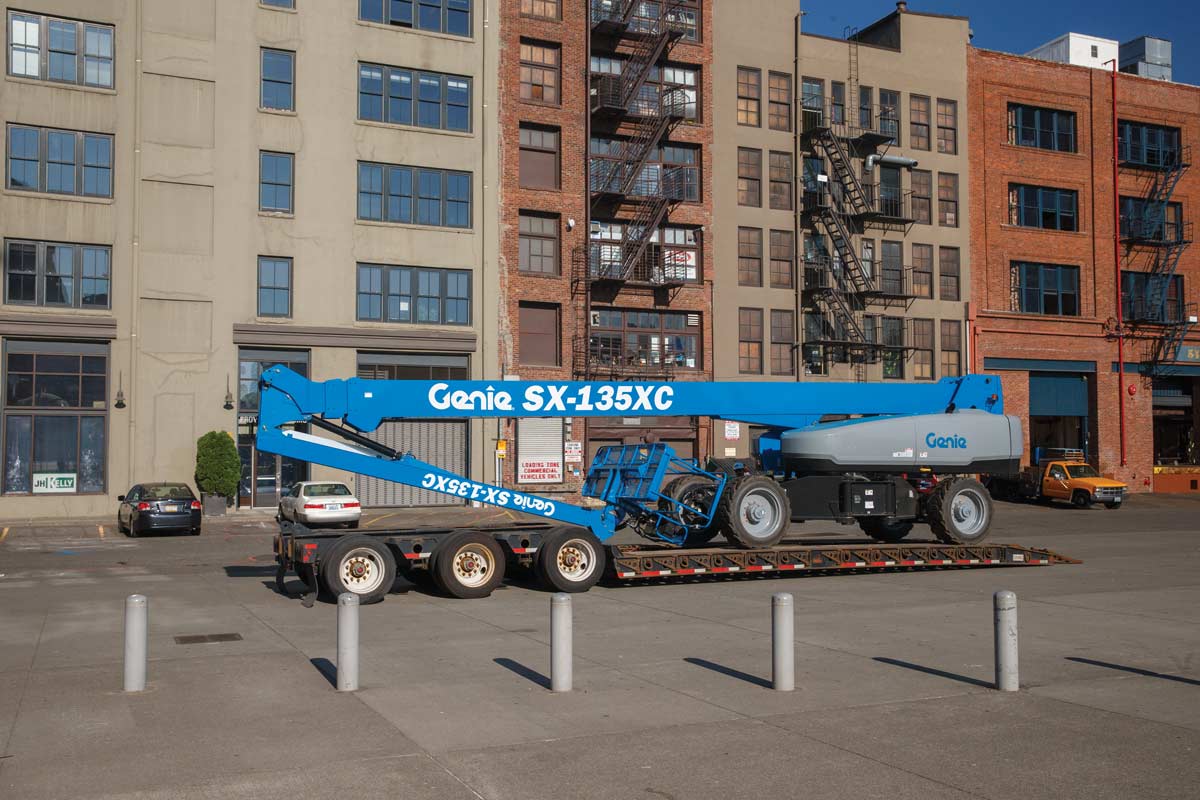

- Mini Genie XChassis™ design for easy transport
- 5.48 m to 9.14 m (18 to 30 ft) telescoping Jib-Extend™ with 125˚ articulation, for an increased range of motion
- Dual lifting capacity of 300 kg (660 lb) and 454 kg (1,000 lb) to lift increased loads and up to 3 operators
- Impressive outreach (27.43 m – 90 ft) and below-grade (6 m – 19 ft 8 in) capabilities
- Automatic envelope control and chassis tilt sensor technology for smooth operation
- Zero-load field calibration and onboard diagnostics maximize serviceability
