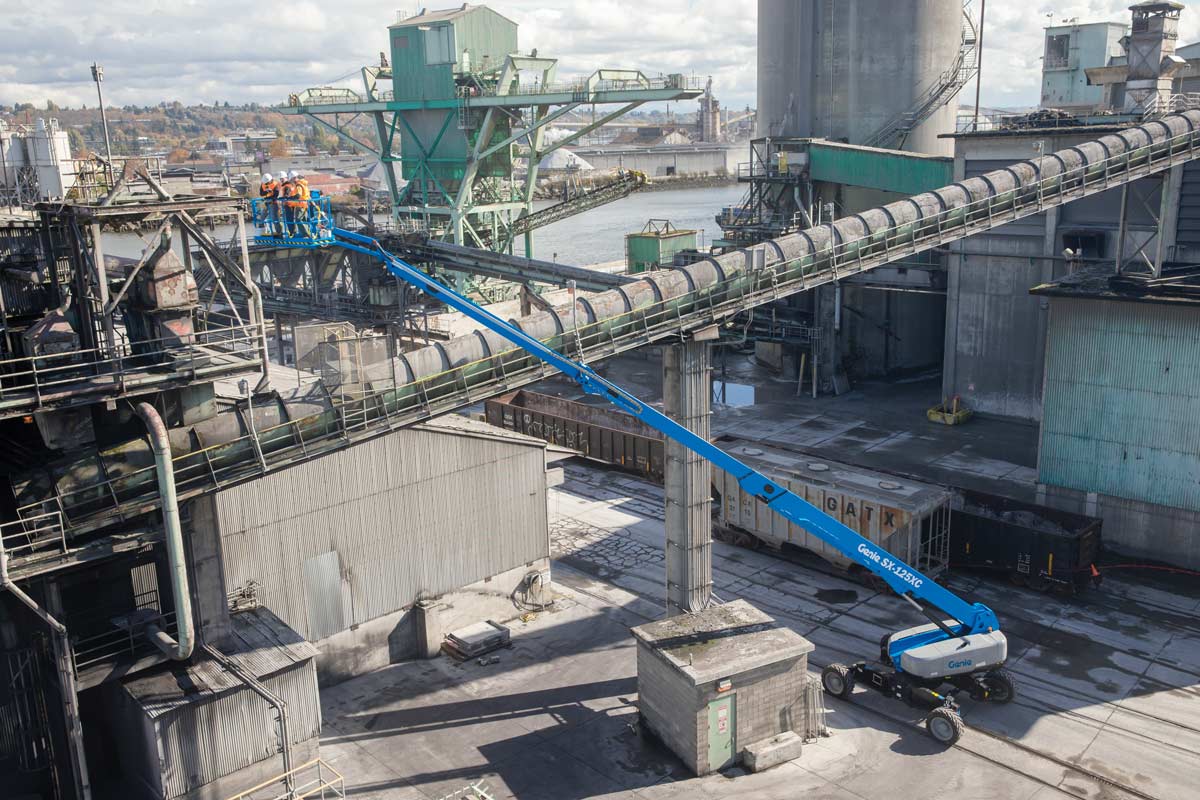

Genie SX-125 XC 4WD – 40.1m Max Working Height Boom lift
Diesel Powered Telescopic Boom lift
Key Specs
- Max Working Height: 40.10 m | 131.5 ft
- Platform Capacity: 300 kg ~ 454 kg | 660 lb ~ 1000 lb
| Specifications | |
| Max Working Height | 40.1 m |
| Max Platform Height | 38.1 m |
| Max Outreach (horizontal) | 24.38 m |
| Platform Size | 0.91 x 2.44 m |
| Max Platform Capacity | 454 kg |
| Weight | 20,700 kg |
| Power Source | Diesel |
| Stowed Length | 14.25 m |
| Stowed Width | 2.49 m |
| Stowed Height | 3.05 m |
| Ground Clearance | 0.38 m |
Overview
• Mini Genie XChassis™ design for easy transport
• 1.52 m (5 ft) robust articulating jib
• Dual lifting capacity of 300 kg (660 lb) and 454 kg (1,000 lb) to lift increased loads and up to 3 operators
• Impressive below-grade capabilities (2.69 m / 8 ft 1 in)
• Automatic envelope control and chassis tilt sensor technology for smooth operation
• Zero-load field calibration and onboard diagnostics maximize serviceability
