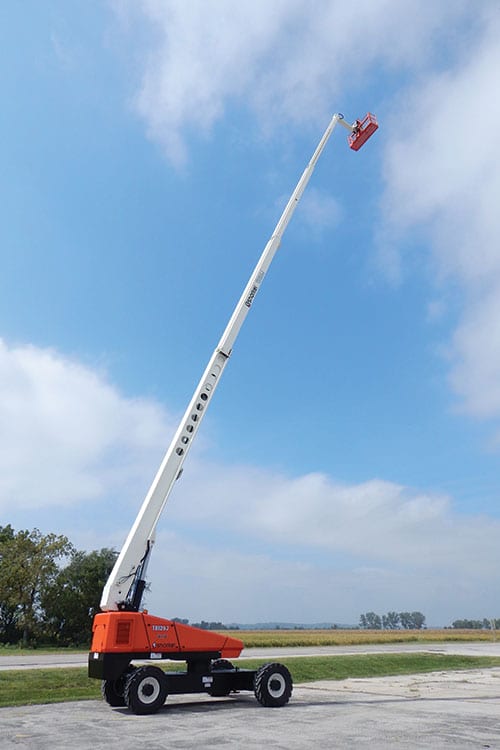

Snorkel TB126J – 40.4m Max Working Height Boom lift
Diesel Powered Telescopic Boom Lift
Key Specs
- Max. Working Height: 40.4m | 132.5 ft
- Platform Capacity: 227kg | 500 lb
Download Specs Sheet
| Specifications | |
| Max Working Height | 40.4 m |
| Max Platform Height | 38.4 m |
| Max Outreach (horizontal) | 19.2 m |
| Platform Size | 0.91 x 2.44 m |
| Max Platform Capacity | 227 kg |
| Weight | 19,000kg |
| Power Source | Diesel Kubota V2403 48kW/65hp |
| Stowed Length | 13.6 m |
| Stowed Width | 2.6 m |
| Stowed Height | 3.2 m |
| Ground Clearance | 0.33 m |
- Snorkel Guard™ secondary guarding system
- 2.0m 135º jib
- 4-wheel drive, braking & fixed front steering
- Hydraulic platform rotation
- 360º continuous turntable rotation
- Hydraulic extended rear axles w/ boom interlocks
- Built-in jack for raising chassis
- Flashing amber light
- Proportional drive, boom lift, swing, extend + jib (if equipped)
- Dual lanyard attachment points
- Foam filled tires
- Power line to platform
- 3.5º tilt & cut out
- 2 year parts & labor, 5 year structural warranty
