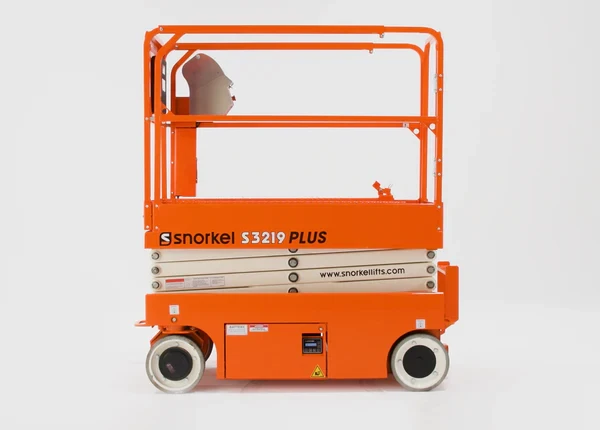

Snorkel S3219 Plus Electric Scissor Lift – 7.62m Max Working Height
SALE PACKAGE!
S3219 Plus + PT20 Trailer (See Specs)
Enquire Now – Simply fill out the request for a quote below!
Key Specs
- Max Working Height: 7.62 m | 25 ft
- Max Platform Capacity: 272kg | 600 lb
| Specifications | |
| Max Working Height | 7.62 m |
| Max Platform Height | 5.79 m |
| Overall Length | 1.80 m |
| Overall Width | 0.81 m |
| Stowed Height | 2.0 m |
| Extension length | 0.91 m |
| Platform Capacity | 272 kg |
| Weight | 1315.4 kg |
| Ground Clearance | 60 mm |
Standard Features
• 100% Operation 2 person indoor, 1 person outdoor

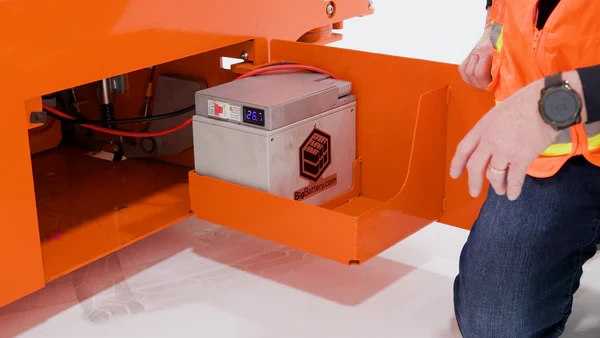

• Lithium battery operated scissor lift
• No hydraulic hoses
• Fits standard doorway without folding rails
• Roll-out-deck with dual locks
• Non-marking tires—largest wheels/tires in class
• Heavy-duty spindles/steering
• Heavy-duty fixed control box
• Descent and all-motion alarms
• ANSI A92.20 compliant
• Proportional control, all functions
• Platform overload protection
• 110 V (15 amp) power to platform

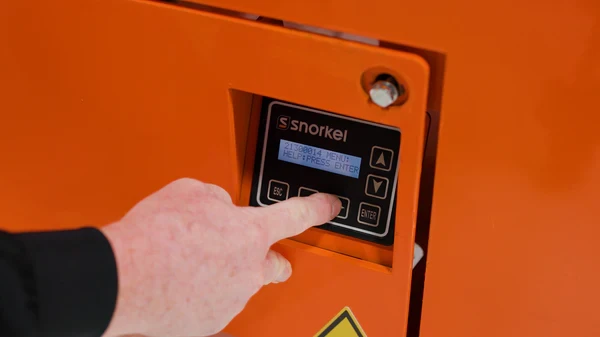

• On-board diagnostics, hour meter, battery meter

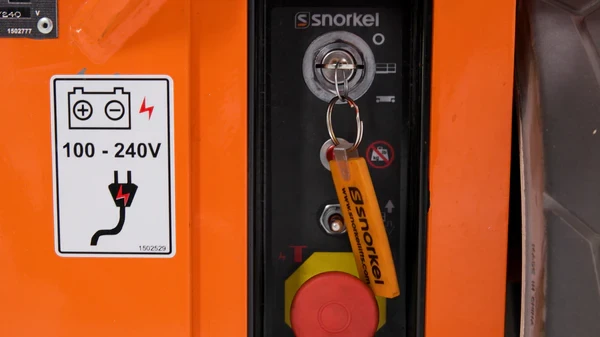

• Automatic integrated battery charger
• Manual safety lowering system
• Flashing amber strobe
• Forklift pockets, crane lifting points
• Lanyard attachment points
• Swing-out service trays
• 2-year parts & labor warranty
• 5-year lithium battery & structural warranty
