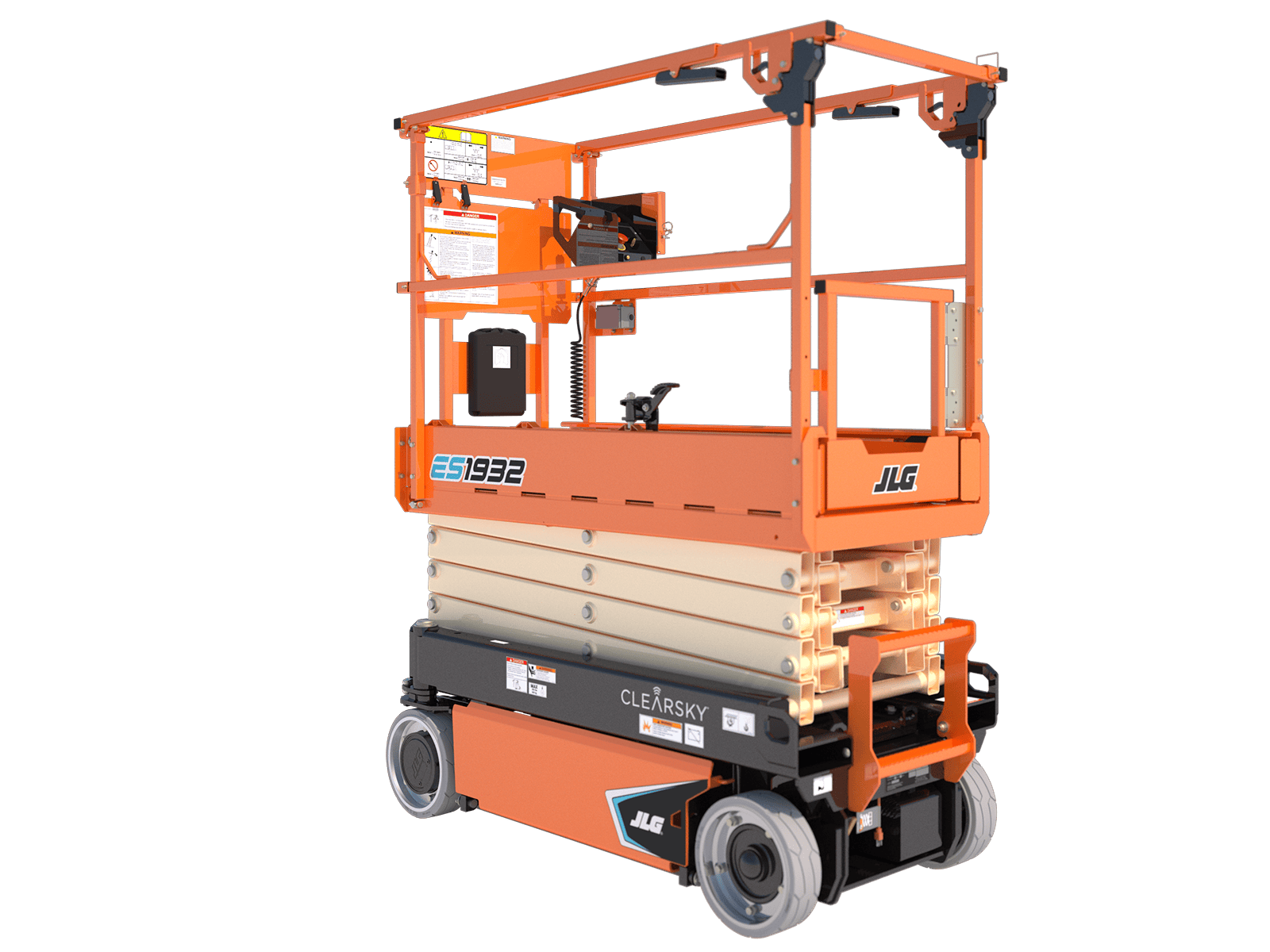

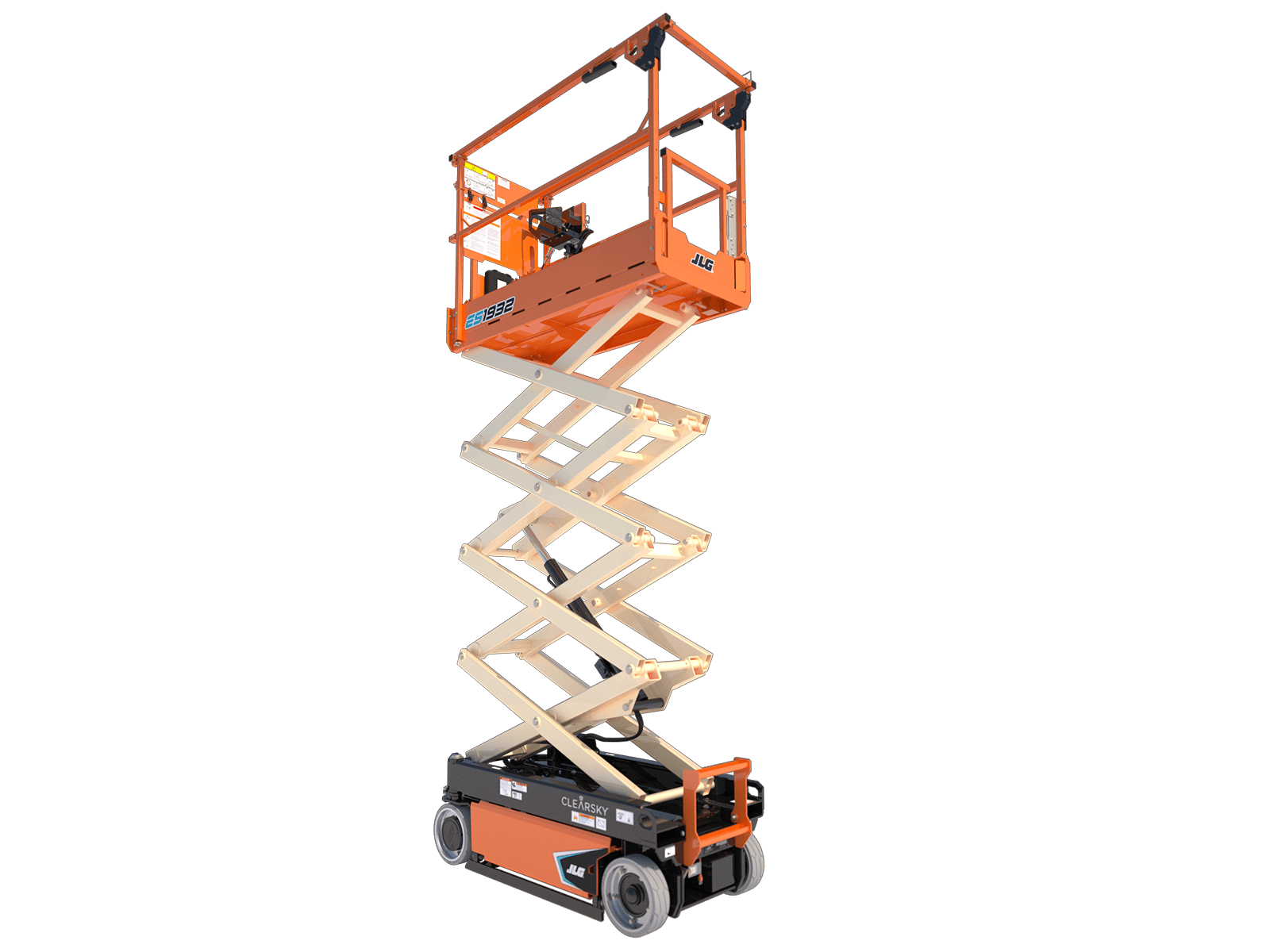

JLG ES1932 Electric Scissor Lift – 7.62m Max Working Height
SALE PACKAGE!
ES1932 + PT20 Trailer (See Specs)
Enquire Now – Simply fill out the request for a quote below!
Key Specs
- Max Working Height: 7.62 m / 25 ft
- Max Platform Capacity: 230 kg / 507 lb
| Specifications | |
| Max Working Height | 7.62 m |
| Max Platform Height | 5.8 m |
| Overall Length | 1.70 m |
| Overall Width | 0.81 m |
| Stowed Height | 1.99 m – 2.10 m |
| Extension length | 0.91 m |
| Platform Capacity | 230 kg |
| Weight | 1565 kg |
| Ground Clearance | 70 mm |
Standard Features
- 27 amp Multi-Function Universal Charger
- AC Receptacle in Platform
- Active Pothole Protection System
- All Motion Alarm
- Analyzer Port for Diagnostics
- Battery Condition Indicator
- Diamond Tread Steel Deck
- Dynamic Braking
- Fork Lift Pockets
- Foot-Actuated Deck Extension
- Greaseless Kingpin Joints
- Horn
- Hourmeter
- Lanyard Attach Points
- Lifting and Tie Down Points
- Lubrication Free Scissor Arm Bushings
- Manual Descent Cable
- Movable, Removable Platform Control
- Nickel Plated Pins
- Proportional Controls
- Removable Ladder
- Scissor Maintenance Prop
- Steel Swing-Out Doors
- Tilt Alarm and Light
- Variable Tilt Visual Zone Indicator
Additional information
| Brand |
|---|
