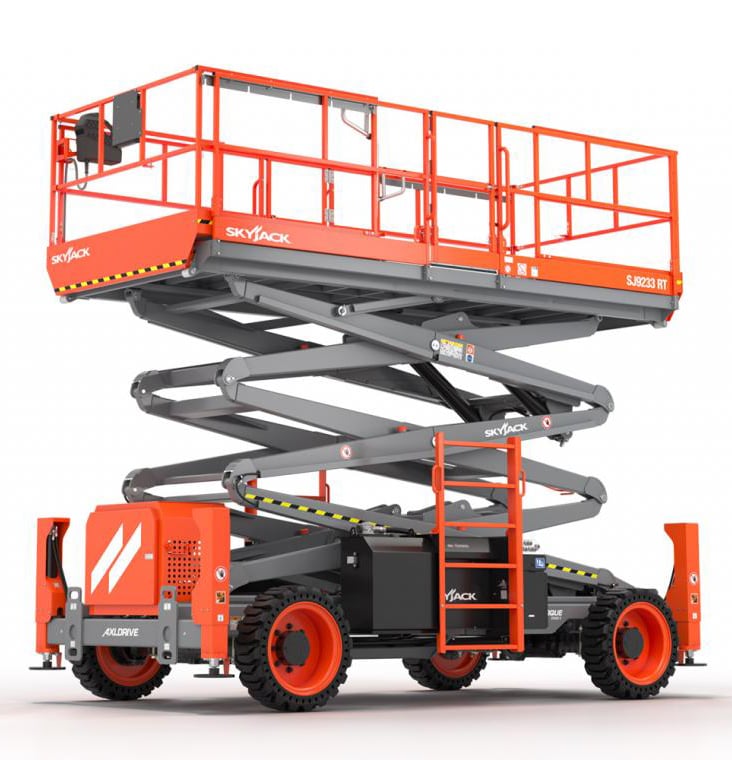

Skyjack SJ9233 RT Scissor Lift – 12.06m Max Working Height
Key Specs
- Max Working Height: 12.06 m / 39.5 ft
- Max Platform Capacity: 1247 kg | 2750 lb
| Specifications | |
| Max Working Height | 12.06 m |
| Max Platform Height | 10.06 m |
| Platform Length (Extended) | 7.12 m |
| Platform Width | 1.90 m |
| Platform Capacity | 1,247 kg |
| Weight | 6,446 kg |
| Overall Length | 4.42 m |
| Overall Width | 2.30 m |
| Stowed Height (Rails Up) | 2.73 m |
| Stowed Height (Rails Down) | 1.95 m |
| Ground Clearance | 260 mm |
| Power Source | Diesel |
Standard Features
■ AXLDRIVE™ Axle-based 4WD system
■ Operator controlled locking rear differential and limited slip
front differential
■ Drivable at full height (except on SJ9253 RT)
■ Up to 40% gradeability
■ Wet disc SAHR brakes (rear axle)
■ SKYCODED™ Colour coded and numbered wiring system
■ On-board visual interface with diagnostic capabilities
■ Kubota D1305 diesel engine
■ ECOSTART anti-engine idle
■ Auto levelling outriggers
■ Self-centering scissor design to support dual extension decks
■ Lockable power disconnect switch
■ Flashing Light
■ Proportional controls
■ Up to 1,247 kg capacity
■ Oversized platform with minimal clearance over side of machine
■ Fold down hinged railing system
■ Full height spring hinged entry gates
■ Dual 1.52 m roll-out extension decks
■ High strength and impact resistant composite control box
■ Overload sensing system
■ Wiring for AC outlet on platform
■ Tilt alarm (4.5° x 2.5°) with drive and lift cut-out
■ Single point emergency lowering
■ Hourmeter
■ Operator horn
■ Lanyard attachment points
■ All motion audible alarm
■ Tie down / lifting lugs
■ Grip lug, non-marking solid tyres
■ Telematics ready
■ 5-year warranty on controller
