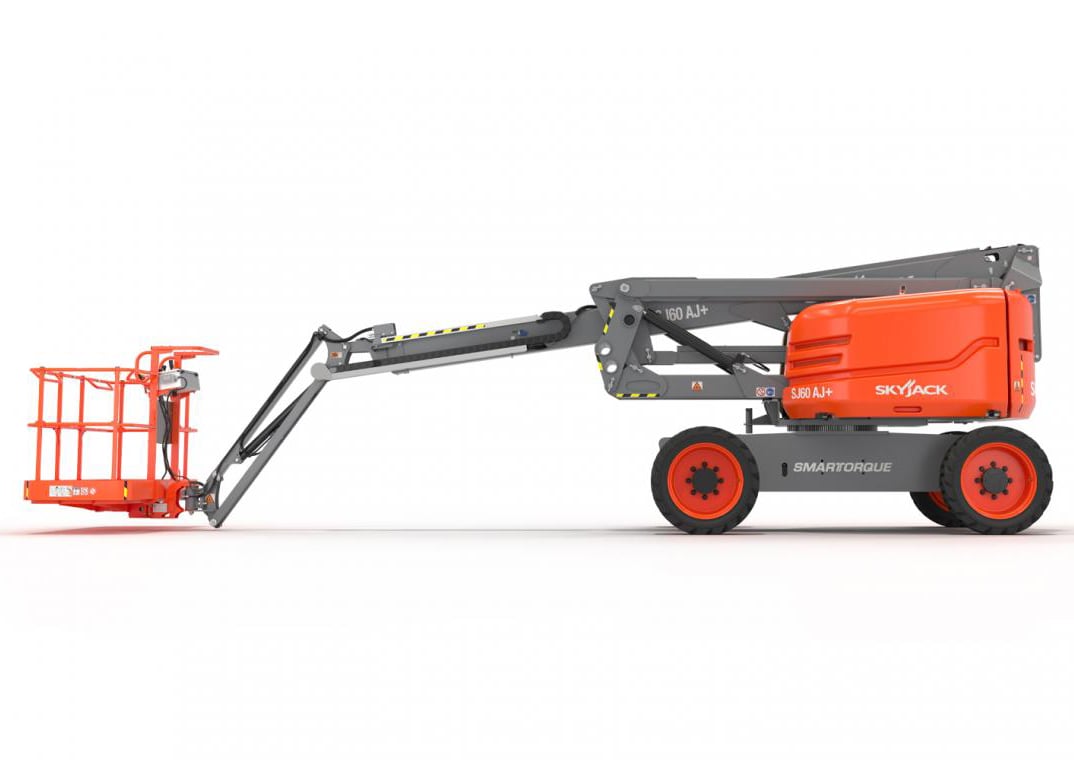

Skyjack SJ60 AJ Plus – 20.29m Max Working Height Boom lift
Diesel Powered Articulating Boom Lift
Key Specs
- Max Working Height: 20.29 m / 66.5 ft
- Max Platform Capacity: 454 kg | 1000 lb
| Specifications | |
| Max Working Height | 20.29 m |
| Max Platform Height | 18.29 m |
| Max Outreach (horizontal) | 11.56 m |
| Platform Size | 0.91 x 2.44 m |
| Max Platform Capacity | 454 kg |
| Weight | 8,557 kg |
| Power Source | Diesel Kubota D1305 18.5 KW (24.8 HP) |
| Stowed Length | 8.59 m |
| Stowed Width | 2.44 m |
| Stowed Height | 2.54 m |
| Ground Clearance | 0.33 m |
■ EASYDRIVE™ Direction sensing drive and steer controls
■ SPEEDYREACH™ Negative boom angle capability
■ SKYRISER™ True vertical rise
■ AXLDRIVE™ Axle-based 4WD system
■ ELEVATE Live
■ Operator controlled locking rear differential and limited slip
front differential
■ Oscillating steer axle
■ Drivable at full height
■ 40% Gradeability
■ Wet disc SAHR brakes (Front and rear axle)
■ Grip lug foam filled non-marking tyres
■ Dual module control system with SKYCODED™ colour coded
and numbered wiring
■ SMARTORQUE™ Kubota D1305 diesel engine
■ ECOSTART (Stop-Start system)
■ Swing up cowlings for easy access
■ Proportional controls
■ 300kg / 454kg Dual capacity
■ 0.91 x 2.44 m Platform
■ Bolt-in platform railings
■ Lanyard attachment points
■ Tri-entry sliding mid rails
■ Secondary Guarding Electrical (SGE)
■ Overload sensing system
■ Wiring for AC outlet on platform
■ Tilt alarm (5.0° x 5.0°) with drive and lift cut-out
■ Single point emergency lowering
■ 360° Continuous turret rotation
■ Tie down/lifting lugs
■ Hourmeter
■ Operator horn
■ Lockable power disconnect switch
■ 7.5 kW Generator (Includes hydraulic oil cooler)
■ White noise motion alarm
■ Flashing Light
