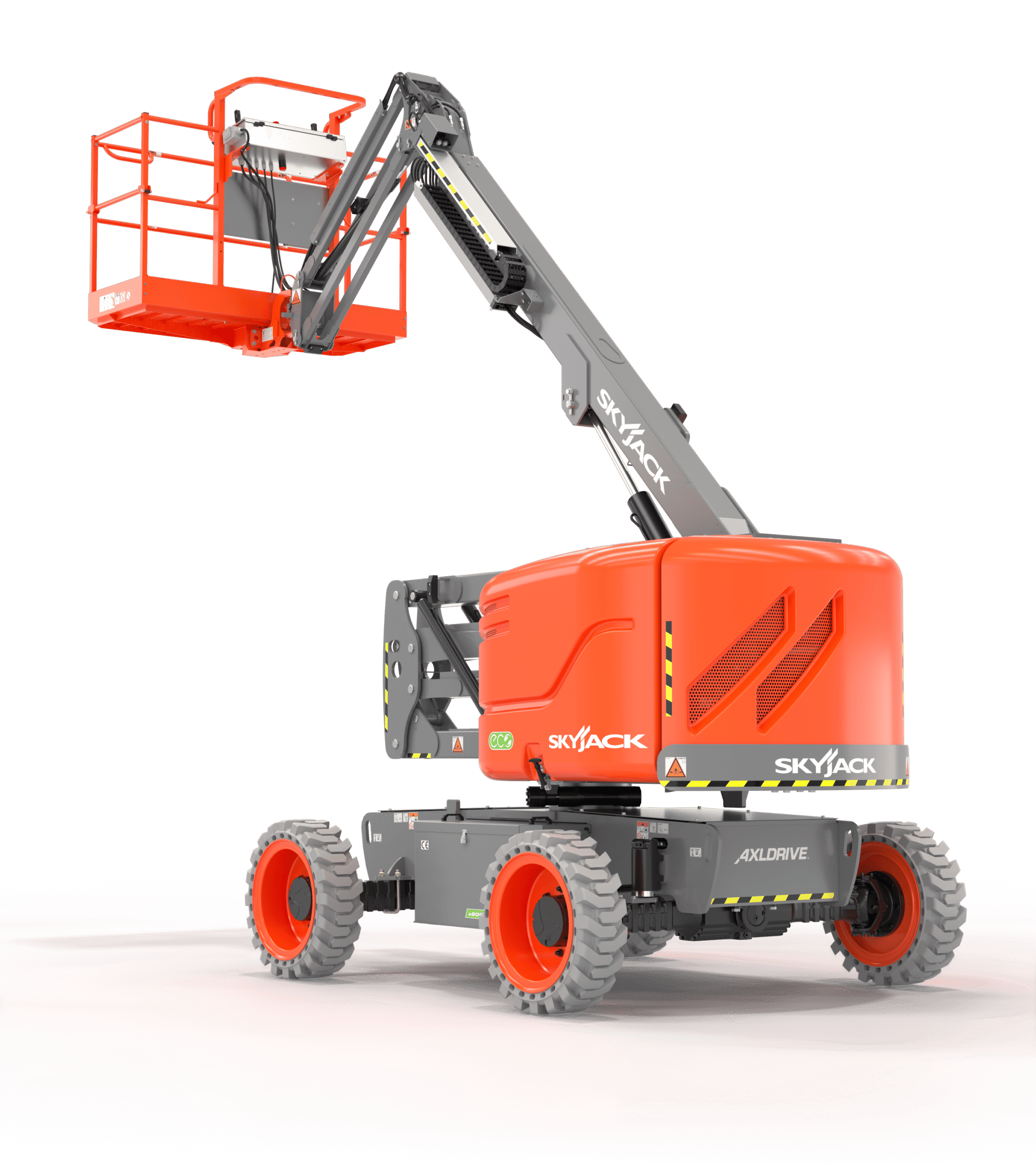

Skyjack SJ45 AJE Plus – 15.7m Max Working Height Electric Boom lift
Electric Powered Articulating Boom Lift
Key Specs
- Max Working Height: 15.72 m / 51.5 ft
- Max Platform Capacity: 300 kg | 661 lb
| Specifications | |
| Max Working Height | 15.72 m |
| Max Platform Height | 13.72 m |
| Max Outreach (horizontal) | 6.93 m |
| Platform Size | 0.76 x 1.83 m |
| Max Platform Capacity | 300 kg |
| Weight | 5,488 kg |
| Power Source | Electric 415 Ah AGM batteries |
| Stowed Length | 4.75 m |
| Stowed Width | 2.29 m |
| Stowed Height | 2.06 m |
| Ground Clearance | 0.39 m |
■ 23A automatic battery charger with battery condition indicator
■ 415 Ah AGM batteries
■ Integrated electric traction motor brake
■ Low battery warning indicator light
■ EASYDRIVE™ Direction sensing drive and steer controls
■ SKYRISER™ True vertical rise
■ AXLDRIVE™ Axle-based 4WD system
■ Operator controlled locking rear differential and limited slip
front differential
■ Oscillating steer axle
■ Drivable at full height
■ 45% Gradeability
■ Non-marking tyres
■ SKYCODED™control system
■ Swing up cowlings for easy access
■ Proportional controls
■ Up to 454 kg capacities
■ Bolt-in platform railings
■ Lanyard attachment points
■ Dual-entry sliding mid rails (SJ45 AJE+)
Tri-entry sliding mid rails (SJ60 AJE+)
■ Secondary Guarding Electrical (SGE)
■ Overload sensing system
■ Wiring for AC outlet on platform
■ Tilt alarm (5.0° x 5.0°) with drive and lift cut-out
■ Single point emergency lowering
■ 355° Non-continuous turret rotation
■ Tie down/lifting lugs
■ Hourmeter
■ Operator horn
■ Lockable power disconnect switch
