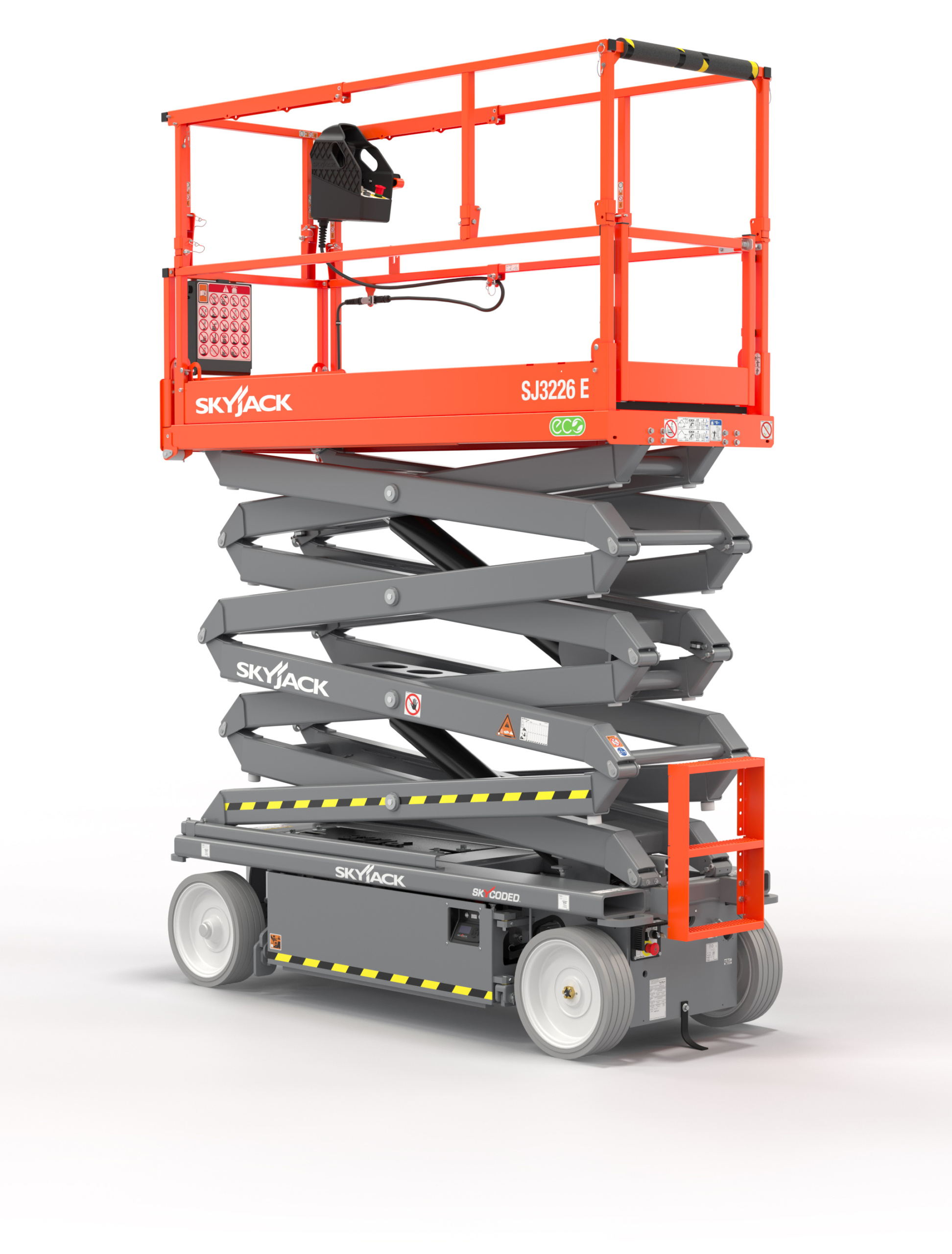

Skyjack SJ3226 Electric Scissor Lift – 9.79m Max Working Height
Key Specs
- Max Working Height: 9.79 m / 32.1 ft
- Max Platform Capacity: 227 kg | 500 lb
| Specifications | |
| Max Working Height | 9.79 m |
| Max Platform Height | 7.79 m |
| Overall Length | 2.32 m |
| Overall Width | 0.84 m |
| Stowed Height | 1.93 m – 2.29 m |
| Extension length | 0.91 m |
| Platform Capacity | 227 kg |
| Weight | 1900 kg |
| Ground Clearance | 102 mm |
Standard Features
■ Drivable at full height
■ Variable speed, rear two wheel hydraulic drive
■ Dual holding brakes
■ SKYCODED™ Colour coded and numbered wiring system
■ On-board visual interface with diagnostic capabilities
■ Shroud style, impact resistant composite control box with
extended cable
■ Proportional controls for drive & lift functions
■ Tilt sensor (3.5° x 1.5°)
■ 0.91 m Roll out extension deck
■ 24V DC Power source
■ Low voltage battery protection
■ 25% Gradeability
■ Solid rubber, non-marking tyres
■ Pothole protection system
■ Wiring for AC outlet at platform
■ Tilt alarm with drive & lift cut-out
■ All motion audible alarm
■ Lanyard attachment points
■ Operator horn
■ Forklift pockets and tie down/lift lugs
■ Overload sensing system
■ Fold down hinged railing system
■ Half height spring hinged entry gate
■ Telematics ready
■ White noise alarm
■ Flashing light
