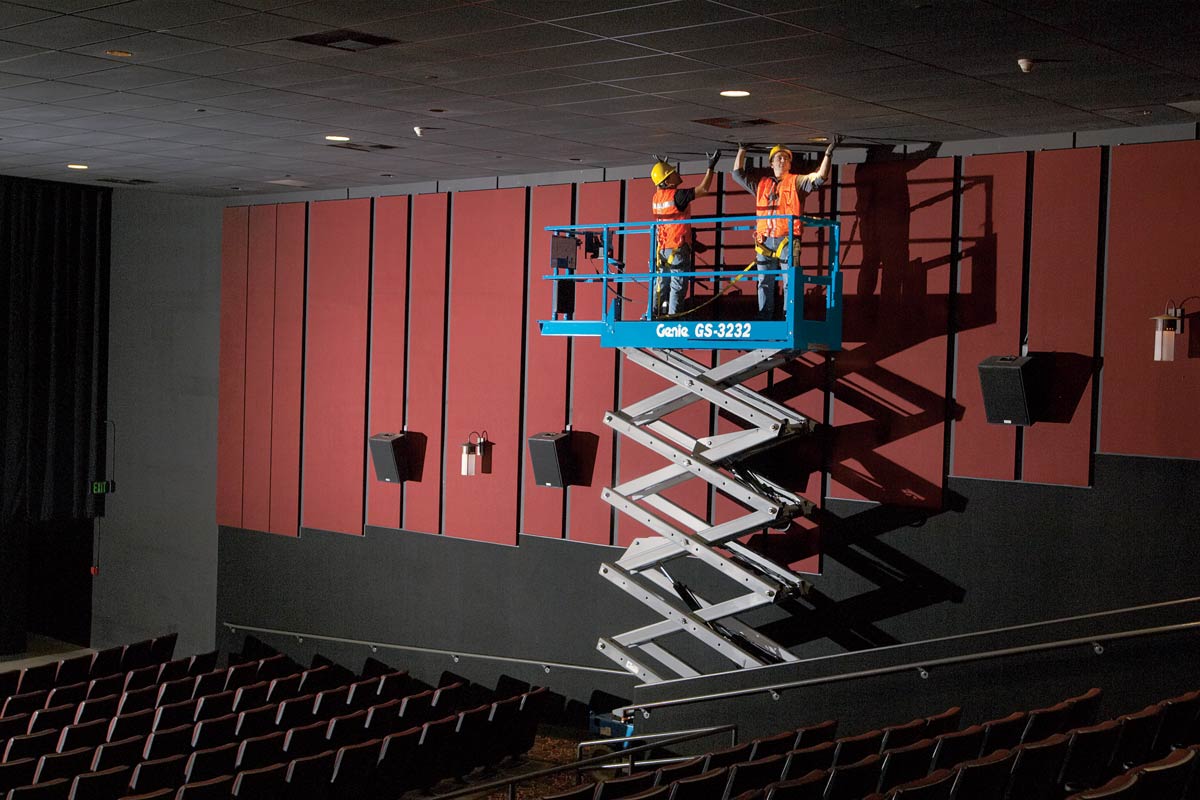

Genie GS-3232 Electric Scissor Lift – 11.78m Max Working Height
Key Specs
- Max Working Height: 11.78 m / 38.6 ft
- Max Platform Capacity: 227kg / 500 lb
| Specifications | |
| Max Working Height | 11.78 m |
| Max Platform Height | 9.78 m |
| Overall Length | 3.33 m |
| Overall Width | 0.81 m |
| Stowed Height | 2.08 m – 2.44 m |
| Extension length | 0.91 m |
| Platform Capacity | 227 kg |
| Weight | 2434 kg |
| Ground Clearance | 120 mm |
Standard Features
- Easy to maneuver in tight spaces
- Folding rails with half-height swing gate come standard
- Automatic levelling hydraulic outrigger system levels machine on slopes up to 5˚
- Link stack is centered at full elevation and platform extension for machine rigidity
- Large platform workspace with 0.91 m (36 in) roll-out platform extension
- Swing out components trays for easy access
- User-friendly Smart Link™ control and diagnostic system
