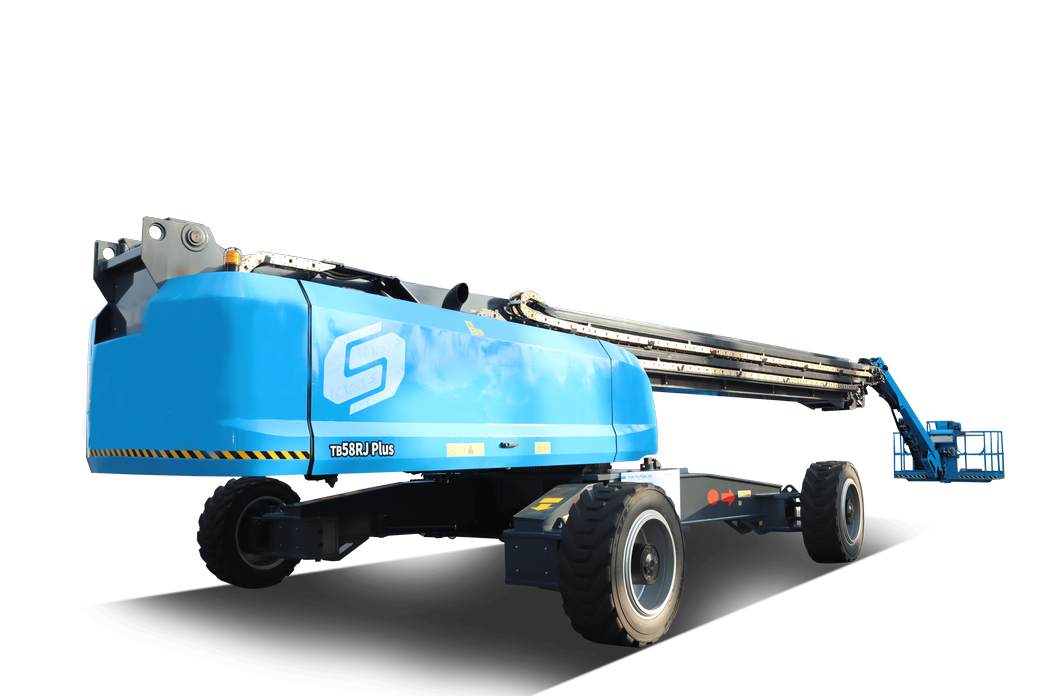

Sinoboom TB58RJ Plus – 60m Max Working Height Boom lift
Diesel Powered Telescopic Boom Lift
Key Specs
- Max Working Height: 59.9 m | 196.5 ft
- Max Platform Capacity: 454 kg | 1000 lb
| Specifications of Sinoboom TB58RJ | |
| Max Working Height | 59.9 m |
| Max Platform Height | 57.9 m |
| Max Outreach (horizontal) | 24.4 m |
| Platform Size | 0.91 x 2.44 m |
| Max Platform Capacity | 454 kg |
| Weight | 27,600 kg |
| Power Source | Diesel Cummins QSF3.8t3TC99 74 kW |
| Stowed Length | 20.07 m |
| Stowed Width | 2.49 m |
| Stowed Height | 3.1 m |
| Ground Clearance | 0.33 m |
Precision Performance
■ Platform control unit equips 3 joysticks featuring
proportional control, which is easy to operate and reach
the work targets
Intelligent Maintenance
■ Industry leading 7″ screen displays faults and status
information, for easy reference, reducing service
technician assistance. Workers can complete tasks under
the remote guidance of qualified service technicians.
Convenient for fleet managers to quickly access live
machine and maintenance information
Safe and Reliable
■ Machine equips safety Rexroth controller with dual backup CPU and
compliant with ISO 13849, high performance level d, combined
with dual channel sensors offering an extremely safe redundancy
