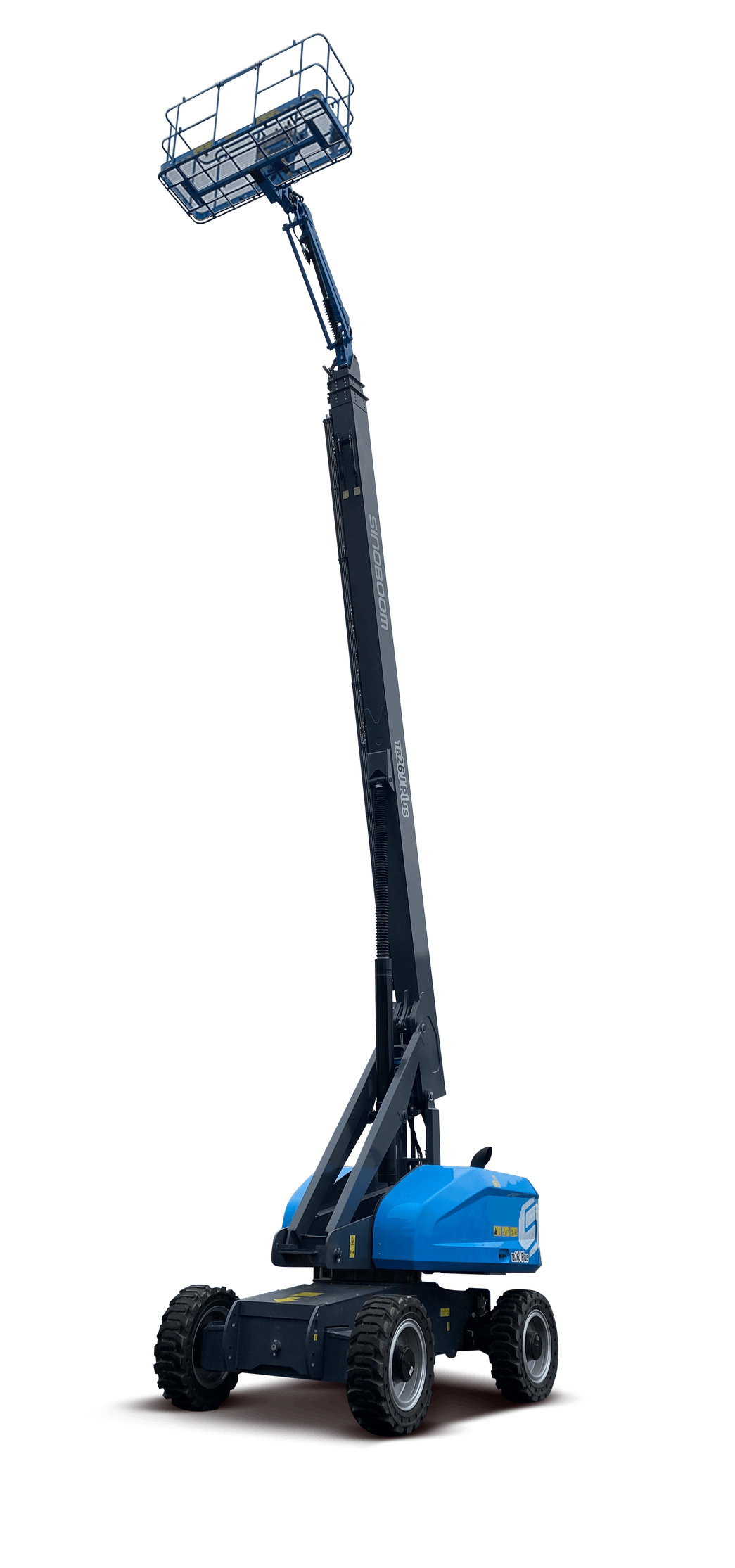

Sinoboom TB26J Plus – 28.3m Max Working Height Boom lift
Engine Powered Telescopic Boom Lift
Key Specs
- Max Working Height: 28.3 m | 92.8 ft
- Max Platform Capacity: 454 kg | 1000 lb
| Specifications | |
| Max Working Height | 28.3 m |
| Max Platform Height | 26.3 m |
| Max Outreach (horizontal) | 20 m |
| Platform Size | 0.91 x 2.44 m |
| Max Platform Capacity | 454 kg |
| Weight | 17,000 kg |
| Power Source | Diesel Cummins, QSF2.8t3TC72, 54 kW |
| Stowed Length | 12.5 m |
| Stowed Width | 2.49 m |
| Stowed Height | 2.88 m |
| Ground Clearance | 0.46 m |
High Capacity
■ Plus series boom lifts hold up to 1,000 lb (restricted)/ 661lb
(unrestricted)platform capacity allowing you to carry up to 3 occupants
plus material and tools to get your job done easily
Oscillating Function
■ Both the active and inactive states have an oscillating function, allowing work
to be performed on inclines and uneven ground
Intelligent Maintenance
■ Industry leading 7″ screen displays faults and status information, for easy
reference, reducing service technician assistance. Workers can complete tasks
under the remote guidance of qualified service technicians. Convenient for
fleet managers to quickly access live machine and maintenance information
Precision Performance
■ The upper control box is equipped with 3 full-proportional handles for gradual
control of boom lifting, telescoping, turntable rotation and driving speed.
Operate with smooth starting and stopping and precision approach to your
worksite target
