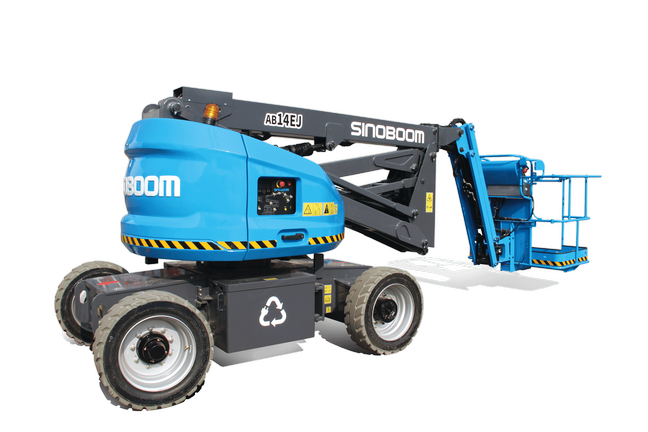

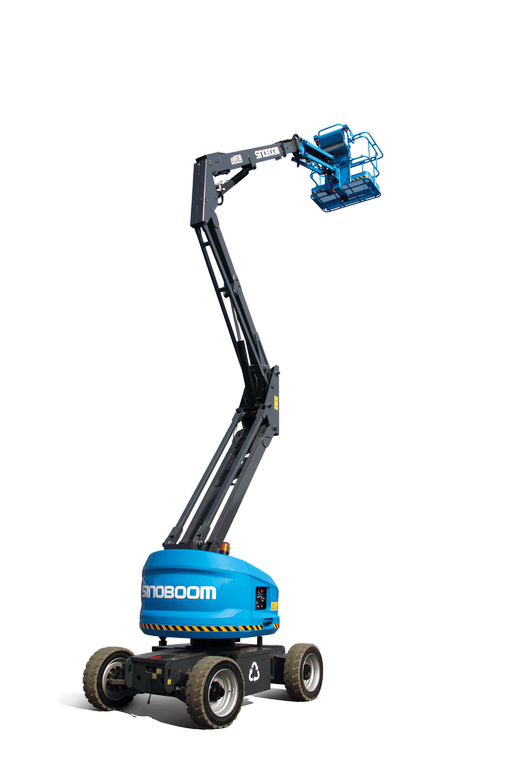

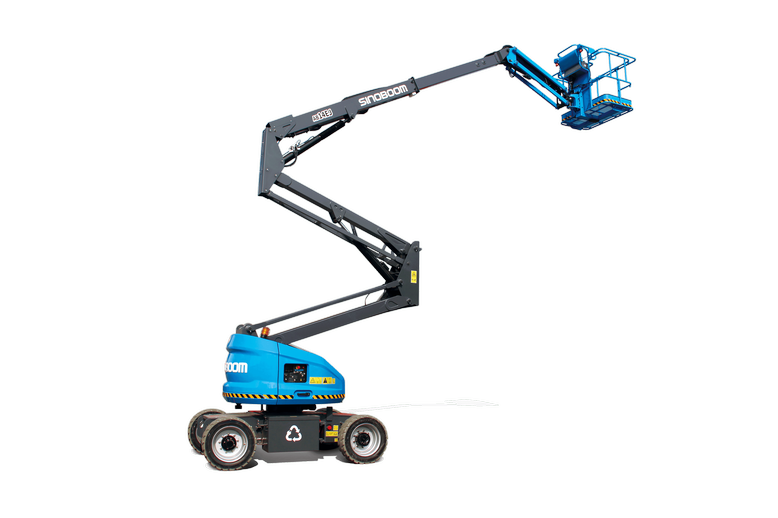

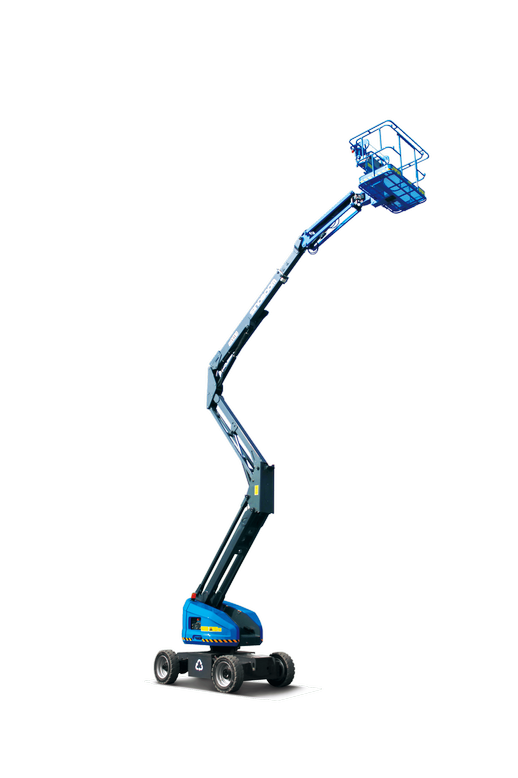

Sinoboom AB14EJ – 16m Max Working Height Boom lift
Electric Powered Articulating Boom Lift
Key Specs
- Maximum Working Height: 16 m | 52.5 ft
- Platform Capacity: 230 kg | 507 lb
| Specifications | |
| Max Working Height | 16 m |
| Max Platform Height | 14 m |
| Max Outreach (horizontal) | 7.6 m |
| Platform Size | 0.85 x 1.45 m |
| Max Platform Capacity | 230 kg |
| Weight | 7,160 kg |
| Power Source | Electric 48 V, 390 Ah (AGM batteries) |
| Stowed Length | 6 m |
| Stowed Width | 1.73 m |
| Stowed Height | 2.0 m |
| Ground Clearance | 0.22 m |
Suitable for Narrow Spaces
■ Narrow body with almost zero tail sweep
Green
■ Fully battery-powered, silent, zero emissions, long battery life, especially
suitable for indoor work
Precision Performance
■ Joysticks with variable proportional control, accuracy in reaching the
operation target
