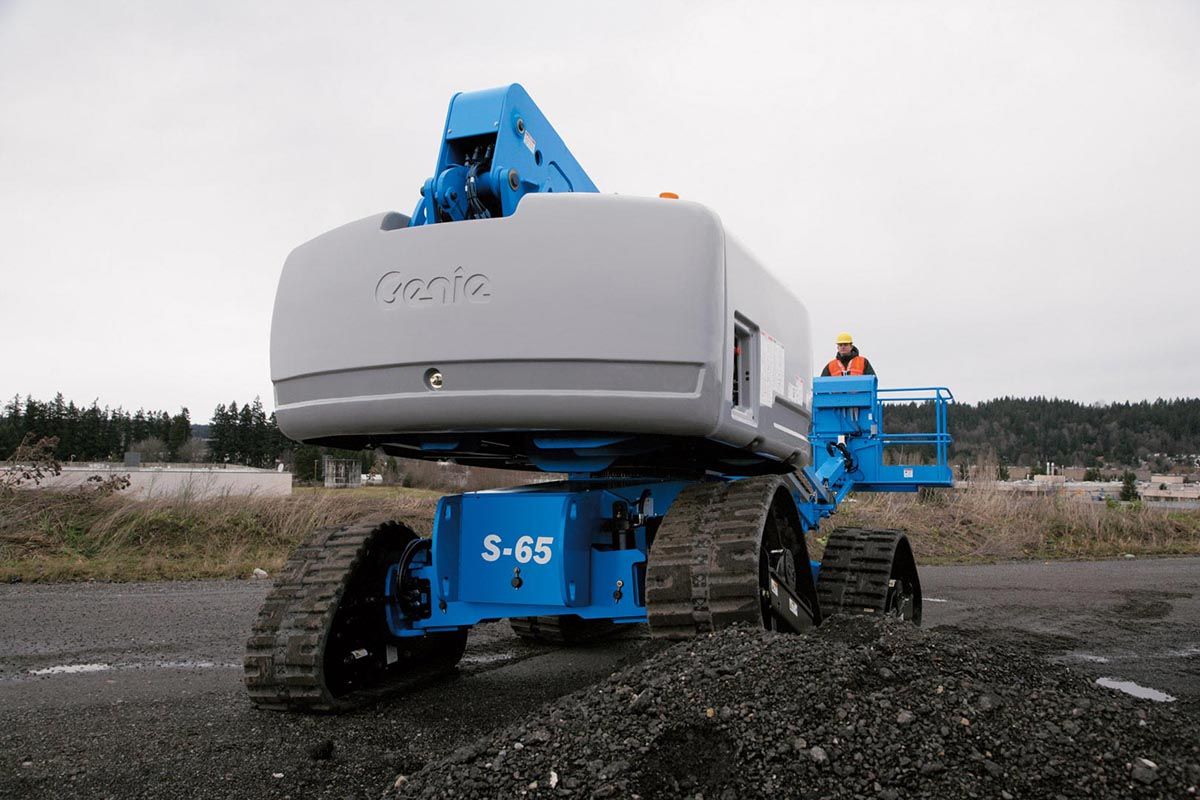

Genie S-65 TRAX – 21.8m Max Working Height Boom lift
Diesel Powered Telescopic Boom lift
Key Specs
- Max Working Height: 21.86 m | 71.5 ft
- Platform Capacity: 454 kg | 1000 lb
| Specifications | |
| Max Working Height | 21.86 m |
| Max Platform Height | 19.86 m |
| Max Outreach (horizontal) | 16.51 m |
| Platform Size | 0.91 x 2.44 m |
| Max Platform Capacity | 454 kg |
| Weight | 13,098 kg |
| Power Source | Diesel |
| Stowed Length | 9.76 m |
| Stowed Width | 2.48 m |
| Stowed Height | 2.87 m |
| Ground Clearance | 0.47 m |
Overview
- Full-time active oscillating axle and full-time positive traction help maintain traction on rough terrain
- 4WD and 45% gradeability for superior terrainability
- Patented track design featuring an independent triangular track at each corner of the unit, swivelling vertically up to 20° for a smooth drive on rough ground conditions
- 30° steer angle for easy manoeuvring
- 1.52 m (5 ft) articulating jib with a 135° range of motion to accurately position workers
- 160° hydraulic platform rotation and self-levelling platform for precise platform positioning and easy operation
