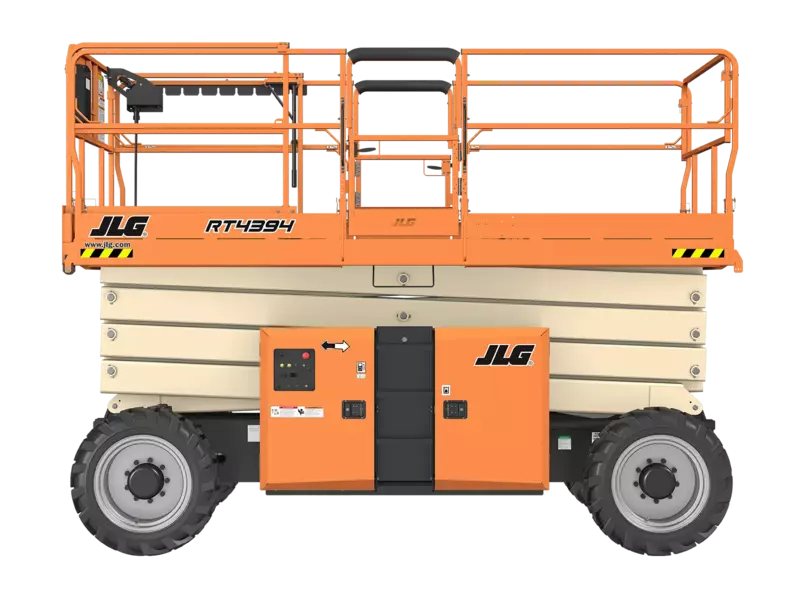

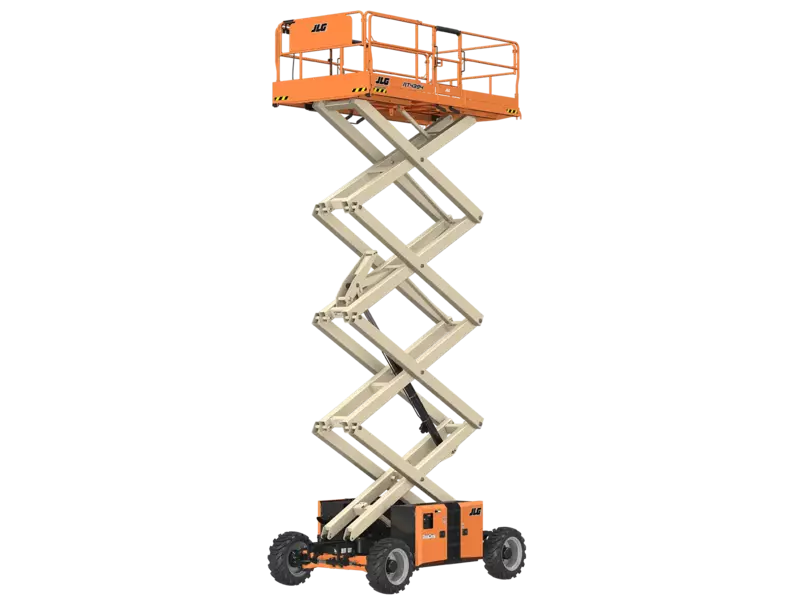

JLG RT4394 RT Electric Scissor Lift – 15.11m Max Working Height
- Working Height: 15.11 m / 49.6 ft
- Platform Capacity: 680 kg / 1500 lb
| Specifications | |
| Max Working Height | 15.11 m |
| Max Platform Height | 13.11 m |
| Platform Length (Extended) | 5.0 m |
| Platform Width | 1.80m |
| Platform Capacity | 680 kg |
| Weight | 6,914 kg |
| Overall Length | 4.9 m |
| Overall Width | 2.3 m |
| Stowed Height (Rails Up) | 3 m |
| Stowed Height (Rails Down) | 2.19 m |
| Ground Clearance | 345 mm |
| Power Source | Diesel |
Standard Features
- 110V-AC Receptacle in
Platform - 4-ft (1.22-m) Manual Deck
Extension - 4-Wheel Drive
- 70.5 x 149.8-in (1.8 x 3.8-m), All Steel Platform with Aluminum Deck
- Adjustable, Removable Platform Control Station
- All Motion Alarm
- Automatic Transmission
- ClearSky Smart Fleet™ Hardware (CS550)
- Fold-Down Handrails
- Horn
- LED Motion/Amber Beacon (CS550)
- Oscillating Axle
- Proportional Drive/Lift Up/Lift Down
- Self-Closing Gate
- Three-speed Drive Select
- Tilt Light and Alarm
