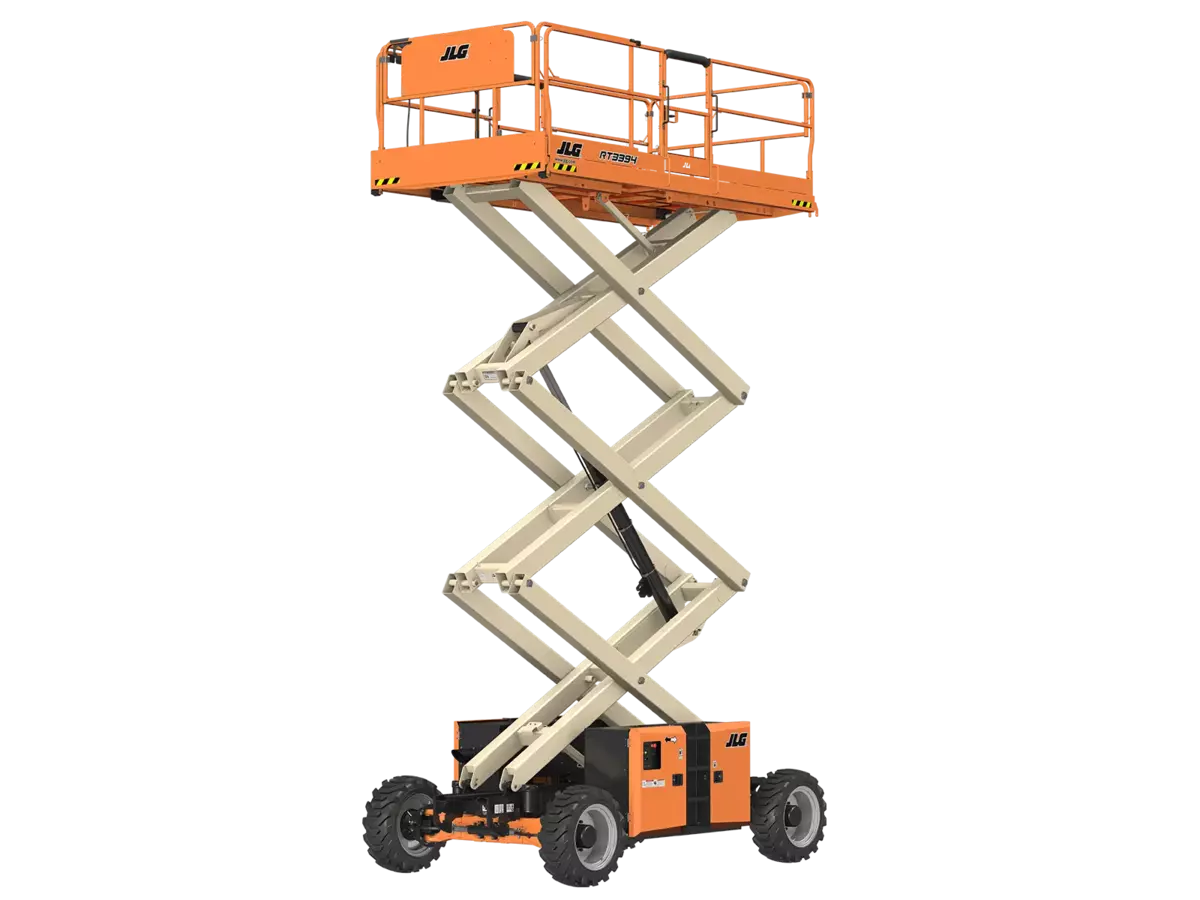

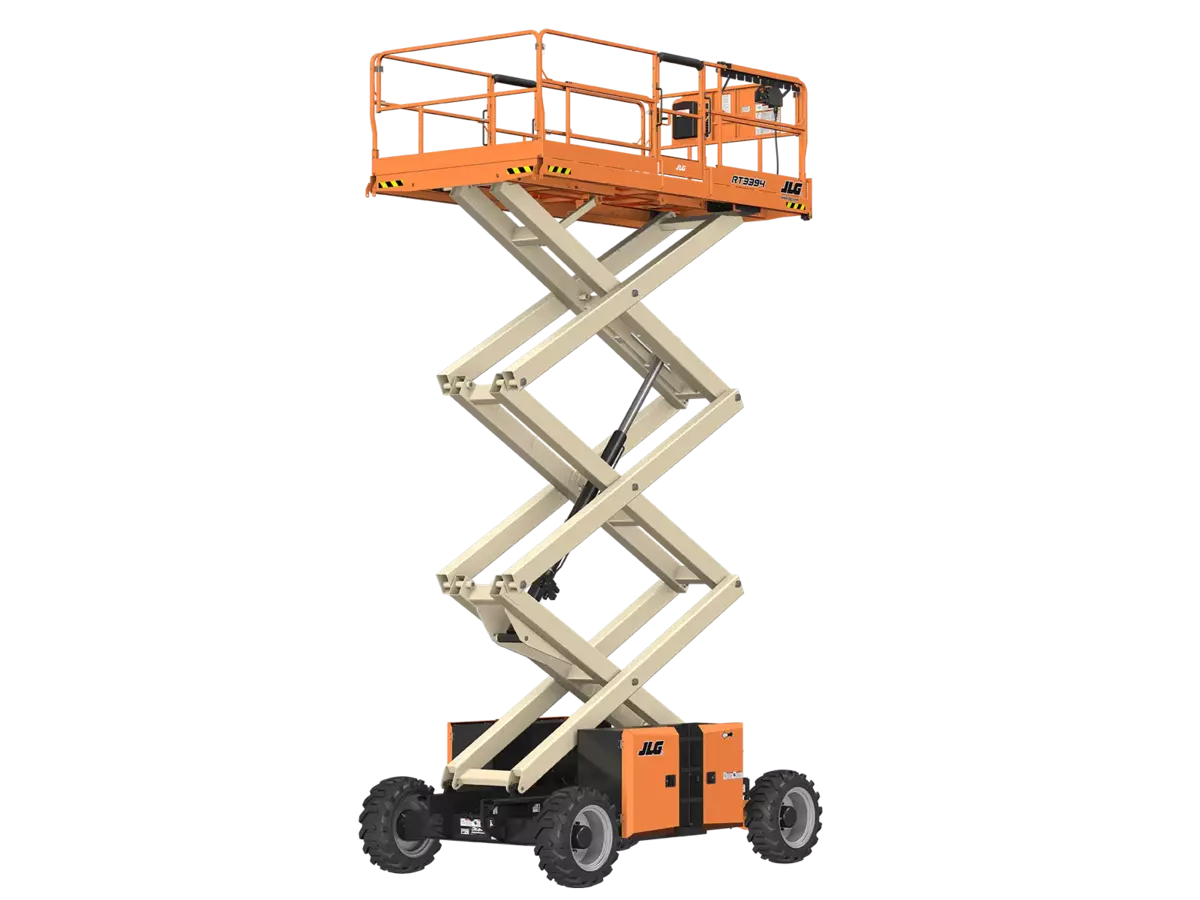

JLG RT3394 RT Electric Scissor Lift – 12.06m Max Working Height
- Max Working Height: 12.06 m / 39.6 ft
- Platform Capacity: 1020 kg / 2250 lb
| Specifications | |
| Max Working Height | 12.06 m |
| Max Platform Height | 10.06 m |
| Platform Length (Extended) | 5.0 m |
| Platform Width | 1.8 m |
| Platform Capacity | 1,020 kg |
| Weight | 5,372 kg |
| Overall Length | 4.9 m |
| Overall Width | 2.3 m |
| Stowed Height (Rails Up) | 2.77 m |
| Stowed Height (Rails Down) | 1.97 m |
| Ground Clearance | 345 mm |
| Power Source | Diesel |
Standard Features
- 110V-AC Receptacle in Platform
- 4-ft (1.22-m) Manual Deck Extension
- 4-Wheel Drive
- 70.5 x 149.8-in (1.8 x 3.8-m), All Steel Platform with Aluminum Deck
- Adjustable, Removable Platform Control Station
- All Motion Alarm
- Automatic Transmission
- ClearSky Smart Fleet™ Hardware (CS550)
- Fold-Down Handrails
- Horn
- LED Motion/Amber Beacon (CS550)
- Oscillating Axle
- Proportional Drive/Lift Up/Lift Down
- Self-Closing Gate
- Three-speed Drive Select
- Tilt Light and Alarm
