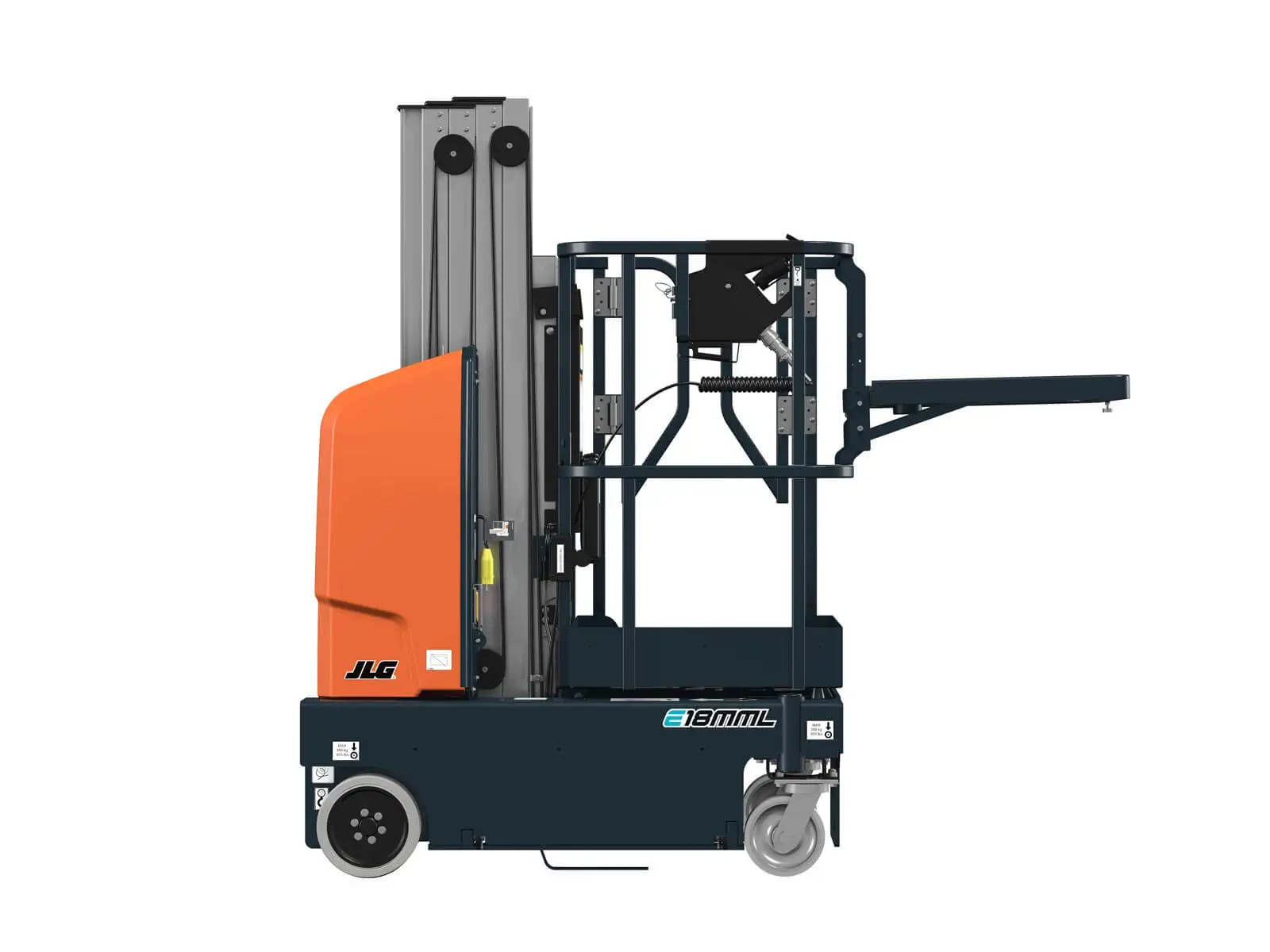

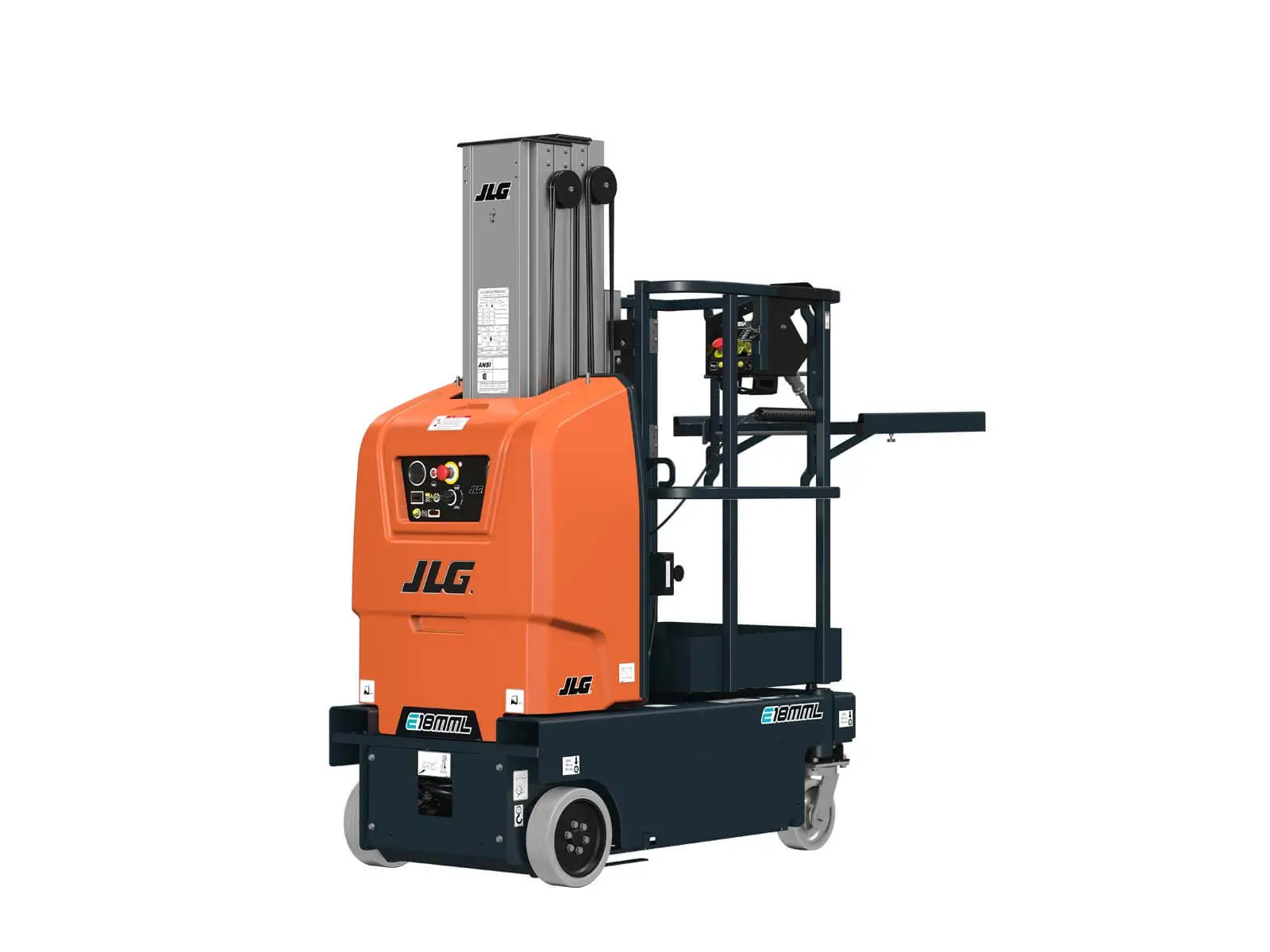

JLG E18MML DRIVEABLE VERTICAL LIFT
Key Specs
- Platform Height: 5.49 m / 18 ft
- Machine Width: 0.76 m / 2 ft 6 in.
Key Features
- Designed With the Operator in Mind: Features point-and-go caster steering, familiar controls, ergonomic joystick and ease of entry/exit from platform
- Lightweight and Compact Footprint: Work on sensitive flooring and access tight spaces with high transportability
- Increased Productivity: Experience longer-running batteries and optional platforms, trays and accessories
- Efficient Serviceability: Quickly access key, known scissor components and rely on durable mast protection to maximize uptime
- Ideal for Maintenance Applications: Complete cleaning, electrical work, facility maintenance and more
| Dimensional Data | |
| Ground Clearance | 0.06 m / 3 in. |
| Ground Entry Height | 0.47 m / 1 ft 7 in. |
| Machine Height | 1.98 m / 6 ft 6 in. |
| Machine Length | 0.66 m / 2 ft 2 in. |
| Machine Width | 0.76 m / 2 ft 6 in. |
| Occupant Capacity | 1 |
| Platform Height | 5.49 m / 18 ft |
| Tyre Size | 8-in / 10 x 3-in Non Marking |
| Wheel Size – Front Caster | 8-in |
| Wheel Size – Rear | 10 x 3-in |
| Reach Specifications | |
| Platform Height | 5.49 m / 18 ft |
| Working Height | 7.32 m / 24 ft |
| Performance Data | |
| Drive Speed – Platform Elevated | 0.80 km/h / 0.5 mph |
| Drive Speed – Platform Lowered | 4.02 km/h / 2.5 mph |
| Drive System | 4 Brush Direct Electric Drive (Planetary Gear) |
| Gradeability | 30 % |
| Maximum Drive Height | 5.49 m / 18 ft |
| Platform Capacity | 181.44 kg / 400 lb |
| General Specifications | |
| Machine Weight | 884.51 kg / 1950 lb |
| Machine Weight | 884.51 kg / 1950 lb |
| Power Source | |
| Batteries | 220AH 6V FLA (4) |
