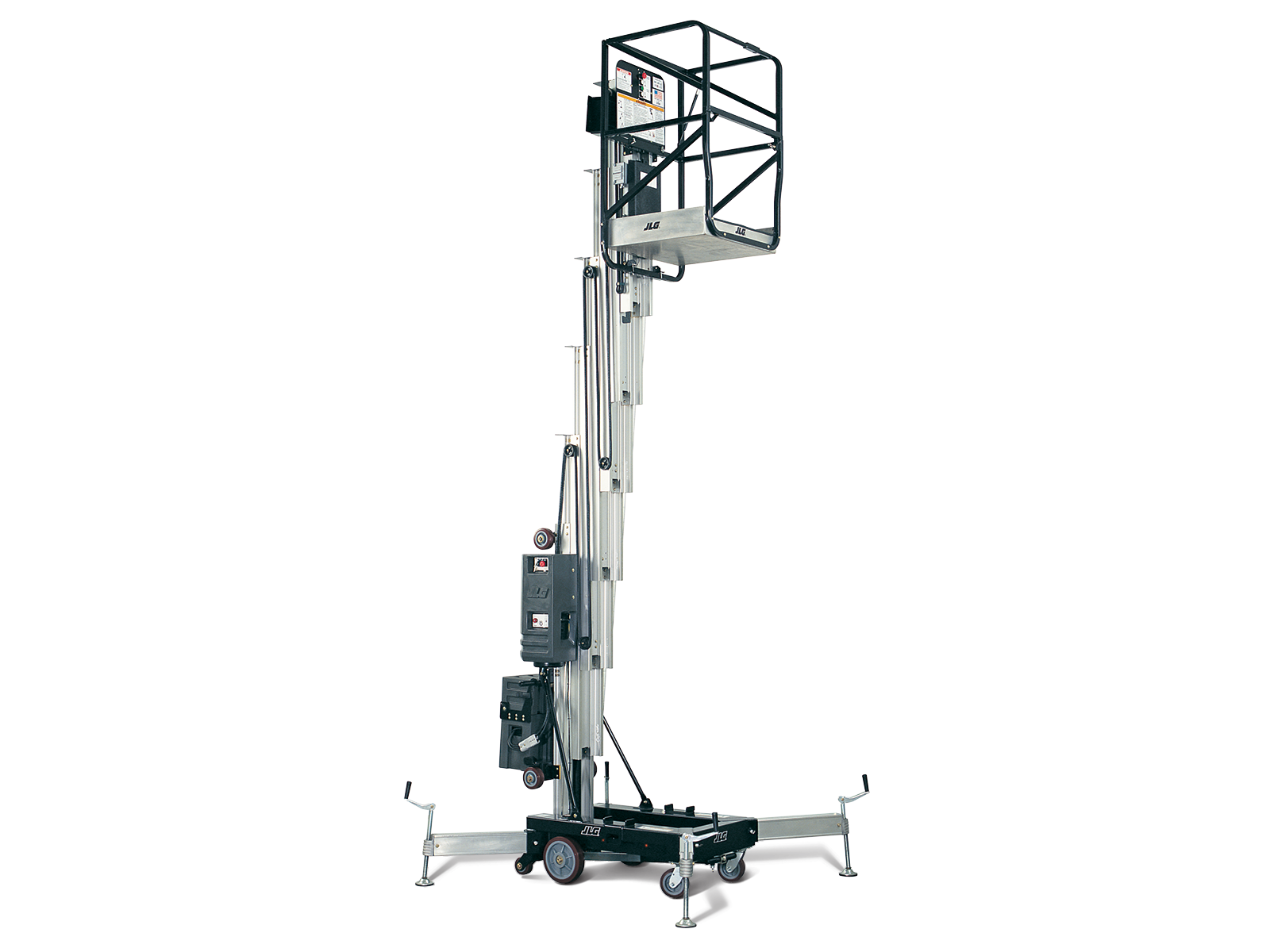

JLG 25AM Vertical Lift
The AM Series (AccessMaster®) is easily portable, offers up to 160 kg (350 lb) platform capacity and is ideal for many uses including industrial, maintenance, entertainment and institutional. Platform heights range from 6.15 m (20 ft) to 12.49 m (41 ft), allowing work to be done up to 14.32 m (47 ft).
Key Specs
- Platform Height: 7.67 m / 25.2 ft
- Machine Width: 0.74 m / 2.4 ft
Key Features
- Most rigid mast in the industry for operator comfort and stability
- Six-wheel design for improved manoeuverability
- Long battery duty cycles and an automatic charger for more productivity
| Dimensional Data | |
| Wheel Size – Front Caster | 15 x 5 cm |
| Ground Entry Height | 0.48 m / 1 ft 7 in. |
| Machine Height | 1.97 m / 6.5 ft |
| Machine Length | 1.24 m / 4.1 ft |
| Machine Width | 0.74 m / 2.4 ft |
| Outrigger Footprint Length | 1.73 m / 5.7 ft |
| Outrigger Footprint Width | 1.57 m / 5.2 ft |
| Platform Dimension A | 0.66 m / 2.2 ft |
| Platform Dimension B | 0.66 m / 2.2 ft |
| Platform Height | 7.67 m / 25.2 ft |
| Wheel Size – Rear | 25 x 5 cm |
| Reach Specifications | |
| Platform Height | 7.67 m / 25.2 ft |
| Working Height | 9.67 m / 31.7 ft |
| Performance Data | |
| Outriggers Up Max Lift Height | 7.65 m / 25.1 ft |
| Outriggers or Stabilizers | Yes |
| Platform Capacity | 160 kg / 352.7 lb |
| General Specifications | |
| Machine Weight-AC | 374 kg / 824.5 lb |
| Machine Weight-DC | 410 kg / 903.9 lb |
- Most rigid mast in the industry for operator comfort and stability
- Six-wheel design for improved manoeuverability
- Long battery duty cycles and an automatic charger for more productivity
