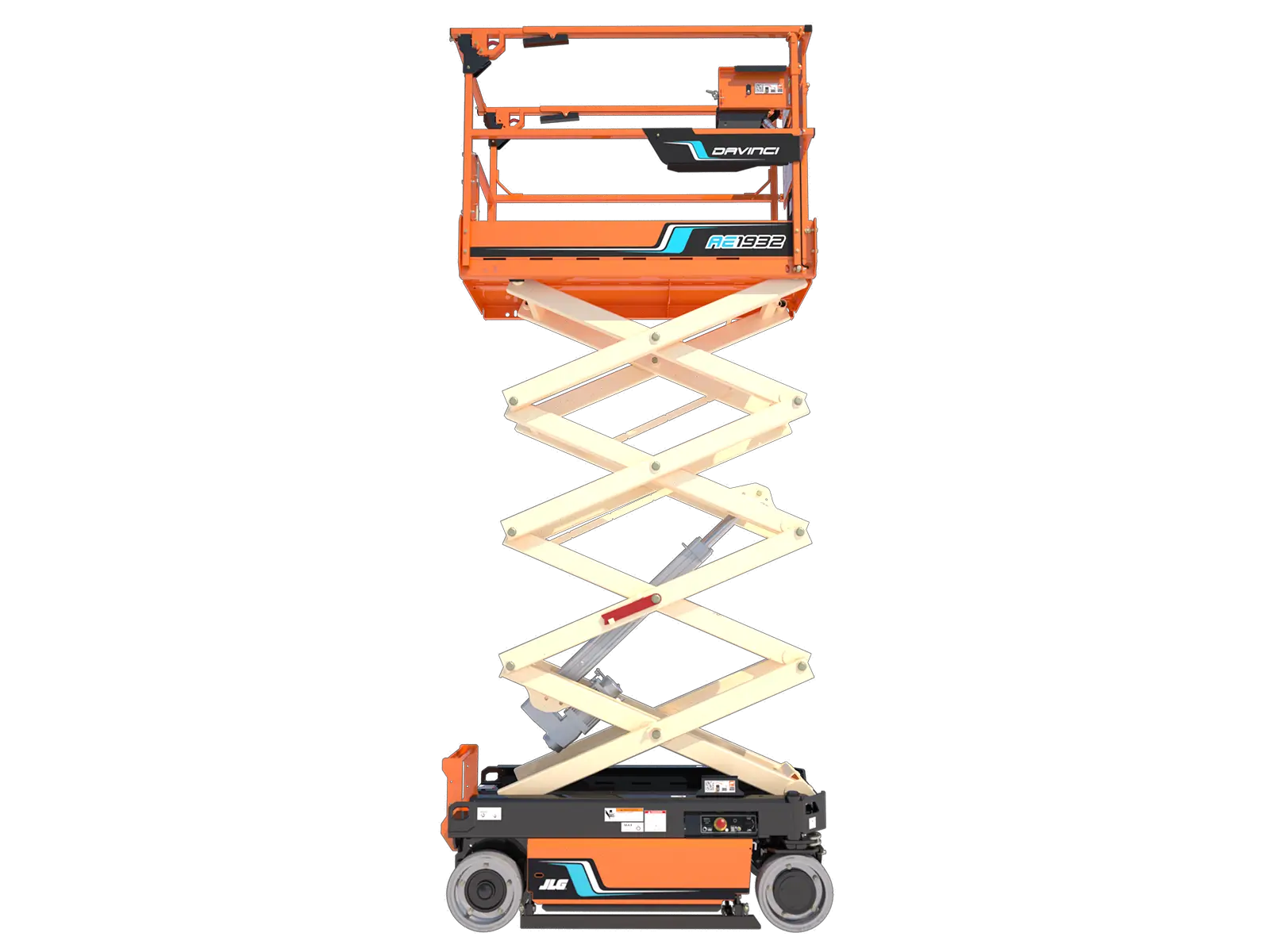

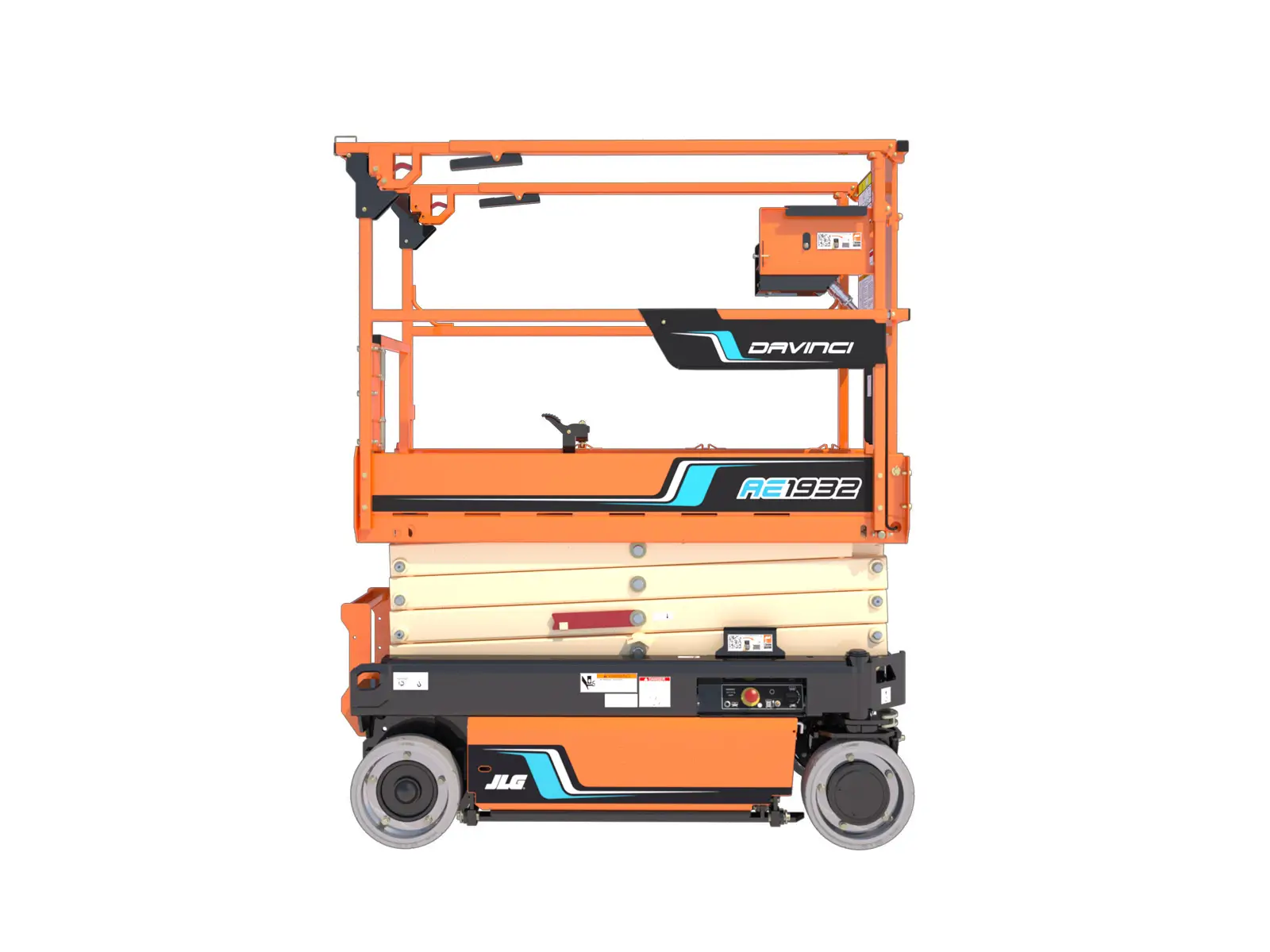

JLG AE1932 Electric Scissor Lift – 7.8m Max Working Height
- Max Working Height: 7.62 m | 25 ft
- Max Platform Capacity: 275 kg | 606 lb
| Specifications | |
| Max Working Height | 7.8 m |
| Max Platform Height | 5.8 m |
| Overall Length | 1.70 m |
| Overall Width | 0.81 m |
| Stowed Height | 1.63 m – 2.10 m |
| Extension length | 0.91 m |
| Platform Capacity | 275 kg |
| Weight | 1565 kg |
| Ground Clearance | 70 mm |
Standard Features
- Zero leak points
- USB Charger & Phone Holder
- CAN-Enabled Charger
- Load Sensing System
- Self-Closing Gate
- Proportional Controls
- AC Electric Drive
- Battery Condition Indicator
- AC Receptacle in Platform
- All Motion Alarm
- 650W CAN-Charger (3.5hr full charge)
- Horn
- Hourmeter
- Tilt Alarm and Light
- Lanyard Attach Points
- Movable, Removable Platform Control
- Nickel Plated Pins
- Lubrication Free Scissor Arm Bushings
- Scissor Maintenance Prop
- Active Pothole Protection System
- Lifting and Tie Down Points
- Fork Lift Pockets
- Manual Descent Cable
- Foot-Actuated Deck Extension
- Steel Drop-Down Doors
- Variable Tilt Visual Zone Indicator
- Diamond Tread Steel Deck
- Greaseless Kingpin Joints
- Analyzer Port for Diagnostics
- Dynamic Braking
- Removable Ladder
- ANSI A92.20 Compliant
- Next-Gen Analyzer Used via Smart Device
- Electric Brake Release
- Quick Charge – 5 min = 100ft + on Truck
- JLG Mobile Control
- Drive Motor Covers
