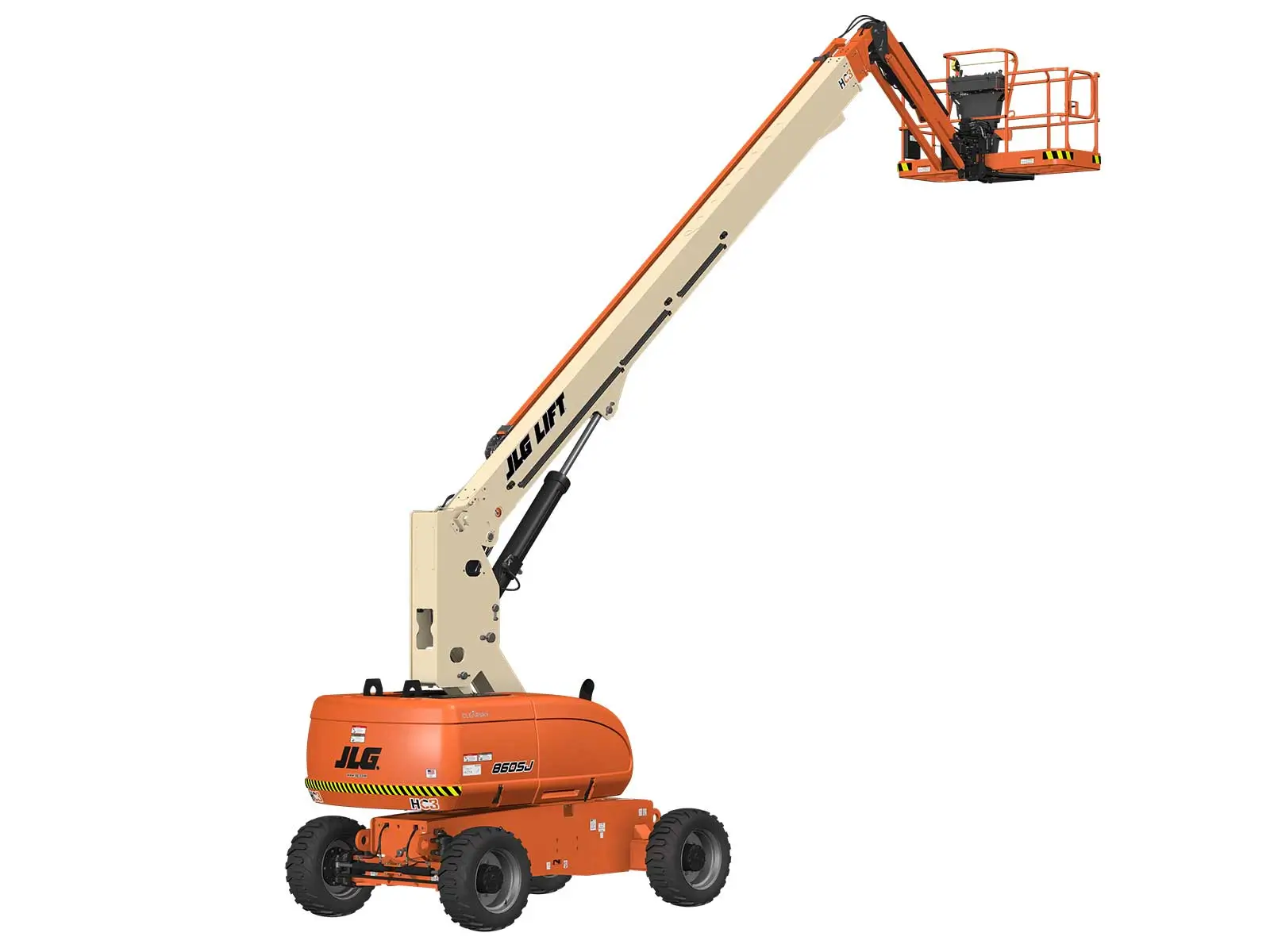

JLG 860SJ HC3 – 28.2m Max Working Height Boom lift
Diesel Powered Telescopic Boom Lift
Key Specs
- Max Working Height: 28.2 m / 92.6 ft
- Platform Capacity: 230 kg ~ 454 kg / 507 lb ~ 1000 lb
| Specifications | |
| Max Working Height | 28.21 m |
| Max Platform Height | 26.21 m |
| Max Outreach (horizontal) | 23.42 m |
| Platform Size | 0.91 x 2.44 m |
| Max Platform Capacity | 454 kg |
| Weight | 17,275 kg |
| Power Source | Diesel Deutz D2011LO4 Tier 4i (49 hp 36.4 kw) |
| Stowed Length | 12.19 m |
| Stowed Width | 2.49 m |
| Stowed Height | 3.05 m |
| Ground Clearance | 0.28 m |
Additional information
| Brand |
|---|
