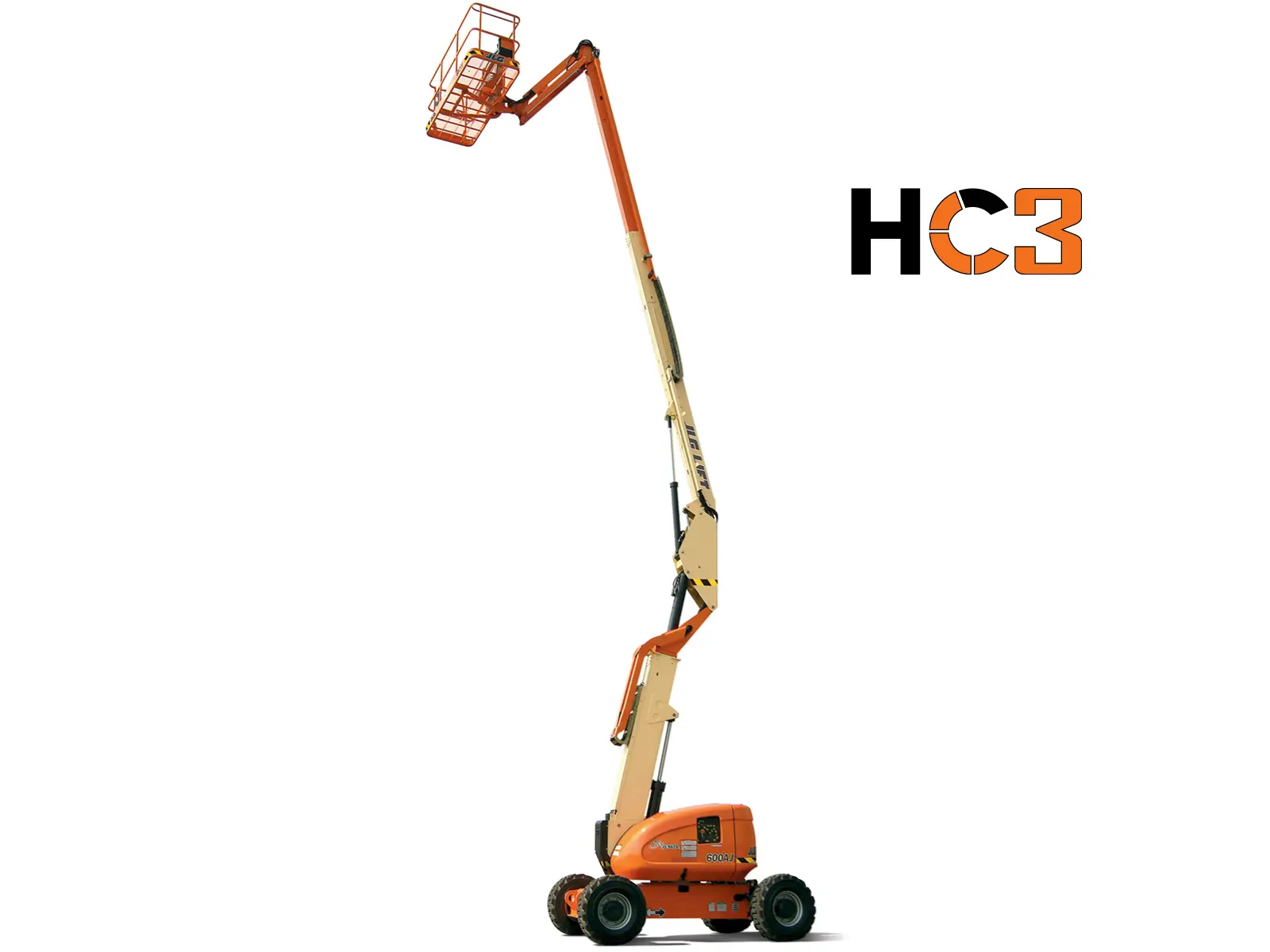

JLG 600AJ HC3 – 20.3m Max Working Height Boom lift
Diesel Powered Articulating Boom Lift
Key Specs
- Max Working Height: 20.3 m / 66.6 ft
- Max Platform Capacity: 454 kg / 1000 lb
| Specifications | |
| Max Working Height | 20.3 m |
| Max Platform Height | 18.3 m |
| Max Outreach (horizontal) | 12.37 m |
| Platform Size | 0.91 x 2.44 m |
| Max Platform Capacity | 341 kg |
| Weight | 11,819 kg |
| Power Source | Diesel Deutz D2011L04 49 hp 36.4 kw |
| Stowed Length | 9.14 m |
| Stowed Width | 2.48 m |
| Stowed Height | 2.58 m |
| Ground Clearance | 0.29 m |
• Oscillating Axle
• 180 Degree Hydraulic Platform Rotator
• 110V-AC Receptacle in the Platform
• 5 Degree Tilt Alarm/Indicator Light
• Swing-Out Engine Tray
• 12V-DC Auxiliary Power
• Hourmeter
• Horn
• Control ADE® System
• Proportional Controls
• Gull-Wing Engine Hood
• LED Light Panel at Platform and Ground
Control Consoles
• Status Light Panel*
• Lifting/Tie Down Lugs
• All Motion Alarm
• Glow Plugs (Diesel Engines)
• Load Sensing System
• SkyGuard SkyLine™
