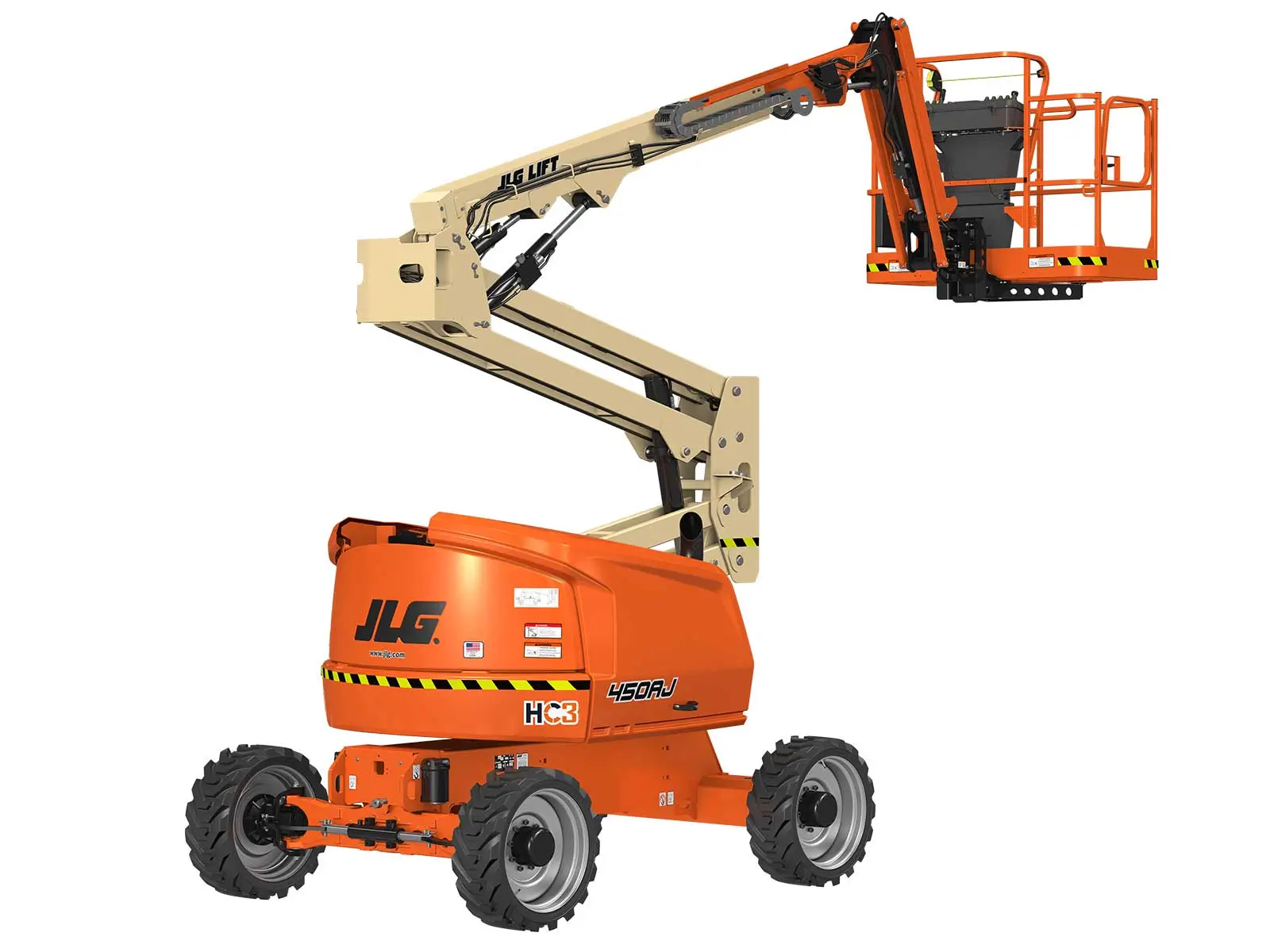

JLG 450AJ HC3 - 15.7m Max Working Height Boom lift

JLG 450AJ HC3 – 15.7m Max Working Height Boom lift

Key Specs

  • Max Working Height: 15.72 m / 51.6 ft
  • Max Platform Capacity: 454 kg | 1000 lb

Download Specs Sheet

Compare Key Specs
Categories: , , Tag:
Specifications
Max Working Height  15.72 m
Max Platform Height  13.72 m
Max Outreach (horizontal)  7.62 m
Platform Size  0.76 x 1.83 m
Max Platform Capacity  454 kg
Weight  7,507 kg
Power Source  Diesel Kubota WG2503 61 hp 45.5 kW
Stowed Length  6.57 m
Stowed Width  2.35 m
Stowed Height  2.27 m
Ground Clearance  0.41 m

• 4-ft 1-in (1.24-m) Articulating Jib
• 5 Degree Tilt Alarm/Indicator Light
• 12V-DC Auxiliary Power
• 110V-AC Receptacle in the Platform
• Cast Aluminum Control Box
• ClearSky Smart Fleet™ Hardware (CS550)**
• Control ADE® System
• Four-Wheel Hydrostatic Drive
• Gull-Wing Turntable Hoods
• Horn
• Hour meter
• Improved Multi-Function Controls
• LED Motion/Amber Beacon (CS550)**
• Lifting/Tie Down Lugs
• Load Sensing System
• Motion Alarm
• Oscillating Axle
• Platform Console Machine Status Light Panel
• Proportional Controls
• SkyGuard SkyLine™
• Swing-Out Engine Tray
