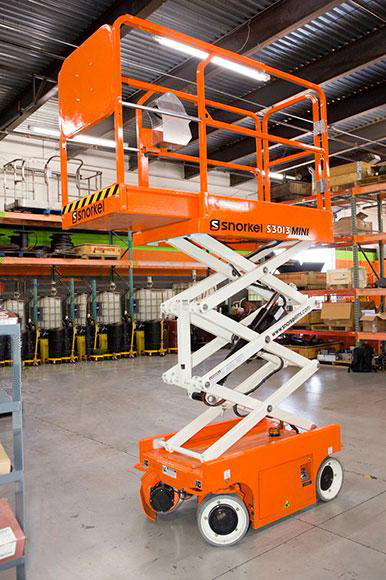

Snorkel S3013 Mini Electric Scissor Lift – 5.79m Max Working Height
SALE PACKAGE!
S3013 Mini + PT20 Trailer (See Specs)
Enquire Now – Simply fill out the request for a quote below!
Key Specs
- Max Working Height: 5.79 m | 19 ft
- Max Platform Capacity: 272 kg | 600 lb
| Specifications | |
| Max Working Height | 5.79 m |
| Max Platform Height | 3.96m |
| Overall Length | 1.44 m |
| Overall Width | 0.76 m |
| Stowed Height | 1.85 m |
| Extension length | 0.61 m |
| Platform Capacity | 272 kg |
| Weight | 793.7 kg |
| Ground Clearance | 60 mm |
Standard Features
- Fully electric drive
- Fully electric steer
- 5″ inside turning radius
- No hydraulic hoses
- Roll-out deck extension with dual locks
- Non-marking tires
- Swing-out service trays
- Descent alarm
- All motion alarm
- 2 persons indoors
- 1 person outdoors

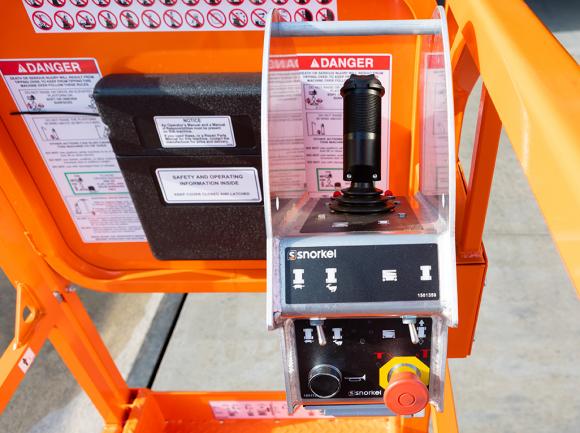

- Proportional controls, including descent
- Power line to platform
- Hour meter & on-board diagnostics display

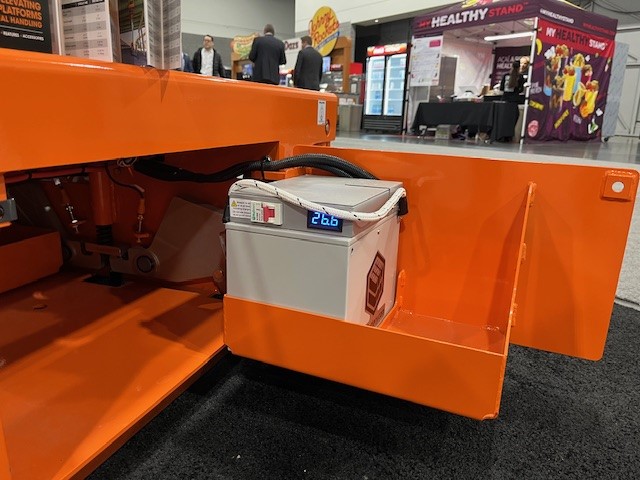

- Integrated battery charger
- Battery condition indicator
- Platform overload system
- Flashing amber strobe
- ANSI A92.20 compliant
- CSA B354.6 compliant
- Largest tires / wheels in its class
- Heavy-duty spindles and steering mechanism

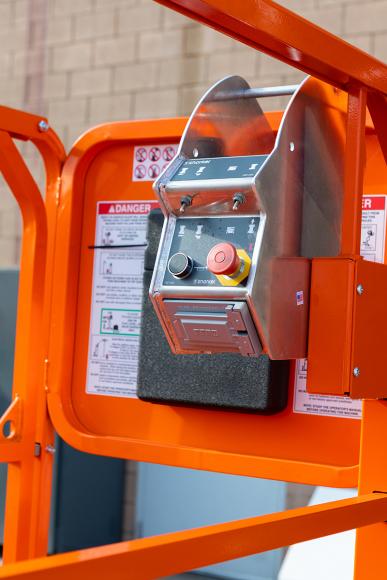

- Robust aluminum fixed control box
- Crane & forklift points
- Lanyard attachment points
- 2 year parts & labor, 5 year structural warranty
- 5 year battery warranty
Additional information
