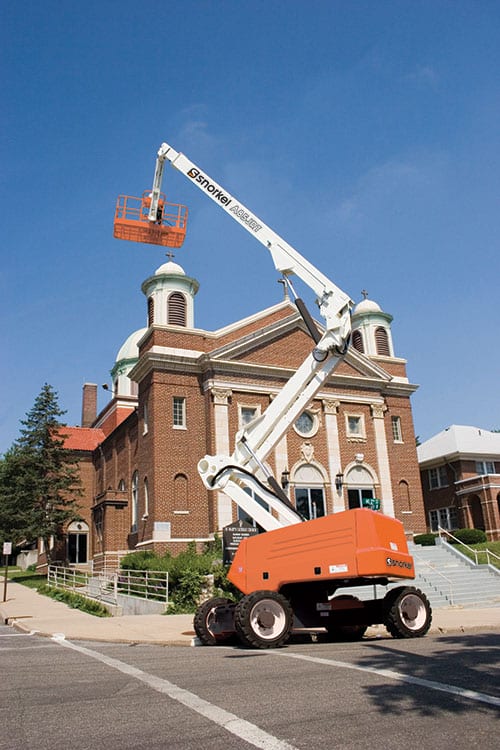

Snorkel AB85J – 27.7m Max Working Height Boom lift
Diesel Powered Articulating Boom Lift
Key Specs
- Max Working Height: 27.7 m | 90.9 ft
- Platform Capacity: 227 kg | 500 lb
Download Specs Sheet
| Specifications | |
| Max Working Height | 27.7 m |
| Max Platform Height | 25.7 m |
| Max Outreach (horizontal) | 18.8 m |
| Platform Size | 0.91 x 2.44 m |
| Max Platform Capacity | 227 kg |
| Weight | 17,500 kg |
| Power Source | Diesel Kubota V2403 48kW/65hp |
| Stowed Length | 12.5 m |
| Stowed Width | 2.6 m |
| Stowed Height | 3.0 m |
| Ground Clearance | 0.33 m |
- Snorkel Guard™ secondary guarding system
- Hydraulic platform rotation
- Four wheel drive, steer and crab steer
- Foam filled lug tires
- Proportional drive, lift & swing, extend & rotate
- Drive motion alarm
- Flashing amber light
- Horn
- Dual lanyard attachment points
- Power line to platform
- 3.5° tilt alarm
- 2 year parts & labor, 5 year structural warranty
