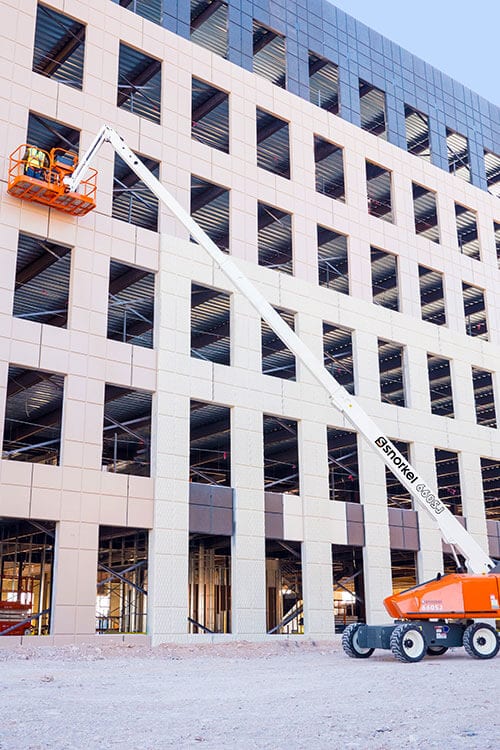

Snorkel 660SJ – 22m Max Working Height Boom lift
Diesel Powered Telescopic Boom Lift
Key Specs
- Max. Working Height: 22.0m | 72.2 ft
- Platform Capacity: 272kg | 600 lb
Download Specs Sheet
| Specifications | |
| Max Working Height | 22 m |
| Max Platform Height | 20 m |
| Max Outreach (horizontal) | 17.7 m |
| Platform Size | 0.91 x 2.44 m |
| Max Platform Capacity | 454 kg |
| Weight | 12,982 kg |
| Power Source | Diesel Deutz 55kW (74hp) turbo |
| Stowed Length | 9.2 m |
| Stowed Width | 2.46 m |
| Stowed Height | 2.51 m |
| Ground Clearance | 0.34 m |
- Snorkel Guard™ secondary guarding system
- 1.67m 135º jib
- Oscillating axle (203mm of oscillation)
- Hydraulic platform rotation
- Hydraulic oil cooler
- Four wheel drive
- All proportional controls
- Swing-out engine tray
- Hour meter & on-board diagnostics display
- Power line to platform
- 5° tilt alarm & cut out
- Tilt alarm & cut out
- DC emergency operation
- Tri-entry platform
- Flashing amber light
- Platform overload system
- 2 year parts & labor, 5 year structural warranty
