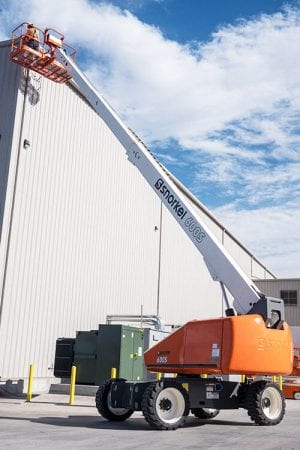

Snorkel 600S – 20.3m Max Working Height Boom lift
Diesel Powered Telescopic Boom Lift
Key Specs
- Max. Working Height: 20.3m | 66.6 ft
- Platform Capacity: 272kg | 600 lb
Download Specs Sheet
| Specifications | |
| Max Working Height | 20.3 m |
| Max Platform Height | 18.3 m |
| Max Outreach (horizontal) | 16 m |
| Platform Size | 0.91 x 2.44 m |
| Max Platform Capacity | 454 kg |
| Weight | 11,176 kg |
| Power Source | Diesel Deutz 55kW (74hp) turbo |
| Stowed Length | 9.2 m |
| Stowed Width | 2.46 m |
| Stowed Height | 2.51 m |
| Ground Clearance | 0.34 m |
- Snorkel Guard™ secondary guarding system
- Oscillating axle (203mm of oscillation))
- Hydraulic platform rotation
- Hydraulic oil cooler
- Four wheel drive
- All proportional controls
- Swing-out engine tray
- Hour meter & on-board diagnostics display
- Power line to platform
- 5° tilt alarm & cut out
- Tilt alarm & cut out
- DC emergency operation
- Tri-entry platform
- Flashing amber light
- Platform overload system
- 2 year parts & labor, 5 year structural warranty
