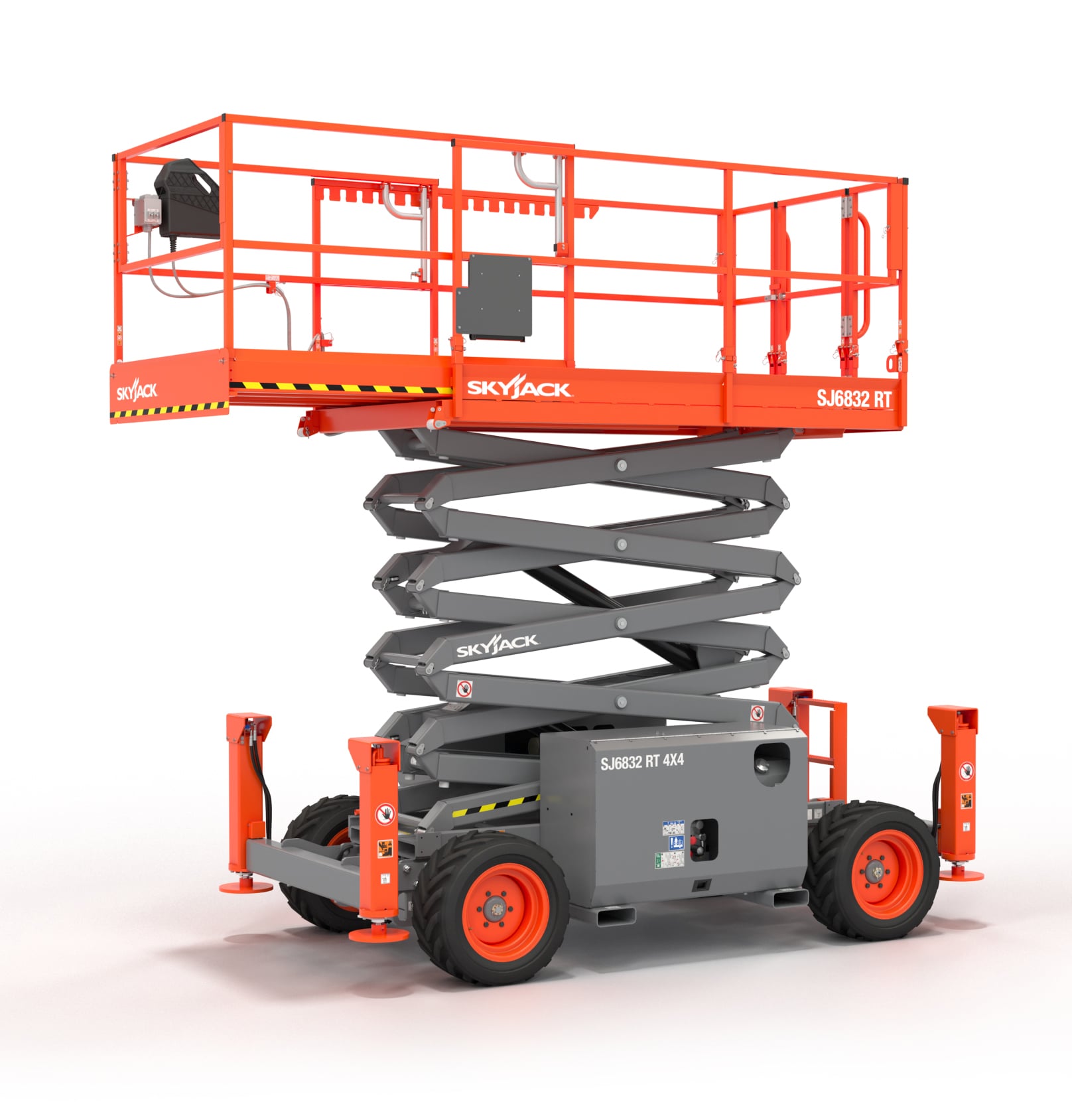

Skyjack SJ6832 RT Scissor Lift – 11.75m Max Working Height
Rough Terrain Scissor Lift
Key Specs
- Max Working Height: 11.75 m / 38.5 ft
- Max Platform Capacity: 454 kg | 1000 lb
| Specifications | |
| Max Working Height | 11.75 m |
| Max Platform Height | 9.75 m |
| Platform Length (Extended) | 4.11 m |
| Platform Width | 1.42 m |
| Platform Capacity | 454 kg |
| Weight | 3,665 kg |
| Overall Length | 3.35 m |
| Overall Width | 1.76 m |
| Stowed Height (Rails Up) | 2.51 m |
| Stowed Height (Rails Down) | 1.75 m |
| Ground Clearance | 200 mm |
| Power Source | Diesel |
Standard Features
- Drivable at full height
- Relay based control system
- Overload sensing system
- Standard Skyjack colour coded and numbered wiring
- Shroud style, impact resistant composite control box with
- extended cable
- Proportional controls for drive and lift functions
- Tilt alarm (4.5° x 2.5°) with drive and lift cut-out
- Lift up side doors for easy access
- Kubota diesel engine
- ECOSTART anti-engine idle
- 90° Swing out engine tray
- Crossover symmetrical 4WD
- Non-marking grip lug foam-filled tires
- Up to 50% Gradeability (SJ6826 RT)
- Multiple spring applied hydraulic released brakes
- All motion audible alarm
- Lowering warning system
- 1.52m Roll out extension deck
- Fold down hinged railings
- Full height spring hinged entry gate
- Lanyard attachment points
- Wiring for AC outlet at platform
- Forklift pockets and tie down/lift lugs
- Emergency lowering system
- Independent/automatic levelling outriggers
- Flashing light
- Operator horn
- Telematics ready
