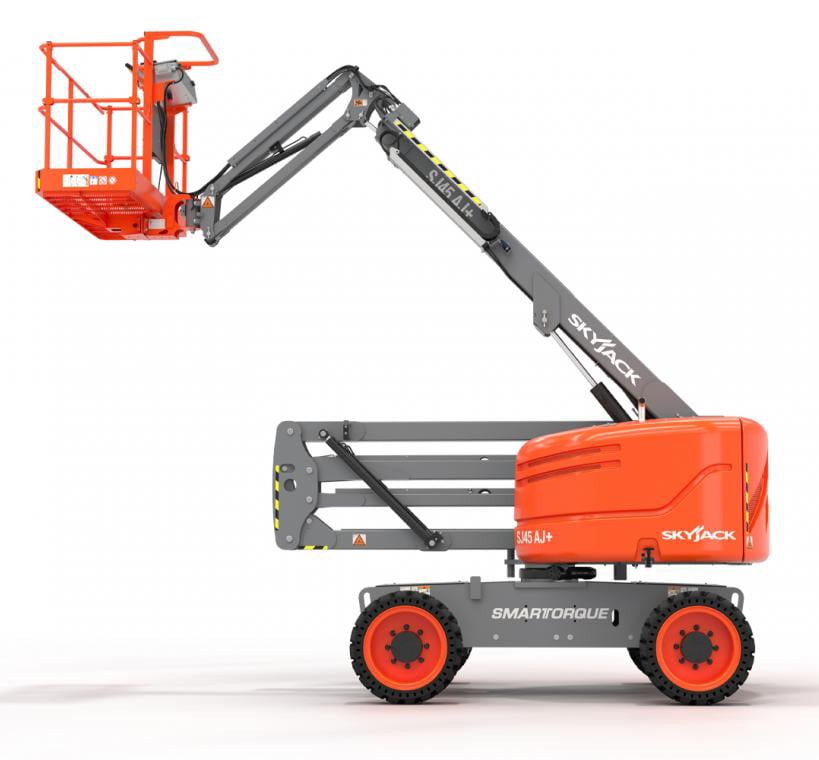

Skyjack SJ45 AJ Plus – 15.7m Max Working Height Boom lift
Diesel Powered Articulating Boom Lift
Key Specs
- Max Working Height: 15.72 m / 51.5 ft
- Max Platform Capacity: 300 kg | 661 lb
| Specifications | |
| Max Working Height | 15.72 m |
| Max Platform Height | 13.72 m |
| Max Outreach (horizontal) | 6.93 m |
| Platform Size | 0.76 x 1.83 m |
| Max Platform Capacity | 300 kg |
| Weight | 5,075 kg |
| Power Source | Diesel Kubota D1305 18.5 KW (24.8 HP) |
| Stowed Length | 6.0 m |
| Stowed Width | 2.29 m |
| Stowed Height | 2.06 m |
| Ground Clearance | 0.39 m |
■ EASYDRIVE™ Direction sensing drive and steer controls
■ SKYRISER™ True vertical rise
■ AXLDRIVE™ Axle-based 4WD system
■ ELEVATE Live
■ Operator controlled locking rear differential and limited slip
front differential
■ Oscillating steer axle
■ Drivable at full height
■ 40% Gradeability
■ Wet disc SAHR brakes (rear axle)
■ Grip lug solid non-marking tyres
■ Dual module control system with SKYCODED™ colour coded
and numbered wiring
■ SMARTORQUE™ Kubota D1305 diesel engine
■ ECOSTART (Stop-Start system)
■ Swing up cowlings for easy access
■ Proportional controls
■ 300kg capacity
■ 0.76 x 1.83 m Platform
■ Bolt-in platform railings
■ Lanyard attachment points
■ Dual-entry sliding mid rails
■ Secondary Guarding Electrical (SGE)
■ Overload sensing system
■ Wiring for AC outlet on platform
■ Tilt alarm (5.0° x 5.0°) with drive and lift cut-out
■ Single point emergency lowering
■ 355° Non-continuous turret rotation
■ Tie down/lifting lugs
■ Hourmeter
■ Operator horn
■ Lockable power disconnect switch
■ 7.5 kW Generator (Includes hydraulic oil cooler)
■ White noise motion alarm
■ Flashing Light
