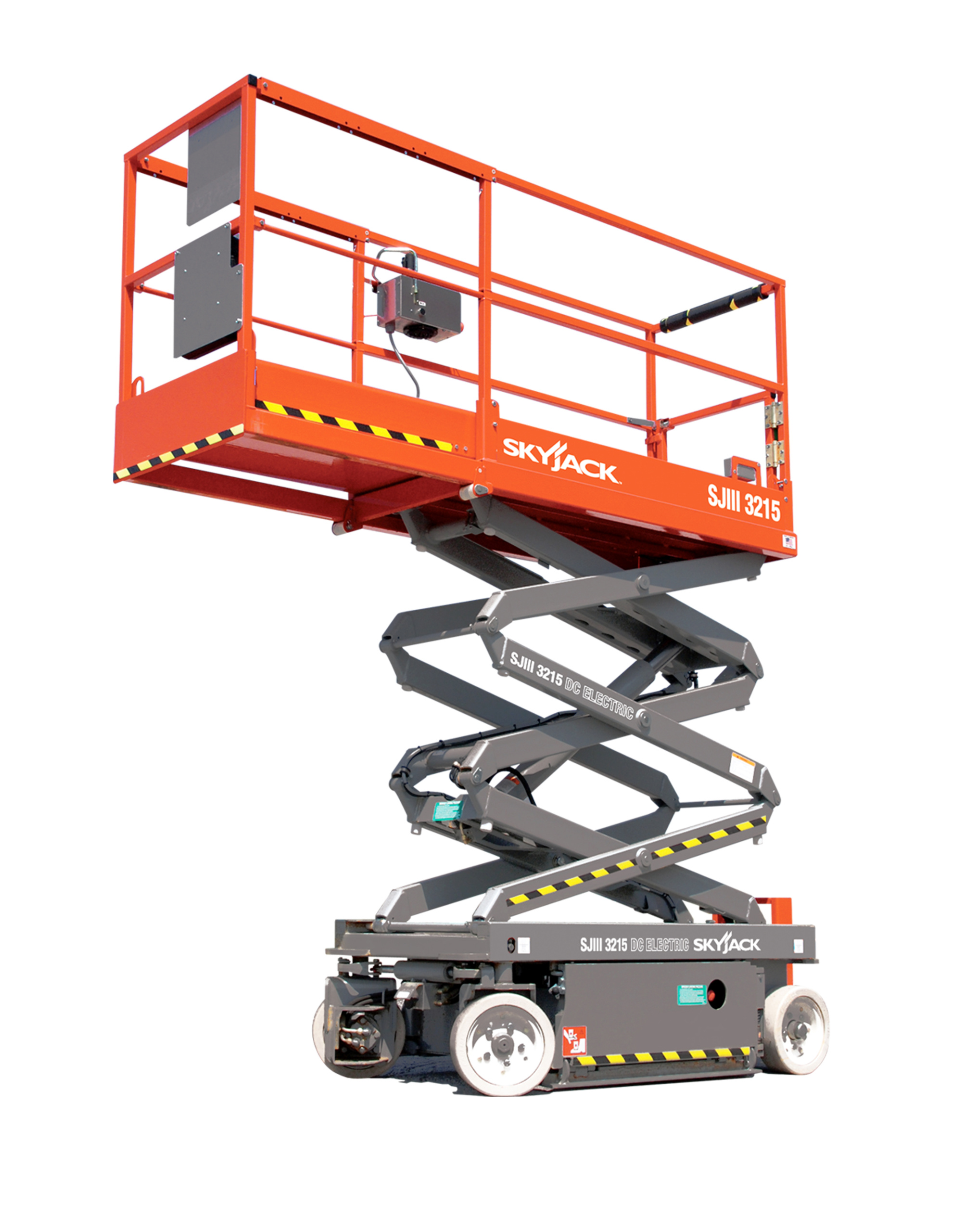

Skyjack SJ3215 Electric Scissor Lift – 6.44m Max Working Height
Electric Scissor Lift
Key Specs
- Max Working Height: 6.44 m / 21 ft
- Max Platform Capacity: 272 kg | 600 lb
| Specifications | |
| Max Working Height | 6.44 m |
| Max Platform Height | 4.44 m |
| Overall Length | 1.80 m |
| Overall Width | 0.81 m |
| Stowed Height | 1.88 m |
| Extension length | 0.84 m |
| Platform Capacity | 272 kg |
| Weight | 1148 kg |
| Ground Clearance | 89 mm |
Standard Features
- Drivable at full height
- Variable speed, front wheel hydraulic drive
- Dual holding brakes
- SKYCODED™ Colour coded and numbered wiring system
- On-board visual interface with diagnostic capabilities
- Shroud style, impact resistant composite control box with
- extended cable
- Proportional controls for drive & lift functions
- Tilt sensor (3.5° x 1.5°)
- 0.91 m Roll out extension deck
- 24V DC Power source
- Low voltage battery protection
- 25% Gradeability
- Solid rubber, non-marking tyres
- Pothole protection system
- Wiring for AC outlet at platform
- Tilt alarm with drive & lift cut-out
- All motion audible alarm
- Lanyard attachment points
- Operator horn
- Forklift pockets and tie down / lift lugs
- Overload sensing system
- Solid railings
- Half height spring hinged entry gate
- Telematics ready
- White noise alarm
- Flashing light
