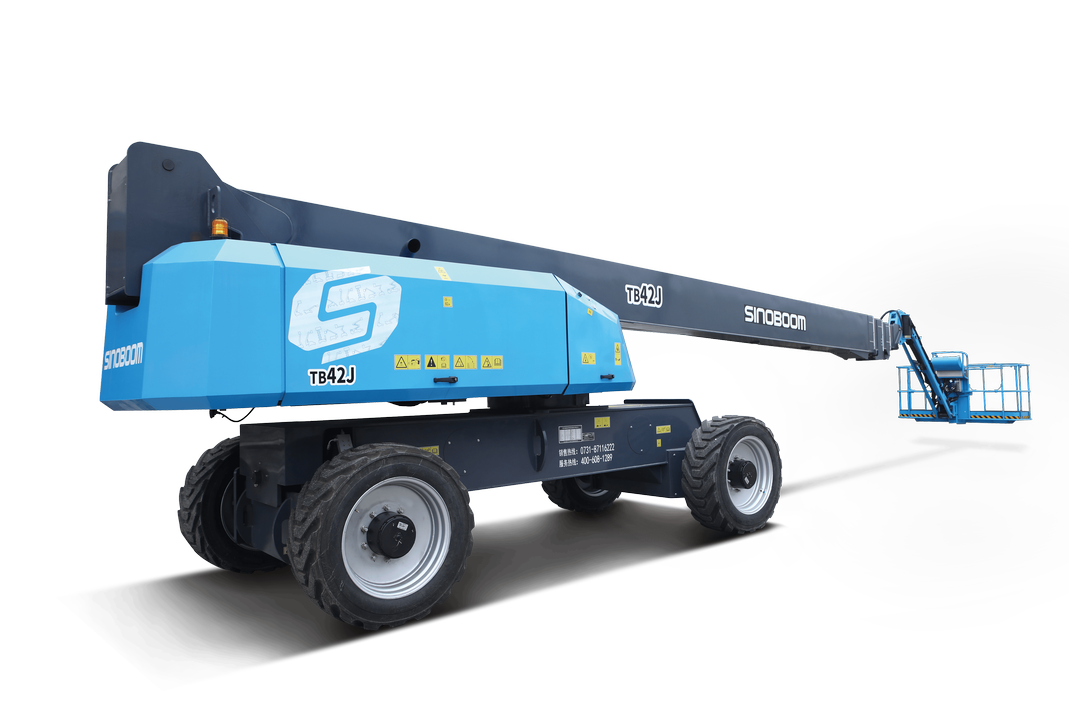

Sinoboom TB42RJ – 43.6m Max Working Height Boom lift
Diesel Powered Telescopic Boom Lift
Key Specs
- Max Working Height: 43.6 m | 143 ft
- Max Platform Capacity: 480 kg | 1058 lb
| Specifications | |
| Max Working Height | 43.6 m |
| Max Platform Height | 41.6 m |
| Max Outreach (horizontal) | 23.8 m |
| Platform Size | 0.91 x 2.44 m |
| Max Platform Capacity | 480 kg |
| Weight | 22,400 kg |
| Power Source | Diesel Cummins, QSF2.8t3TC72, 54 KW |
| Stowed Length | 14.96 m |
| Stowed Width | 2.49 m |
| Stowed Height | 3.15 m |
| Ground Clearance | 0.65 m |
Strong Site Passability Performance
■ Machine features oscillating function, combined with
power 4WD not only makes it perfect to work at uneven
ground, but also greatly improves work efficiency
Precision Performance
■ Proportional control with 3 joysticks, operate with smooth
starting and stopping and precision approach to your
worksite target
■ 7-inch screen features one button’s fault inquiries, easy for
trouble shooting and calibration
High Capacity
■ Leading load capacity of 480kg (1058lbs)/250kg (551lbs)
among the same class in the industry and max.Platform
occupants up to 3 persons make it ideal choice to get job
done easily
